Transfer Case

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

NOTE: Do not hold actuator to support transfer case.
- NOTE: The help of an assistant will be required.

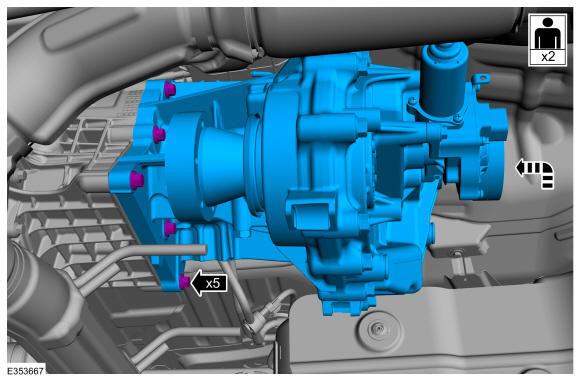

  Position the transfer case to the transmission and onto the output shaft.
- NOTE: Do not reuse the old transfer case-to-transmission bolts.

  Install new transfer case-to-transmission bolts.

  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

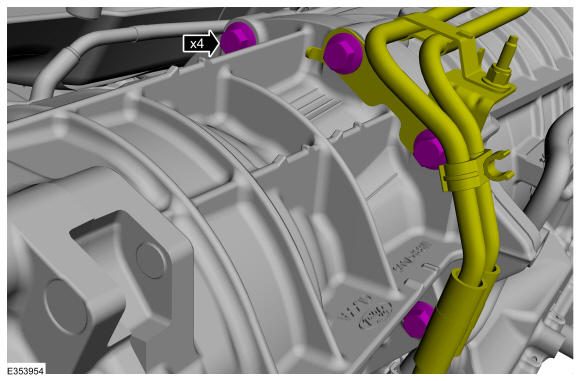

NOTE: Do not reuse the old transfer case-to-transmission bolts.

Install new transfer case-to-transmission bolts.

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the shift motor electrical connector and attach the wiring harness retainer clips to the transfer case.

Courtesy of FORD MOTOR COMPANY
Connect the electrical connector and attach the wiring harness retainer clips to the transfer case.

Courtesy of FORD MOTOR COMPANY
Connect the vent hose to the transfer case.

Courtesy of FORD MOTOR COMPANY
Install the transmission support insulator. Refer to: Transmission Support Insulator .
NOTE: Align the index marks made during removal.

Install the rear driveshaft. Refer to: Rear Driveshaft .
NOTE: Align the index marks made during removal.

Install the front driveshaft. Refer to: Front Driveshaft .
Check the transfer case fluid level. Refer to: Transfer Case Fluid Level Check .
If equipped. Position the skid plate and install the skid plate bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
