Positive Crankcase Ventilation (PCV) Valve: Installation

WARNING: This page is about a different variant/trim than selected.

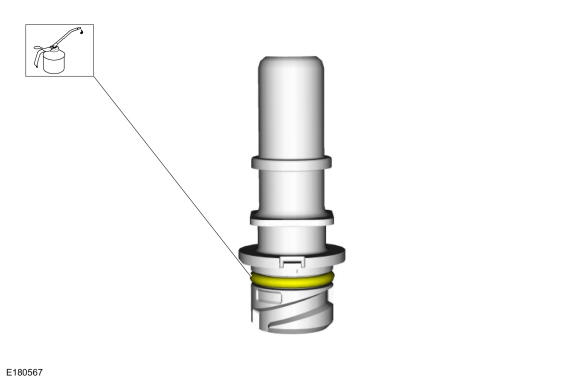

  1. Lubricate the new PCV valve O-ring seal with clean engine oil.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    GFD625679Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
