Exhaust Gas Recirculation (EGR) Valve: Removal
WARNING: This page is about a different variant/trim than selected.
-

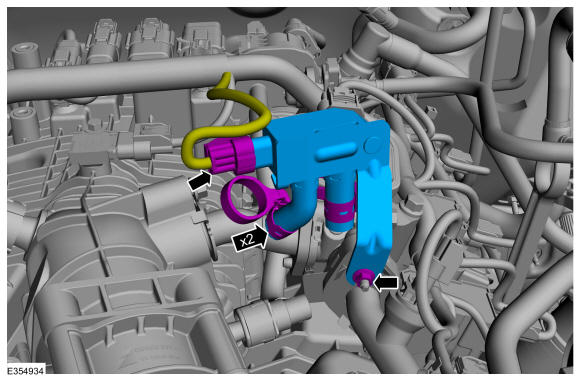

- Disconnect the electrical connector and position aside the wiring harness.
- Loosen the hose clamps.
- Remove the nut and the differential pressure feedback EGR sensor.
-

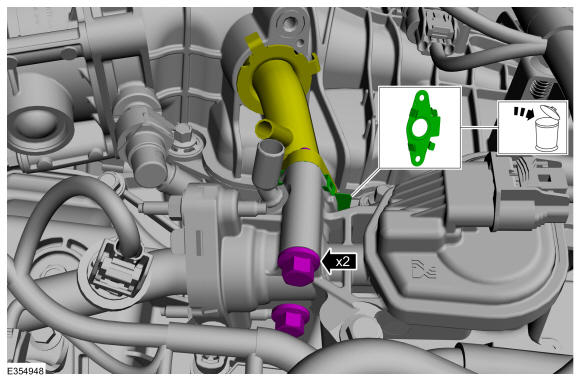

- Remove the EGR valve outlet tube bolts.
- Remove and discard the gasket.
-

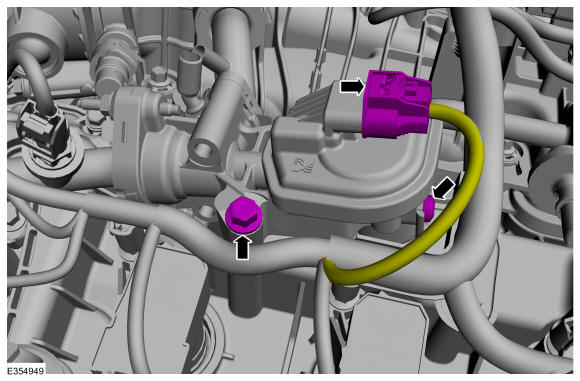

- Disconnect the EGR valve electrical connector and remove the bolt.
- Remove the screw.
-

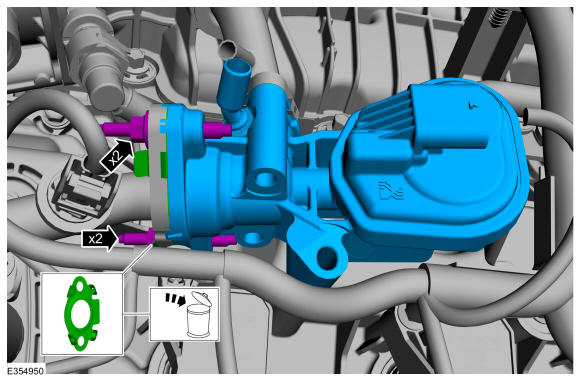

- Remove the studs and nuts.
- Remove and discard the gasket.
- Remove the EGR valve.
