Exhaust Gas Recirculation (EGR) Valve: Installation

WARNING: This page is about a different variant/trim than selected.

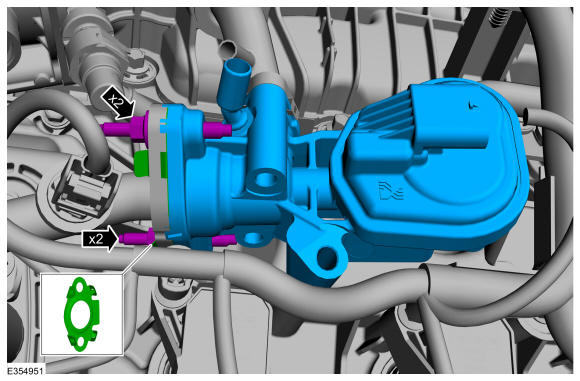

- Install the EGR valve.
- Install the new gasket.
- Install the studs and nuts.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
- Install the screw.
- Connect the EGR valve electrical connector and install the bolt.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

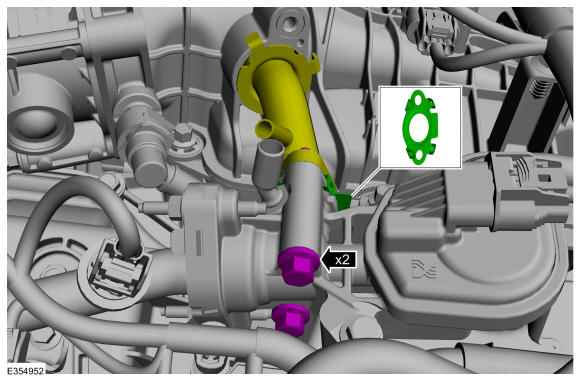

- Install the new gasket.
- Install the EGR valve outlet tube bolts.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
- Install the differential pressure feedback EGR sensor.
  Torque: 71 lb.in (8 Nm)
- Connect the electrical connector.

Courtesy of FORD MOTOR COMPANY
