Exhaust Gas Recirculation (EGR) Outlet Tube: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the EGR valve. Refer to: Exhaust Gas Recirculation (EGR) Valve .

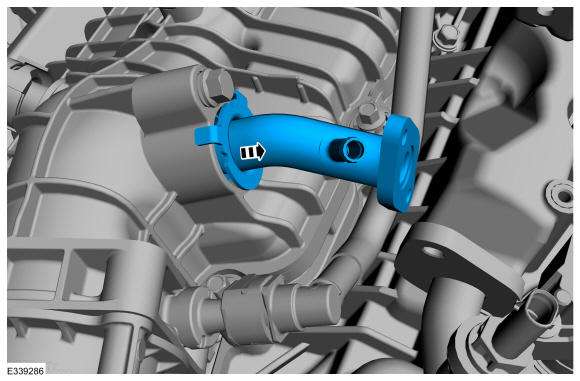

  2. Remove the EGR valve outlet tube.
    GFD625666Courtesy of FORD MOTOR COMPANY

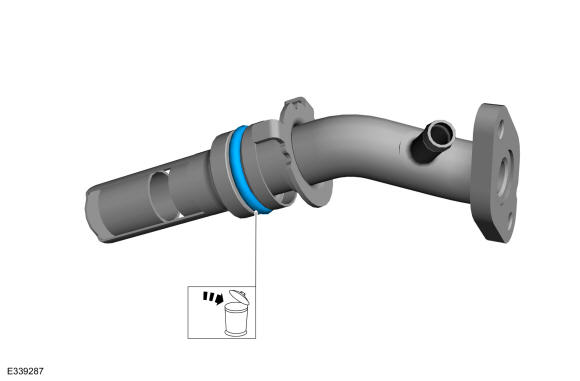

  3. Remove and discard the EGR tube o-ring seal.
GFD625667Courtesy of FORD MOTOR COMPANY
