Exhaust Gas Recirculation (EGR) Outlet Tube: Installation

WARNING: This page is about a different variant/trim than selected.

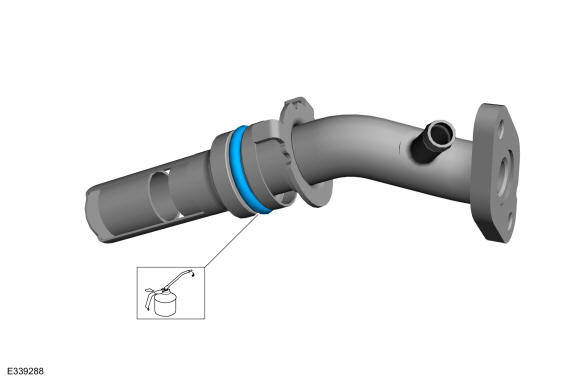

  1. Lubricate the o-ring seal with clean engine oil.
    GFD625668Courtesy of FORD MOTOR COMPANY

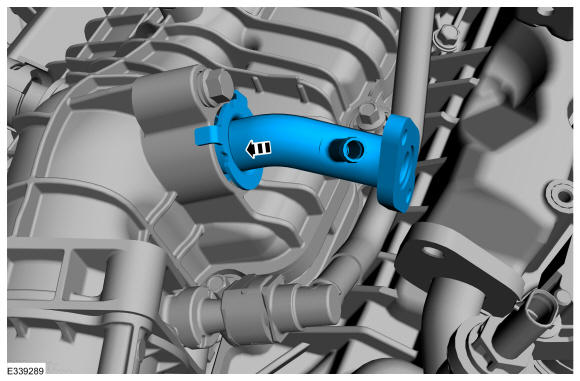

  2. Install the EGR valve outlet tube.
    GFD625669Courtesy of FORD MOTOR COMPANY
  3. Install the EGR valve. Refer to: Exhaust Gas Recirculation (EGR) Valve .
