Exhaust Gas Recirculation (EGR) Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

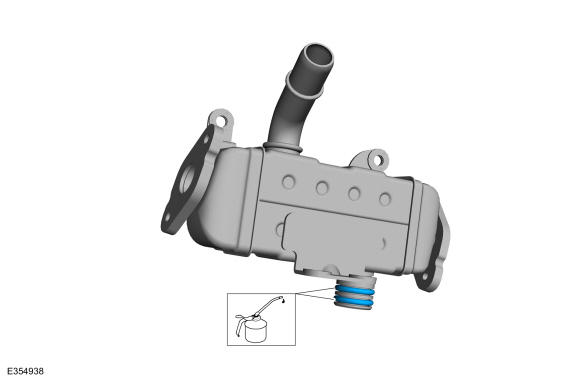

- Lubricate the new EGR cooler O-rings with a small amount of engine coolant.
  Material: Motorcraft® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)
Courtesy of FORD MOTOR COMPANY
- Position the EGR cooler to the water pump.

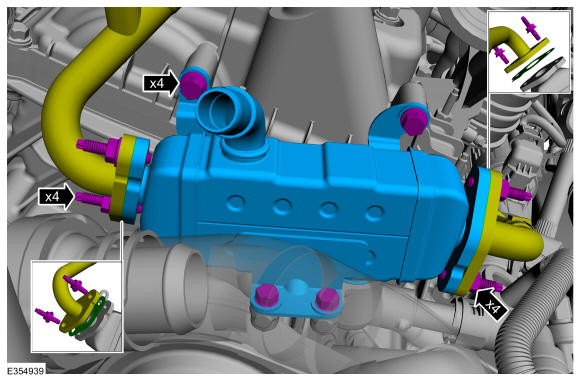

- Install the EGR cooler mounting bolts.
  Torque: 89 lb.in (10 Nm)
- Install the new gaskets and EGR cooler tube studs and nuts.
  Torque: 89 lb.in (10 Nm)
- Install the EGR cooler mounting bolts.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

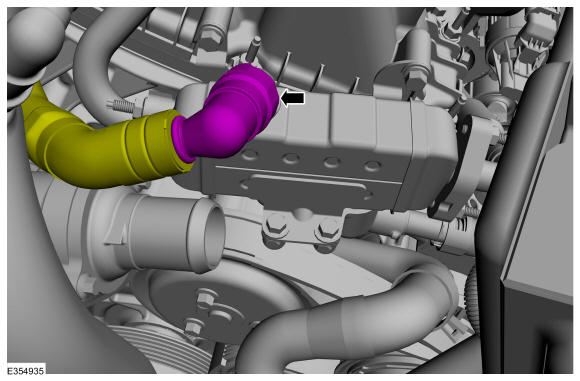

Connect the EGR cooler coolant hose

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
