Exhaust Gas Recirculation (EGR) Cooler Inlet Tube: Installation
WARNING: This page is about a different variant/trim than selected.
-
- Install the new gaskets.

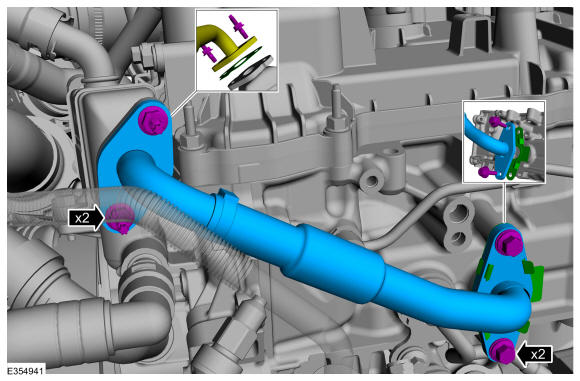

- Install the EGR cooler inlet tube and tighten the fasteners.
Torque: 89 lb.in (10 Nm)
- Install the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
