Crankcase Ventilation Tube: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: Inspect the o-rings and replace if necessary.

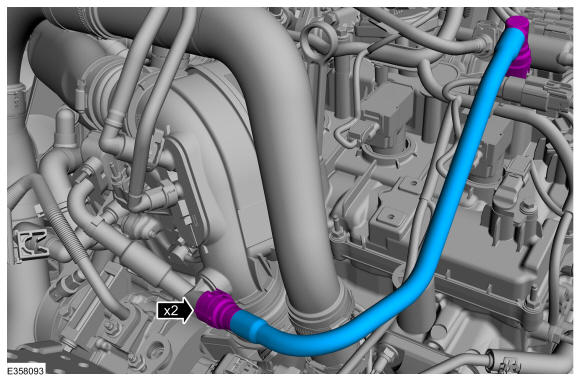

Disconnect the crankcase ventilation tube-quick connect couplings and crankcase ventilation tube. Refer to: Quick Release Coupling .
