Engine Emission Control - Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|

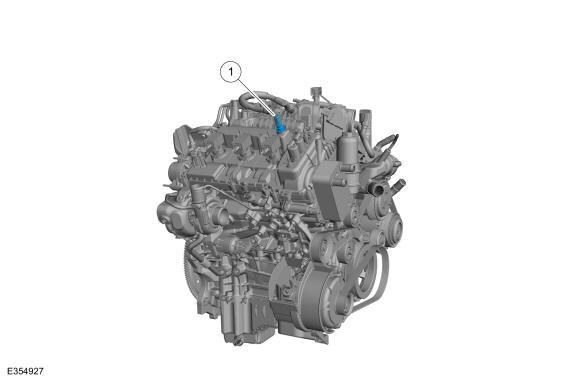

| Item |
Description |
| 1 |
PCV valve |
 Courtesy of FORD MOTOR COMPANY
|

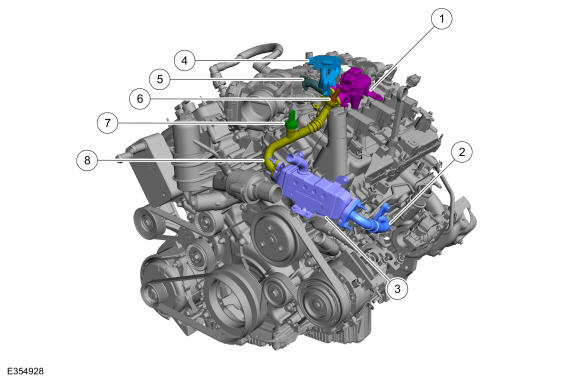

| Item |
Description |
| 1 |
EGR valve. |
| 2 |
EGR cooler inlet tube. |
| 3 |
EGR cooler. |
| 4 |
Differential pressure feedback EGR sensor. |
| 5 |
EGR outlet tube. |
| 6 |
EGR temperature sensor. |
| 7 |
EGR back pressure sensor. |
| 8 |
EGR cooler to EGR valve tube. |
