Valve Cover RH: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
Remove the following items:
1. Air cleaner. Refer to: Air Cleaner .
2. Intake manifold. Refer to: Intake Manifold .
3. Right hand ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
Detach the retainers and position the coolant hoses aside.

Courtesy of FORD MOTOR COMPANY

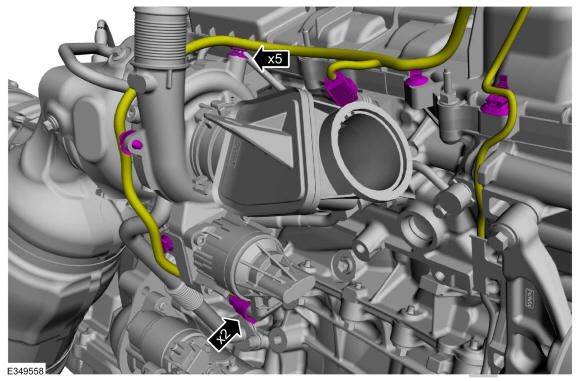

1. Disconnect the wastegate control actuator and oil pressure sensor electrical connectors.
2. Detach the retainers and position the engine wiring harness aside.
Courtesy of FORD MOTOR COMPANY

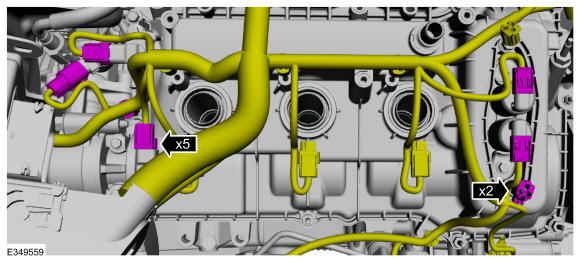

1. Disconnect the engine wiring harness electrical connectors.
2. Detach the retainers and position the engine wiring harness aside.
Courtesy of FORD MOTOR COMPANY

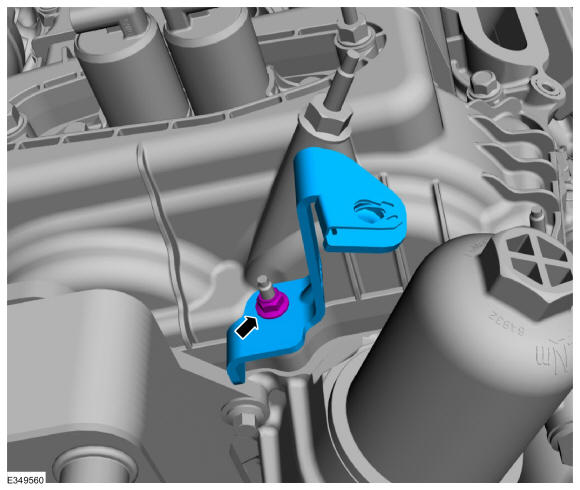

Remove the nut and the bracket.
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY
Loosen the fasteners and remove the valve cover.

Courtesy of FORD MOTOR COMPANY
1. Remove and discard the gasket.
2. Clean the valve cover gasket groove with soap and water or a suitable solvent.
Courtesy of FORD MOTOR COMPANY
Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
