Oil Pump: Installation
WARNING: This page is about a different variant/trim than selected.
- Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
-
NOTE: Make sure the oil pump drive belt teeth are engaged in the crankshaft sprocket prior to installing the oil pump.

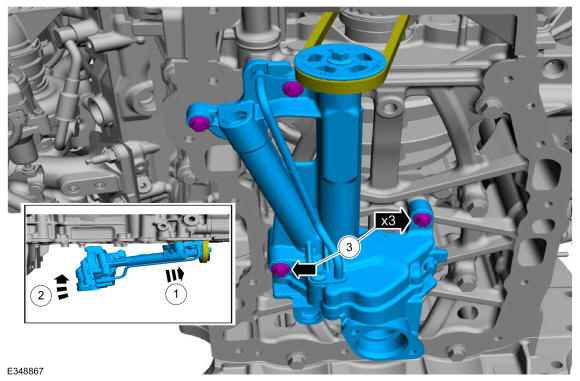

- Install the oil pump sprocket into the oil pump drive belt.
- Raise the rear of the oil pump assembly into the installed position.
- Install the oil pump bolts.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°
- Install a new oil pump pickup O-ring seal.
- Install the oil pump pickup and bolts.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°
- Install the oil pan. Refer to: Oil Pan .
