Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.

Clean and prepare the RTV sealing surfaces. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The oil pan must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 minutes of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

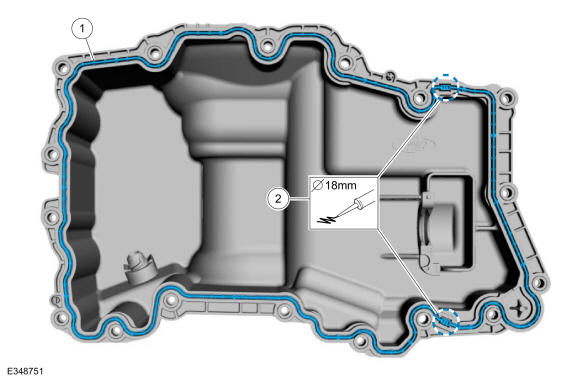

1. Install a new oil pan press-in-place gasket.
2. Apply a 18 mm (0.708 in) drop of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder block joint areas on the oil pan.
  Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
Courtesy of FORD MOTOR COMPANY

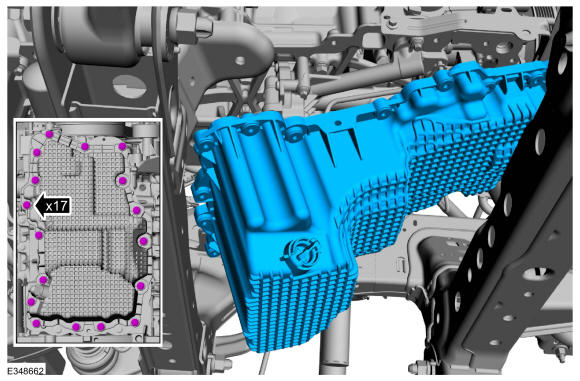

Install the oil pan and the bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: Stage 1: 31 lb.in (3.5 Nm) | Stage 2: 89 lb.in (10 Nm) | Stage 3: 45°

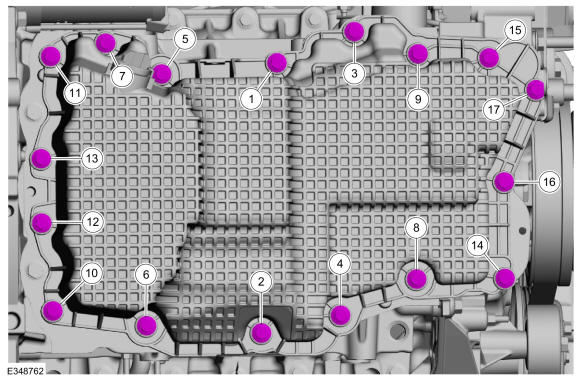

Fig 1: Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY
1. Install the wiring harness bracket bolt and nut.
  Torque: 106 lb.in (12 Nm)
2. Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

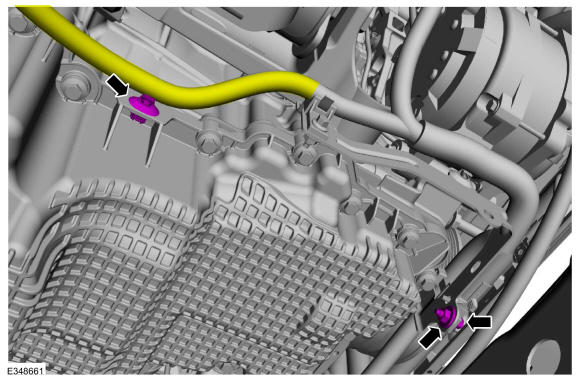

Position the transmission cooler tubes and install the bolt and nut.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission cooler tube bracket bolt.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the steering gear. Refer to: Steering Gear .
NOTE: If equipped.

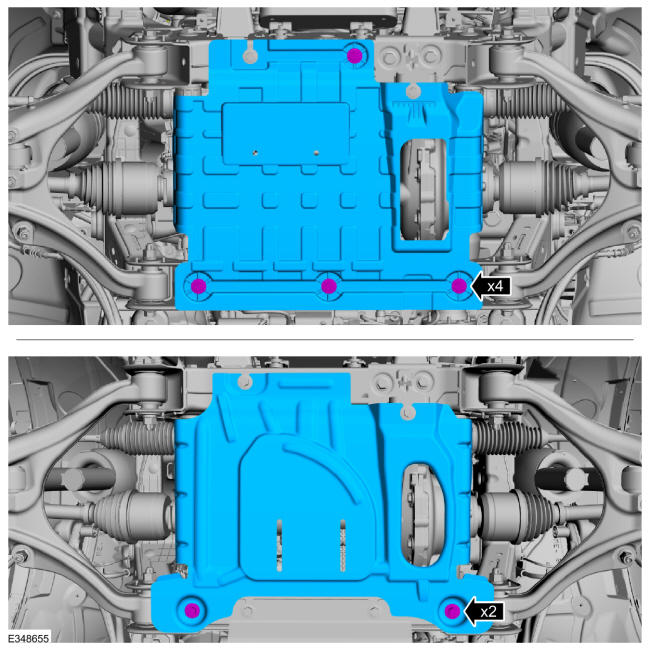

1. Install the underbody shield and the bolts.
  Torque: 22 lb.ft (30 Nm)
2. Tighten the bolts.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Underbody shields vary by model.

Install the underbody shield and the bolts.

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Underbody shields vary by model.
1. Install the underbody shield and the bolts.
  Torque: 22 lb.ft (30 Nm)
2. Tighten the bolts.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY

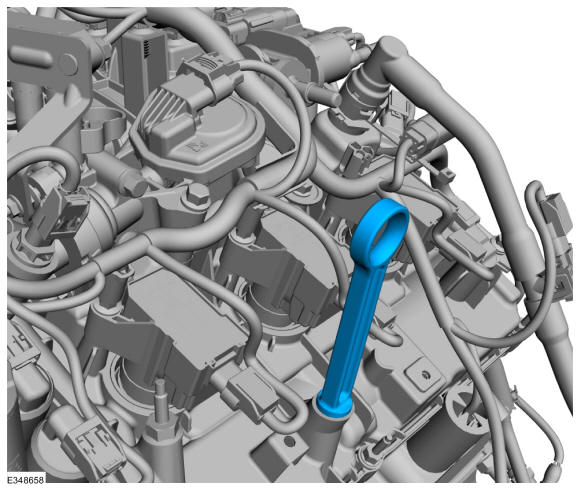

Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Install a new engine oil filter and fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Remove the holding device.

Courtesy of FORD MOTOR COMPANY
