Oil Cooler: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

Remove the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
Remove and discard the oil filter. Refer to: Engine Oil Draining and Filling .

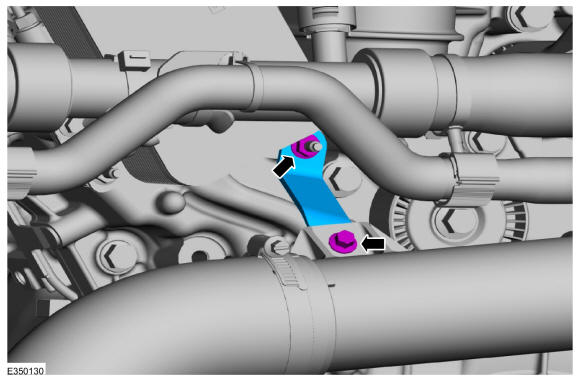

Remove the fasteners and the CAC outlet pipe bracket.

Courtesy of FORD MOTOR COMPANY

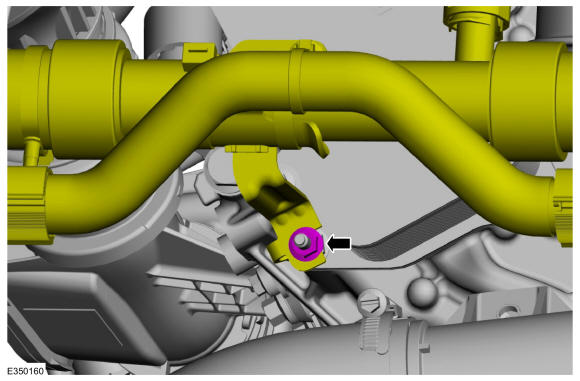

Remove the nut and position the bracket and coolant hoses aside.

Courtesy of FORD MOTOR COMPANY

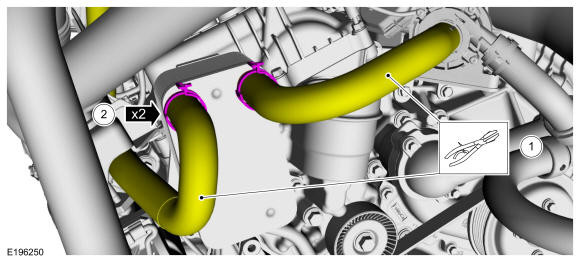

- Using hose locking pliers, clamp the oil cooler coolant hoses. Use the General Equipment: Locking Pliers
- Disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

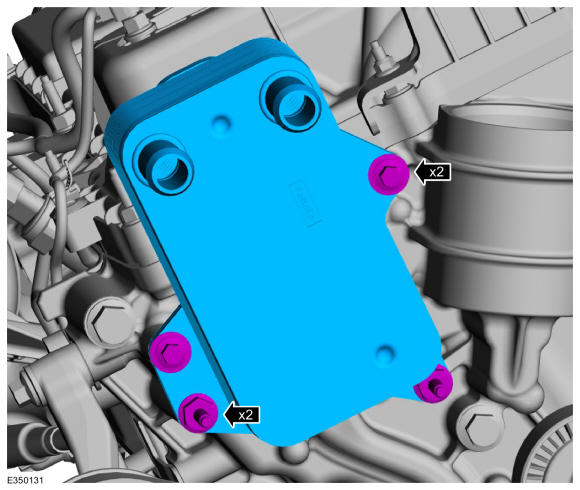

Remove the fasteners and the oil cooler.

Courtesy of FORD MOTOR COMPANY

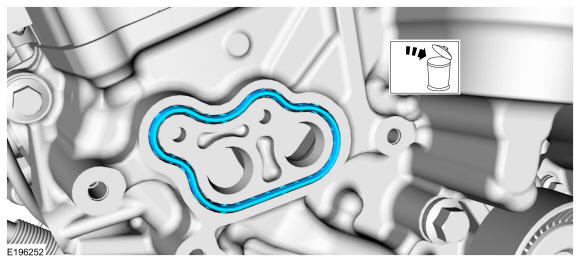

Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. To diagnose mechanical concerns, refer to ENGINE

Inspect the oil cooler.

Courtesy of FORD MOTOR COMPANY
