Oil Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

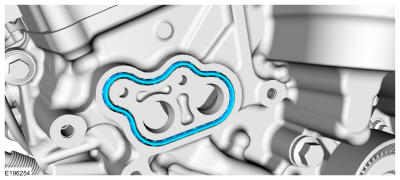

Install a new gasket.

Courtesy of FORD MOTOR COMPANY
Install the oil cooler and the fasteners.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

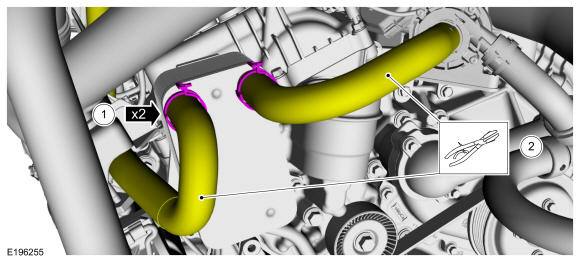

- Connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
- Remove the hose locking pliers. Use the General Equipment: Locking Pliers
Courtesy of FORD MOTOR COMPANY
Position the coolant hoses and bracket and install the nut.
Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the CAC outlet pipe bracket and the fasteners.
Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
1. Drain the engine oil. Refer to: Engine Oil Draining and Filling .
2. Install a new oil filter. Refer to: Engine Oil Draining and Filling .
3. Fill the engine with clean engine oil Refer to: Engine Oil Draining and Filling .
Install the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
Inspect and adjust the coolant level in the degas bottle. Refer to: Specifications .
