Removal And Installation: Flexplate: Installation

WARNING: This page is about a different variant/trim than selected.

1. Position the flexplate on the crankshaft.
2. Hand start the bolts then rundown the bolts one turn at a time in sequence shown until the flexplate is snug against the rear face of the crankshaft.
3. Final tighten the bolts in sequence shown.
  Torque: 59 lb.ft (80 Nm)

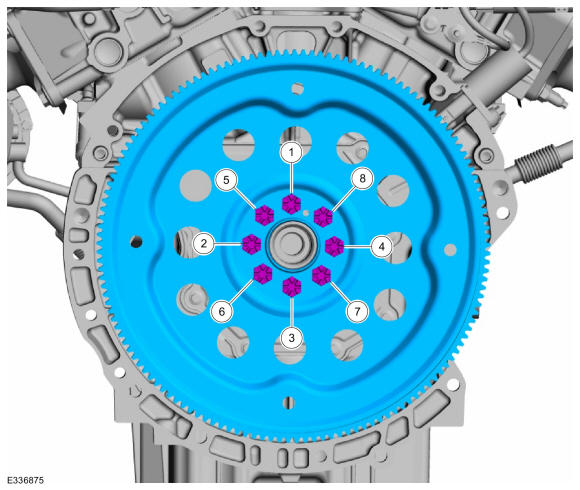

Fig 1: Flexplate Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the transmission. Refer to: Transmission - 2.7L EcoBoost (238kW/324PS) .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
Road test the vehicle.
