Engine Mount LH: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Clean the engine mount bracket-to-cylinder block surfaces of any dirt or foreign material prior to installation.
    GFD624756Courtesy of FORD MOTOR COMPANY
  2. Clean the engine mount-to-frame surfaces of any dirt or foreign material prior to installation.
    GFD624757Courtesy of FORD MOTOR COMPANY
  3. Install the LH engine mount.
    GFD624755Courtesy of FORD MOTOR COMPANY
  4. Install the LH engine mount bracket and the new bolts.

    Torque: 52 lb.ft (70 Nm)

    GFD624758Courtesy of FORD MOTOR COMPANY
  5. NOTE: Do not tighten engine mount bolts at this time.

    Install the LH engine mount bolts finger tight.

    GFD623903Courtesy of FORD MOTOR COMPANY

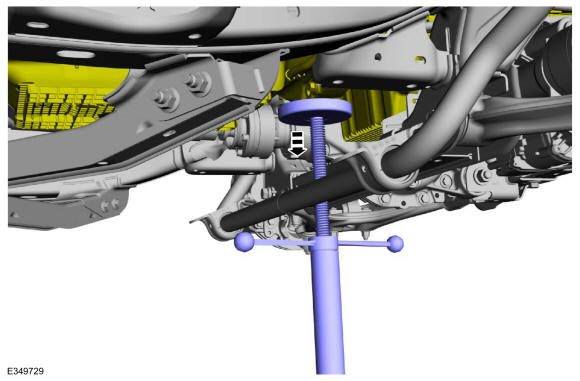

    1. Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle Stands
    2. Remove the stand.
    GFD624759Courtesy of FORD MOTOR COMPANY
  6. Remove and discard the transmission mount nuts.
    GFD624096Courtesy of FORD MOTOR COMPANY
  7. Install the new transmission mount nuts and tighten.

    Torque: 85 lb.ft (115 Nm)

    GFD624073Courtesy of FORD MOTOR COMPANY
    NOTE: Steps 9 thru 11 are for vehicles with sway bar disconnect. Step 12 is for vehicles with a sway bar.
  8. Remove and discard the nuts and position the sway bar disconnect forward.
    GFD624093Courtesy of FORD MOTOR COMPANY
  9. Position the sway bar disconnect and install the new nuts and bolts.

    Torque: 66 lb.ft (90 Nm)

    GFD624094Courtesy of FORD MOTOR COMPANY
  10. Connect the sway bar disconnect wiring harness electrical connectors and retainers.
    GFD624065Courtesy of FORD MOTOR COMPANY
  11. Position the sway bar and install the new nuts and bolts.

    Torque: 66 lb.ft (90 Nm)

    GFD624095Courtesy of FORD MOTOR COMPANY
  12. NOTE: Use a 1/2 inch drive 12-point 1 inch standard torque adaptor (such as a Snap-on SRDH321, or equivalent).

    Using a standard torque adaptor, tighten the LH engine mount bolts.

    Torque: Stage 1: 111 lb.ft (150 Nm) | Stage 2: 60°

    GFD623903Courtesy of FORD MOTOR COMPANY
  13. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

    Install the new engine mount nuts.

    Torque: Stage 1: 81 lb.ft (110 Nm) | Stage 2: 120°

    GFD623904Courtesy of FORD MOTOR COMPANY
  14. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 184 lb.ft (250 Nm)

    GFD624669Courtesy of FORD MOTOR COMPANY
  15. Install the LH axle shield and the retainers.
    GFD623902Courtesy of FORD MOTOR COMPANY
    NOTE: Steps 17 thru 19 are for vehicles equipped with an electronic locking axle.
  16. Using the adjustable stand, raise the axle and install the new bolt finger tight. Use the General Equipment: Vehicle/Axle Stands
    GFD624090Courtesy of FORD MOTOR COMPANY
  17. Install the new rear axle bolts.

    Torque: Stage 1: 30 lb.ft (40 Nm) | Stage 2: 70°

    GFD624091Courtesy of FORD MOTOR COMPANY
  18. Tighten the bolt and remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

    Torque: 195 lb.ft (265 Nm)

    GFD624092Courtesy of FORD MOTOR COMPANY

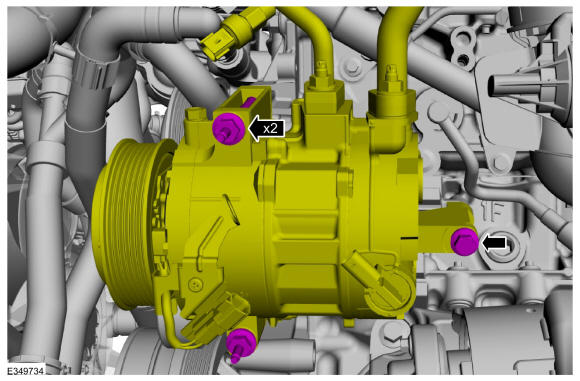

  19. Position the A/C compressor and install the fasteners.

    Torque: 18 lb.ft (25 Nm)

    GFD624752Courtesy of FORD MOTOR COMPANY

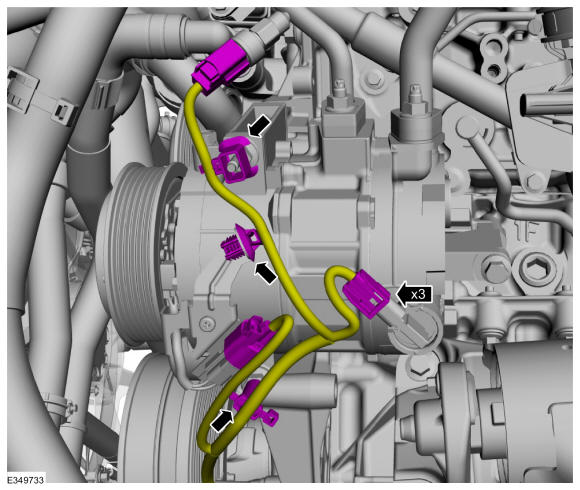

    1. Connect the wiring harness electrical connectors.
    2. Attach the wiring harness retainers.
    GFD624751Courtesy of FORD MOTOR COMPANY

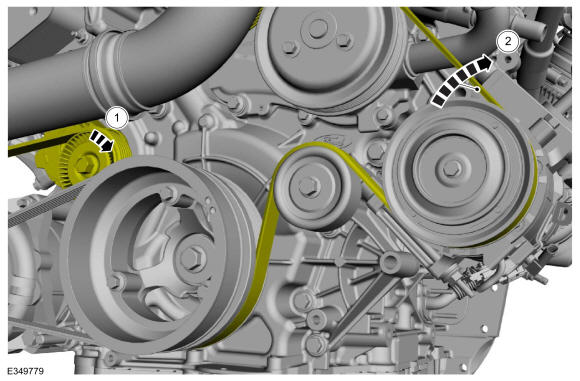

  20. Rotate the accessory drive belt tensioner clockwise and install the accessory drive belt onto the A/C compressor.
    GFD624760Courtesy of FORD MOTOR COMPANY

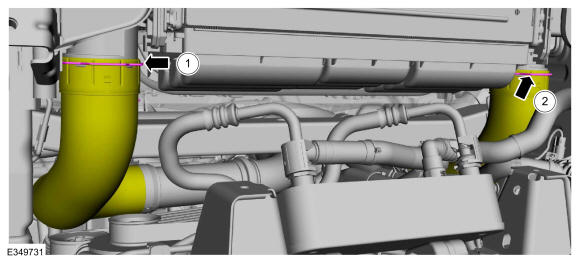

    1. Attach the lower CAC outlet pipe to the CAC and engage the retaining clip.
    2. Attach the lower CAC intake pipe to the CAC and engage the retaining clip.
    GFD624749Courtesy of FORD MOTOR COMPANY
  21. NOTE: If equipped.

    1. Install the underbody shield and the bolts.

      Torque: 22 lb.ft (30 Nm)

    2. Tighten the bolts.

      Torque: 22 lb.ft (30 Nm)

    GFD624670Courtesy of FORD MOTOR COMPANY

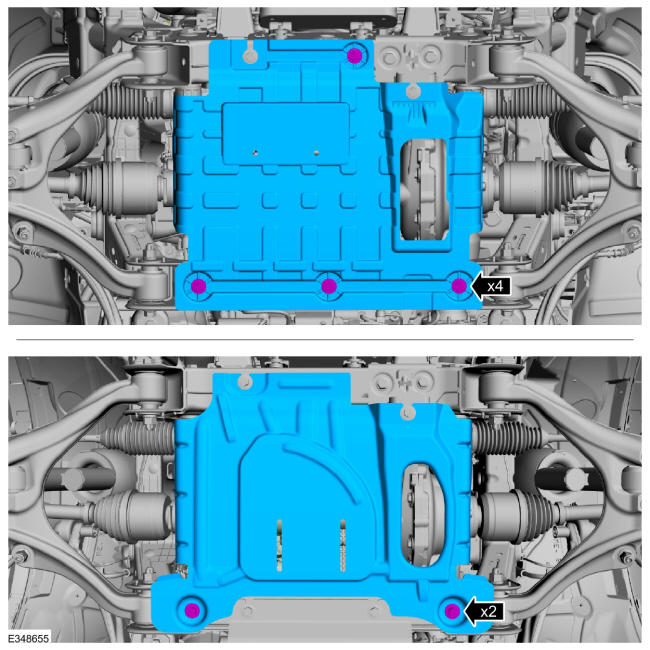

  22. NOTE: Underbody shields vary by model.

    Install the underbody shield and the bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD624748Courtesy of FORD MOTOR COMPANY
  23. NOTE: Underbody shields vary by model.

    1. Install the underbody shield and the bolts.

      Torque: 22 lb.ft (30 Nm)

    2. Tighten the bolts.

      Torque: 22 lb.ft (30 Nm)

    GFD624671Courtesy of FORD MOTOR COMPANY
  24. Install the LH fender splash shield. Refer to: Fender Splash Shield .
  25. Attach the air cleaner outlet pipes to the air cleaner and tighten the clamps.

    Torque: 48 lb.in (5.4 Nm)

GFD624746Courtesy of FORD MOTOR COMPANY
