Engine Front Cover: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: This procedure includes steps to lift  the engine. The special tools required to install the crankshaft seal and pulley cannot be installed with the engine in the installed position due to the location of the body front support.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
  2. Activate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

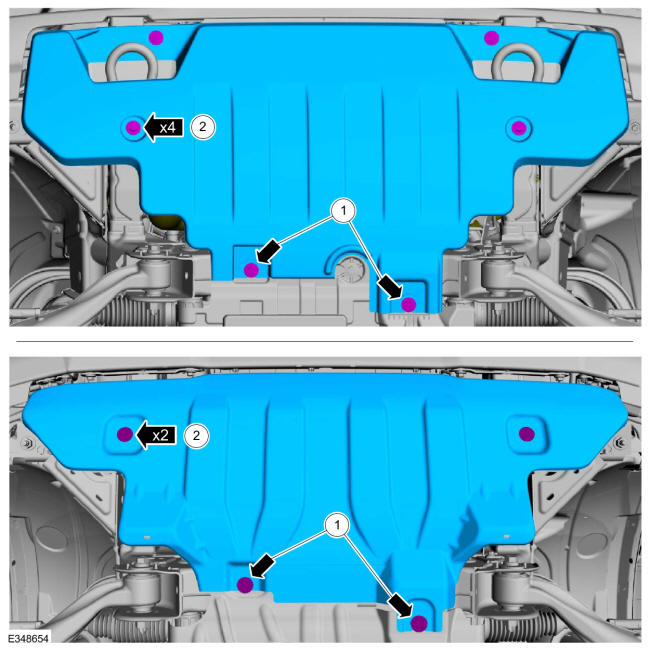

  4. NOTE: Underbody shields vary by model.

    1. Loosen the bolts.
    2. Remove the bolts and the underbody shield.

    GFD624711Courtesy of FORD MOTOR COMPANY
  5. NOTE: Underbody shields vary by model.

    Remove the bolts and the underbody shield.

    GFD624712Courtesy of FORD MOTOR COMPANY
  6. NOTE: If equipped.

    1. Loosen the bolts.
    2. Remove the bolts and the underbody shield.

    GFD624657Courtesy of FORD MOTOR COMPANY
  7. Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  8. Remove and discard the engine oil filter. Refer to: Engine Oil Draining and Filling .
  9. Remove the following items:

    1. Air cleaner. Refer to: Air Cleaner .
    2. Upper and lower CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .

    1. Release the retaining clip and disconnect the radiator hose from the radiator.
    2. Detach the radiator hose retainer.
    3. Release the clamp and remove the radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD624713Courtesy of FORD MOTOR COMPANY
  11. Release the retaining clip and disconnect the radiator hose from the radiator.
    GFD624714Courtesy of FORD MOTOR COMPANY
  12. Detach the coolant hose retainers.
    GFD624715Courtesy of FORD MOTOR COMPANY
    • Follow directions to release the quick release coupling type 5. Disconnect the coolant hoses. Refer to: Quick Release Coupling .

    • Remove the radiator hose bracket nut.

    • Release the clamp and remove the radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

    GFD624716Courtesy of FORD MOTOR COMPANY
    1. Release the clamp and position the degas hose aside. Use the General Equipment: Hose Clamp Remover/Installer
    2. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    3. Follow directions to release the quick release coupling type 5. Disconnect the coolant hose and position the hose aside. Refer to: Quick Release Coupling .
    4. Release the clamp and position the coolant hose aside. Use the General Equipment: Hose Clamp Remover/Installer
    5. Follow directions to release the quick release coupling type 5. Disconnect the coolant hose and position the hose aside. Refer to: Quick Release Coupling .
    GFD624717Courtesy of FORD MOTOR COMPANY
  15. Remove the nut and bracket.
    GFD624718Courtesy of FORD MOTOR COMPANY
  16. Remove the following items:

    1. LH valve cover. Refer to: Valve Cover LH .
    2. RH valve cover. Refer to: Valve Cover RH .
    3. Cabin heater coolant pump. Refer to: Cabin Heater Coolant Pump - 2.7L EcoBoost (238kW/324PS) .
    4. NOTE: It is not necessary to clamp off the oil cooler hoses with the cooling system drained.

      Oil cooler. Refer to: Oil Cooler .

    5. EGR cooler. Refer to: Exhaust Gas Recirculation (EGR) Cooler .
    6. Coolant pump. Refer to: Coolant Pump .
    7. Accessory drive belt tensioner. Refer to: Accessory Drive Belt Tensioner .
    8. Generator. Refer to: Generator - 2.7L EcoBoost (238kW/324PS) .
    9. LH fender splash shield. Refer to: Fender Splash Shield .

    1. Detach the wiring harness retainers.
    2. Disconnect the wiring harness electrical connectors.
    GFD624719Courtesy of FORD MOTOR COMPANY
  18. Remove the fasteners and position the A/C compressor aside.
    GFD624720Courtesy of FORD MOTOR COMPANY

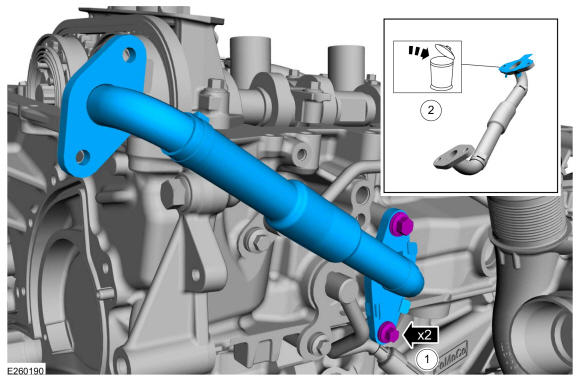

    1. Remove the nuts and the EGR tube.
    2. Discard the gasket.
    GFD624721Courtesy of FORD MOTOR COMPANY

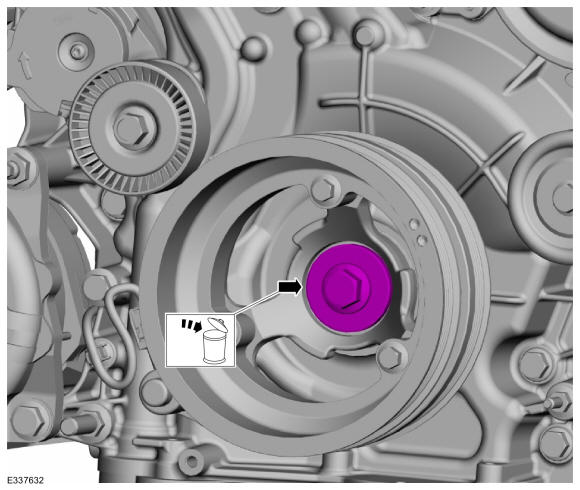

  20. NOTE: If further disassembly of the engine will be performed, retain the original crankshaft pulley bolt for removing the crankshaft front seal, and if necessary, turning the crankshaft while the pulley is removed.

    Remove and discard the crankshaft pulley bolt.

    GFD624722Courtesy of FORD MOTOR COMPANY
  21. NOTE: Use a universal puller (such as an OTC 6667, or equivalent).

    Using a universal puller, remove the crankshaft pulley.

    GFD624662Courtesy of FORD MOTOR COMPANY

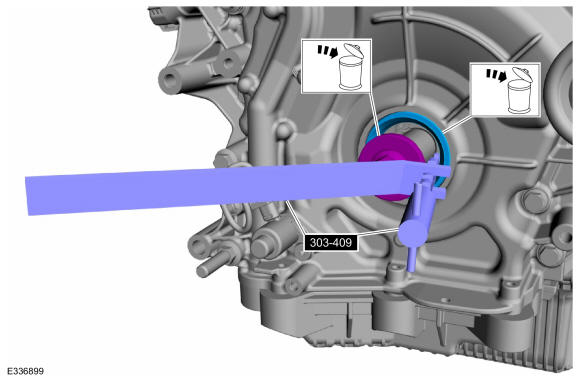

  22. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

    1. Install the crankshaft pulley bolt.
    2. Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. NOTE: If further disassembly of the engine will be performed, retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

      Remove and discard the crankshaft pulley bolt.

    GFD624651Courtesy of FORD MOTOR COMPANY

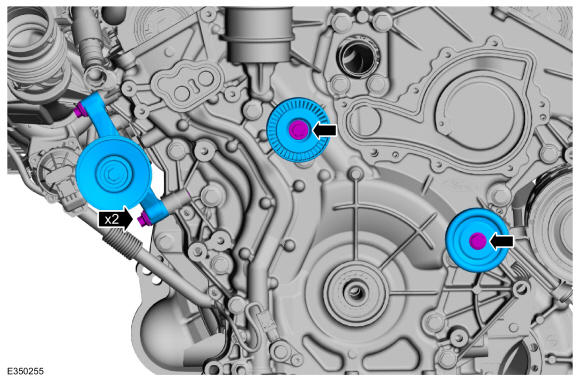

  23. Remove the bolts and the idler pulleys.
    GFD624723Courtesy of FORD MOTOR COMPANY
  24. Detach the wiring harness retainer.
    GFD624724Courtesy of FORD MOTOR COMPANY
    1. Disconnect the wiring harness electrical connector.
    2. Detach the wiring harness retainers.
    3. Remove the stud bolt and ground wire.
    GFD624725Courtesy of FORD MOTOR COMPANY
  26. Remove the bolts and position the bracket aside.
    GFD624726Courtesy of FORD MOTOR COMPANY
  27. Remove the oil pan. Refer to: Oil Pan .

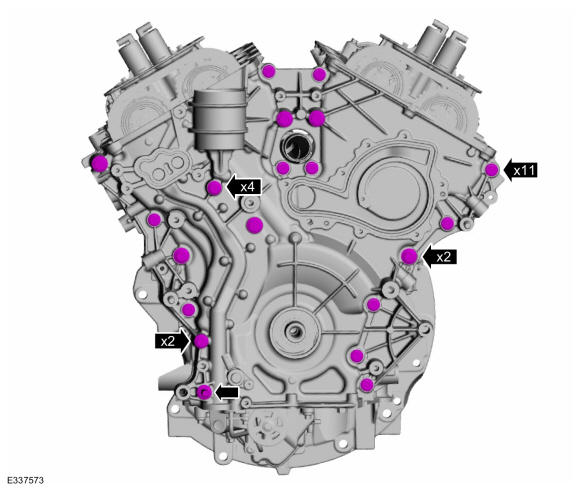

  28. NOTE: There are different types of fasteners, note location of each fastener for assembly.

    Remove the engine front cover fasteners.

    GFD624727Courtesy of FORD MOTOR COMPANY
  29. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and remove the engine front cover. Use the General Equipment: Flat-Bladed Screwdriver
    GFD624728Courtesy of FORD MOTOR COMPANY
  30. Remove and discard the engine front cover gaskets.
    GFD624729Courtesy of FORD MOTOR COMPANY
  31. Remove and discard the oil gallery seal (6G068).
    GFD624730Courtesy of FORD MOTOR COMPANY
  32. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD624731Courtesy of FORD MOTOR COMPANY
  33. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD624732Courtesy of FORD MOTOR COMPANY
