Cylinder Head RH: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install a new cylinder head gasket.
    GFD624706Courtesy of FORD MOTOR COMPANY
    • Install the cylinder head.

    • Install new cylinder head bolts.

      Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: Loosen: 2 turn(s) | Stage 3: 37 lb.ft (50 Nm) | Stage 4: 180°

    Fig 1: RH Cylinder Head Tightening Sequence
    GFD624707Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure that a new high-pressure fuel tube is installed.

    1. Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas below.
      G00468730Courtesy of FORD MOTOR COMPANY
    2. NOTE: In stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (75 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

      Install the high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

      Torque: Stage 1: Tighten to : 62 lb.in (7 Nm) | Stage 2: Tighten to : 89 lb.in (10 Nm) | Stage 3: Tighten an additional : 30°

    GFD624708Courtesy of FORD MOTOR COMPANY
    1. Install the cylinder head to coolant outlet connector hose assembly and the bolt.

      Torque: 89 lb.in (10 Nm)

    2. Connect the coolant hose and the clamp. Use the General Equipment: Hose Clamp Remover/Installer
    GFD624700Courtesy of FORD MOTOR COMPANY

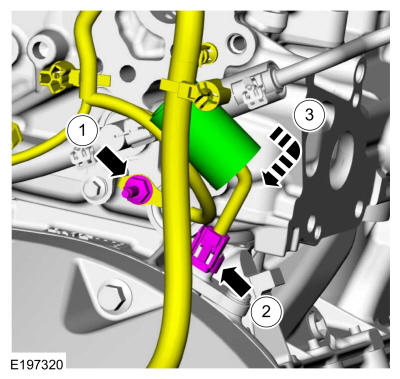

    1. Install the wiring harness ground and the stud bolt.

      Torque: 89 lb.in (10 Nm)

    2. Connect the CKP sensor electrical connector.
    3. Install the CKP sensor electrical connector insulator.
    GFD624709Courtesy of FORD MOTOR COMPANY
  3. Install the following items:

    1. Refer to: Turbocharger RH .
    2. Refer to: Camshaft RH .

  4. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  5. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
  6. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
  7. Start and check the exhaust system for leaks.
  8. Road test the vehicle.
