Cylinder Head LH: Installation

WARNING: This page is about a different variant/trim than selected.

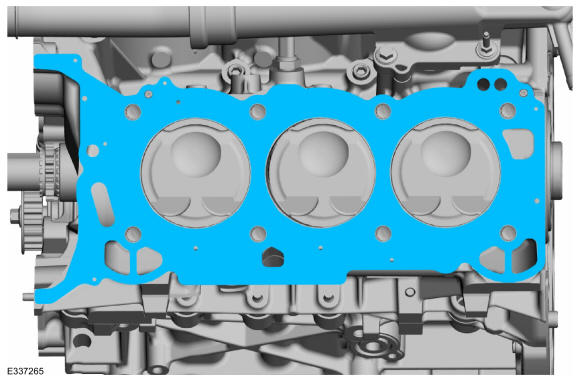

  1. Install a new cylinder head gasket.
    GFD624696Courtesy of FORD MOTOR COMPANY
    • Install the cylinder head.

    • Install new cylinder head bolts.

      Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: Loosen: 2 turn(s) | Stage 3: 37 lb.ft (50 Nm) | Stage 4: 180°

    Fig 1: LH Cylinder Head Tightening Sequence
    GFD624697Courtesy of FORD MOTOR COMPANY
    1. Install the cylinder head to coolant outlet connector hose assembly and the bolt.

      Torque: 89 lb.in (10 Nm)

    2. Connect the coolant hose and the clamp. Use the General Equipment: Hose Clamp Remover/Installer
    GFD624691Courtesy of FORD MOTOR COMPANY
  2. Install the wiring harness grounds, the bolt and the stud bolt.

    Torque: 89 lb.in (10 Nm)

    GFD624690Courtesy of FORD MOTOR COMPANY
  3. NOTE: Make sure that a new high-pressure fuel tube is installed.

    1. Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas below.
      G00468730Courtesy of FORD MOTOR COMPANY
    2. NOTE: In stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (75 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

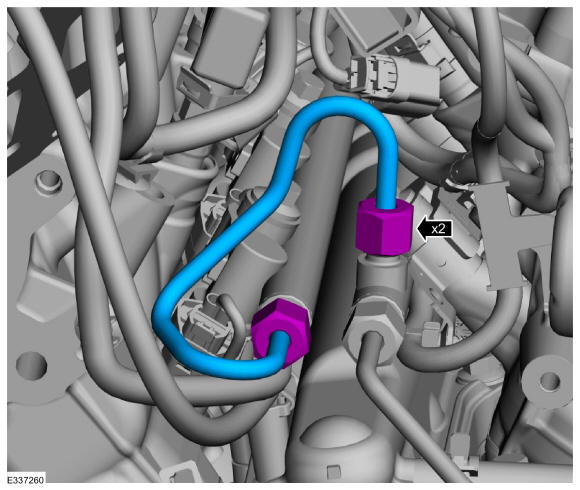

      Install the high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

      Torque: Stage 1: Tighten to : 62 lb.in (7 Nm) | Stage 2: Tighten to : 89 lb.in (10 Nm) | Stage 3: Tighten an additional : 30°

    GFD624698Courtesy of FORD MOTOR COMPANY
  4. Install the following items:

    1. Refer to: Turbocharger LH .
    2. Refer to: Camshaft LH .

  5. Install the fuel supply manifold, then install and tighten the retainers.

    Torque: 89 lb.in (10 Nm)

    GFD624688Courtesy of FORD MOTOR COMPANY
  6. Connect the fuel supply quick connect coupling and the spring lock coupling. Attach the wire harness retainers. Refer to: Quick Release Coupling . Refer to: Spring Lock Couplings .
    GFD624687Courtesy of FORD MOTOR COMPANY
  7. Connect the quick release couplings. Refer to: Quick Release Coupling .
    GFD624686Courtesy of FORD MOTOR COMPANY
  8. Install the high-pressure fuel pump shield, then install and tighten the retainers.

    Torque: 89 lb.in (10 Nm)

    GFD624685Courtesy of FORD MOTOR COMPANY
  9. Attach the wiring harness retainers.
    GFD624684Courtesy of FORD MOTOR COMPANY
  10. Install the intake manifold. Refer to: Intake Manifold .
  11. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  12. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
  13. Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  14. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
  15. Start and check the exhaust system for leaks.
  16. Road test the vehicle.
