Crankshaft Rear Seal with Retainer Plate: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the flexplate. Refer to: Flexplate .

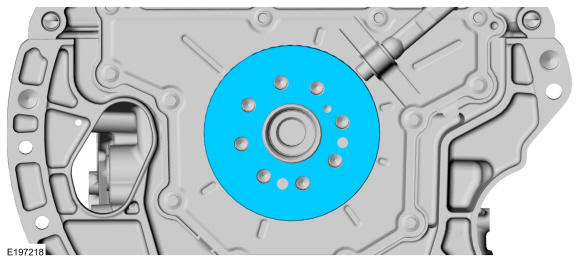

- Remove the crankshaft sensor ring.
- Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be discarded.
-

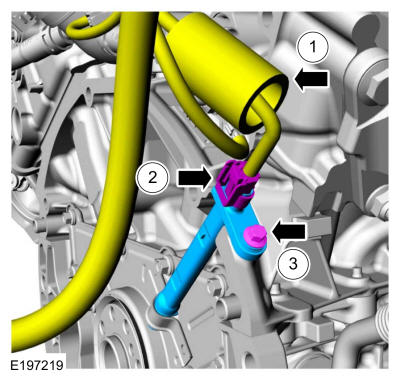

- Reposition the CKP sensor electrical connector insulator.
- Disconnect the CKP sensor electrical connector.
- Remove the bolt and the CKP sensor.
- Remove the bolts and the crankshaft rear seal and retainer plate.
- Discard the crankshaft rear seal and retainer plate.

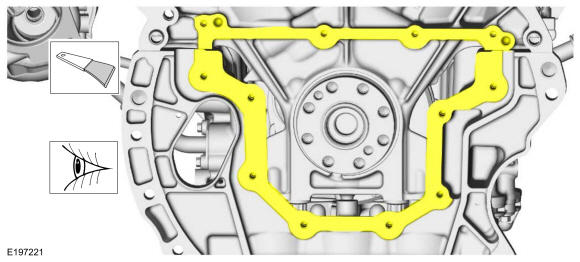

- Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
