Crankshaft Pulley: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: This procedure includes steps to lift  the engine. The special tools required to install the crankshaft seal and pulley cannot be installed with the engine in the installed position due to the location of the body front support.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
  2. Remove the accessory drive belt. Refer to: Accessory Drive Belt .
  3. NOTE: Underbody shields vary by model.

    1. Loosen the bolts.
    2. Remove the bolts and the underbody shield.

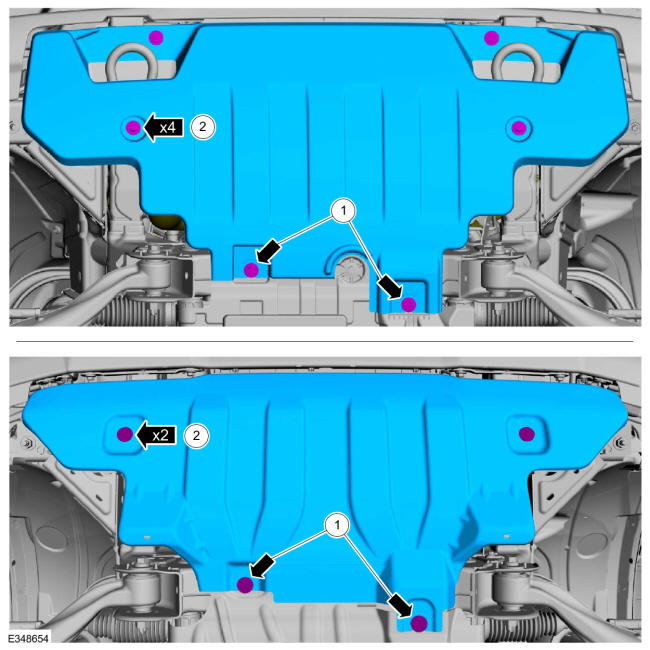

    GFD624655Courtesy of FORD MOTOR COMPANY
  4. NOTE: Underbody shields vary by model.

    Remove the bolts and the underbody shield.

    GFD624656Courtesy of FORD MOTOR COMPANY
  5. NOTE: If equipped.

    1. Loosen the bolts.
    2. Remove the bolts and the underbody shield.

    GFD624657Courtesy of FORD MOTOR COMPANY
  6. NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

    GFD624658Courtesy of FORD MOTOR COMPANY
  7. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    Remove and discard the RH engine mount nuts.

    GFD624659Courtesy of FORD MOTOR COMPANY
    NOTE: Step 8 is for vehicles equipped with a sway bar. Steps 9 thru 11 are for vehicles equipped with a sway bar disconnect.
    • Remove the nuts and bolts and lower the sway bar.

    • Discard the nuts and bolts.

    GFD624063Courtesy of FORD MOTOR COMPANY
  8. Disconnect the sway bar disconnect wiring harness electrical connectors and retainers.
    GFD624065Courtesy of FORD MOTOR COMPANY
    • Remove the nuts and bolts and lower the sway bar disconnect.

    • Discard the bolts.

    GFD624066Courtesy of FORD MOTOR COMPANY
  9. Position the sway bar disconnect back so the front bracket holes are on the studs and install the original nuts finger tight to position the sway bar disconnect aside.
    GFD624067Courtesy of FORD MOTOR COMPANY
  10. Loosen the transmission mount nuts.
    GFD624073Courtesy of FORD MOTOR COMPANY
    • Position an adjustable stand under the rear of the engine/transmission. Use the General Equipment: Vehicle/Axle Stands

    • Using the adjustable stand, raise the engine 38 mm (1.5 in).

    GFD624660Courtesy of FORD MOTOR COMPANY
  11. NOTE: If further disassembly of the engine will be performed, retain the original crankshaft pulley bolt for removing the crankshaft front seal, and if necessary, turning the crankshaft while the pulley is removed.

    Remove and discard the crankshaft pulley bolt.

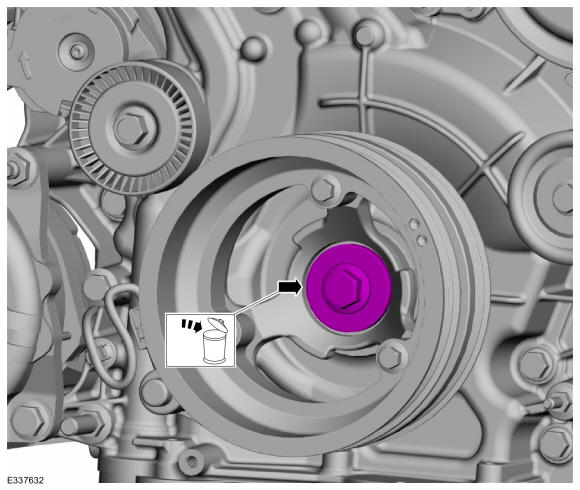

    GFD624661Courtesy of FORD MOTOR COMPANY
  12. NOTE: Use a universal puller (such as an OTC 6667, or equivalent).

    Using a universal puller, remove the crankshaft pulley.

GFD624662Courtesy of FORD MOTOR COMPANY
