Crankshaft Pulley: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: The outer pulley must be removed to properly hold the pulley during the crankshaft bolt tightening step.

    Remove the bolts and the outer pulley,

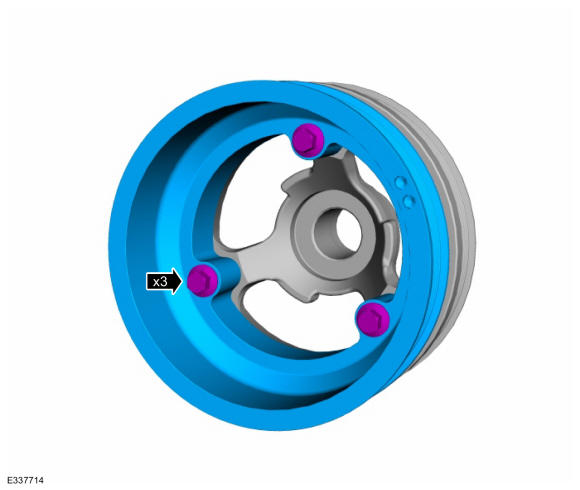

    GFD624663Courtesy of FORD MOTOR COMPANY
  2. Lubricate the crankshaft pulley sealing surface with clean engine oil prior to installation.

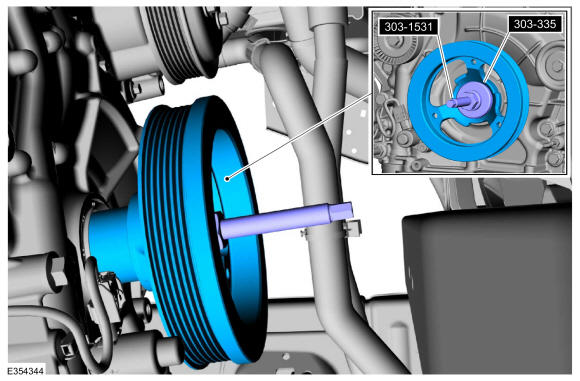

    GFD624664Courtesy of FORD MOTOR COMPANY
  3. Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal, 303-1531 Installer, Front Crank Seal and Damper.
    GFD624665Courtesy of FORD MOTOR COMPANY
  4. NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).
    NOTE: The aid of an assistant is required to perform this step.

    Using a universal pulley holder, install and tighten a new crankshaft pulley bolt.

    Torque: Stage 1: 166 lb.ft (225 Nm) | Stage 2: Loosen: 360° | Stage 3: 26 lb.ft (35 Nm) | Stage 4: 270°

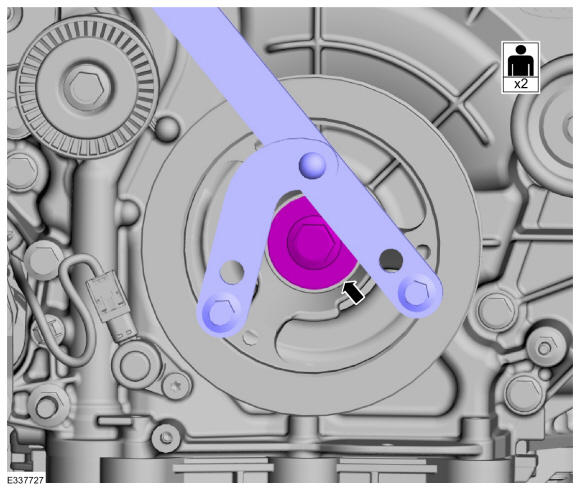

    GFD624666Courtesy of FORD MOTOR COMPANY
  5. Install the outer pulley and bolts,

    Torque: 26 lb.ft (35 Nm)

    GFD624667Courtesy of FORD MOTOR COMPANY
    1. Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle Stands
    2. Remove the stand.

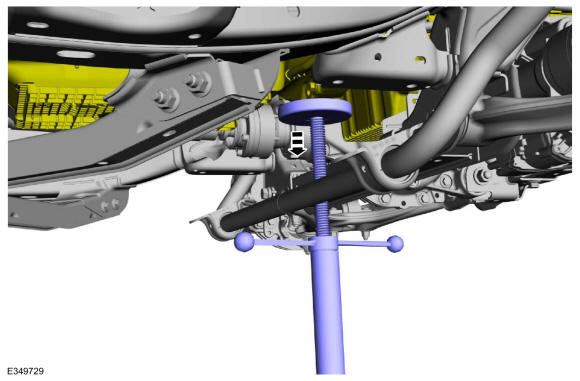

    GFD624668Courtesy of FORD MOTOR COMPANY
  6. Remove and discard the transmission mount nuts.
    GFD624096Courtesy of FORD MOTOR COMPANY
  7. Install the new transmission mount nuts and tighten.

    Torque: 85 lb.ft (115 Nm)

    GFD624073Courtesy of FORD MOTOR COMPANY
    NOTE: Steps 9 thru 11 are for vehicles with sway bar disconnect. Step 12 is for vehicles with a sway bar.
  8. Remove and discard the nuts and position the sway bar disconnect forward.
    GFD624093Courtesy of FORD MOTOR COMPANY
  9. Position the sway bar disconnect and install the new nuts and bolts.

    Torque: 66 lb.ft (90 Nm)

    GFD624094Courtesy of FORD MOTOR COMPANY
  10. Connect the sway bar disconnect wiring harness electrical connectors and retainers.
    GFD624065Courtesy of FORD MOTOR COMPANY
  11. Position the sway bar and install the new nuts and bolts.

    Torque: 66 lb.ft (90 Nm)

    GFD624095Courtesy of FORD MOTOR COMPANY
  12. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 184 lb.ft (250 Nm)

    GFD624669Courtesy of FORD MOTOR COMPANY
  13. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque: Stage 1: 81 lb.ft (110 Nm) | Stage 2: 120°

    GFD623904Courtesy of FORD MOTOR COMPANY
  14. NOTE: If equipped.

    1. Install the underbody shield and the bolts.

      Torque: 22 lb.ft (30 Nm)

    2. Tighten the bolts.

      Torque: 22 lb.ft (30 Nm)

    GFD624670Courtesy of FORD MOTOR COMPANY
  15. NOTE: Underbody shields vary by model.

    Install the underbody shield and the bolts.

    Torque: 22 lb.ft (30 Nm)

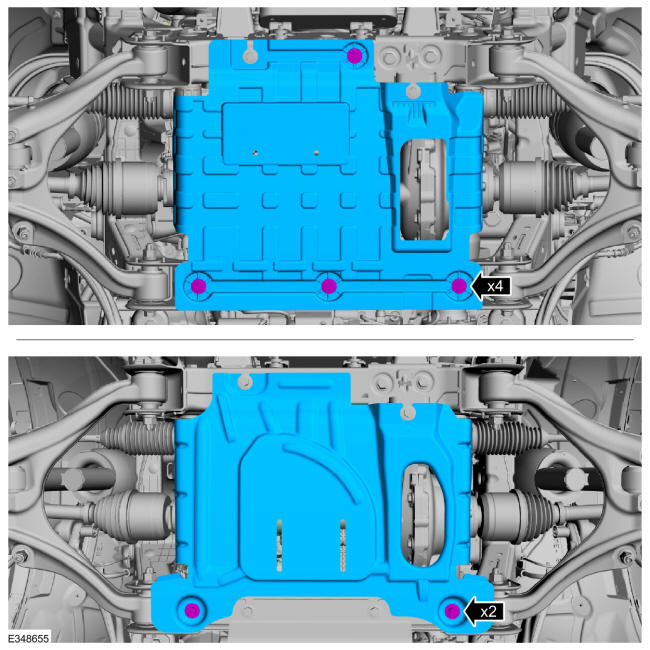

    GFD624656Courtesy of FORD MOTOR COMPANY
  16. NOTE: Underbody shields vary by model.

    1. Install the underbody shield and the bolts.

      Torque: 22 lb.ft (30 Nm)

    2. Tighten the bolts.

      Torque: 22 lb.ft (30 Nm)

    GFD624671Courtesy of FORD MOTOR COMPANY
  17. Install the accessory drive belt. Refer to: Accessory Drive Belt .
  18. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
