Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.

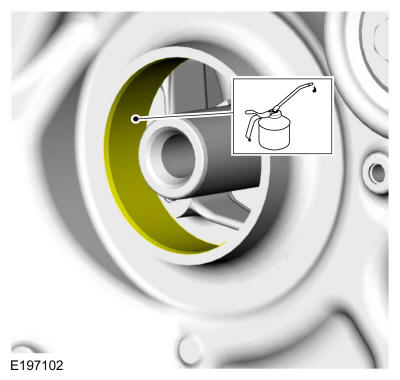

  1. Lubricate the engine front cover bore with clean engine oil.
    GFD624652Courtesy of FORD MOTOR COMPANY
  2. Using the special tools, install the new crankshaft front oil seal. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal, 303-1531 Installer, Front Crank Seal and Damper.
    GFD624653Courtesy of FORD MOTOR COMPANY
  3. Install the crankshaft pulley. Refer to: Crankshaft Pulley .
  4. Road test the vehicle.
