Camshaft Roller Follower: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Component(s) must be lubricated with clean engine oil.

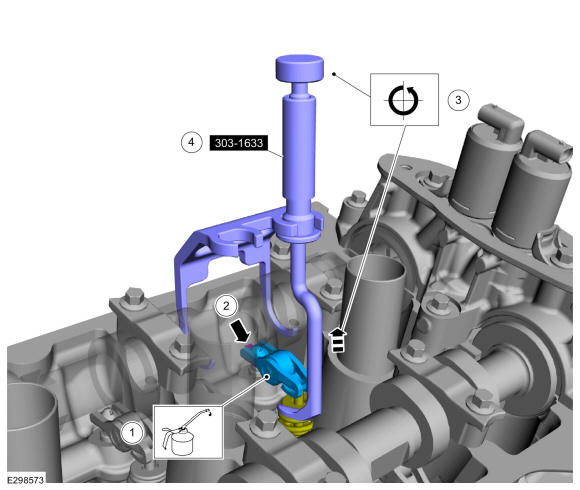

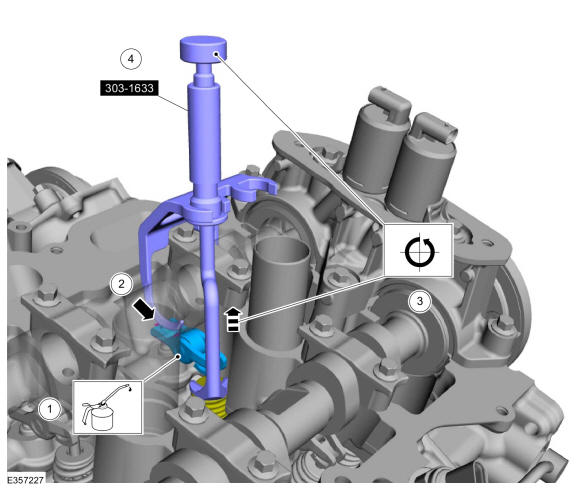

1. Lubricate the camshaft roller follower with clean engine oil.
2. Position the camshaft roller follower and engage the clip onto the hydraulic lash adjuster.
3. Turn the knob on the special tool counterclockwise to raise the valve and spring.
4. Remove Special Service Tool: 303-1633 Remover, Roller Rocker Follower.
Courtesy of FORD MOTOR COMPANY
Install the LH and/or RH valve covers. Refer to: Valve Cover LH . Refer to: Valve Cover RH .
