Camshaft RH: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Do not install the camshaft roller followers at this time. The roller followers will be installed later in the procedure.
    NOTE: If the original components are to be reinstalled, they must be installed in their original locations.

    1. Lubricate the hydraulic lash adjusters with clean engine oil.
    2. Install the hydraulic lash adjusters.

    GFD624636Courtesy of FORD MOTOR COMPANY
  2. NOTE: It is not necessary to position the scarf-cut seal ends when installing the camshafts.

    • Lubricate the camshafts with clean engine oil prior to installation.

    • Install the intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration.

    GFD624637Courtesy of FORD MOTOR COMPANY
  3. Apply a 1 mm bead of sealant to the rear camshaft cap mounting surface of the cylinder head.

    Material: Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)

    GFD624638Courtesy of FORD MOTOR COMPANY

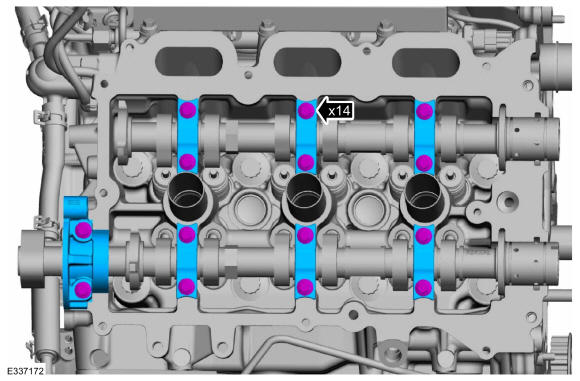

  4. Install the camshaft bearing caps and the bolts. Do not tighten at this time.
    GFD624639Courtesy of FORD MOTOR COMPANY

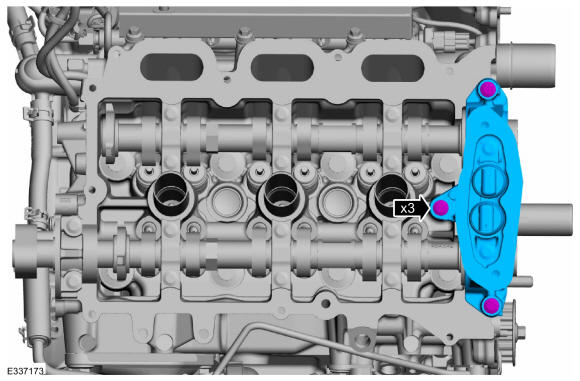

  5. Install the front camshaft bearing mega cap and the bolts. Do not tighten at this time.
    GFD624640Courtesy of FORD MOTOR COMPANY
  6. Tighten the bolts in sequence.

    Torque: 89 lb.in (10 Nm)

    Fig 1: RH Camshaft Tightening Sequence
    GFD624641Courtesy of FORD MOTOR COMPANY
  7. Install the RH VCT units. Refer to: Variable Camshaft Timing (VCT) Unit .

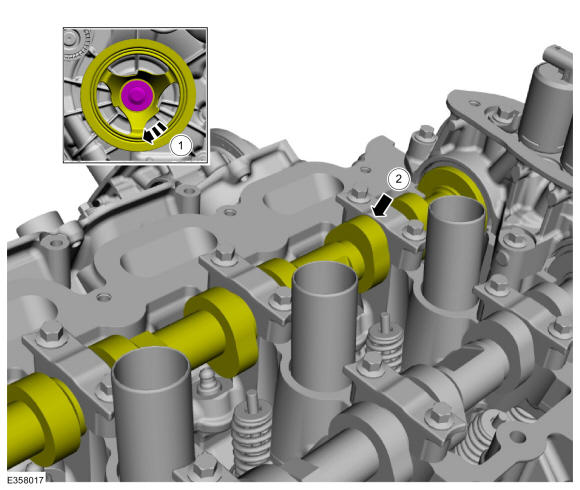

  8. Rotate the crankshaft pulley bolt clockwise to position the camshaft lobe upward for the camshaft roller follower to be installed.
    GFD624642Courtesy of FORD MOTOR COMPANY

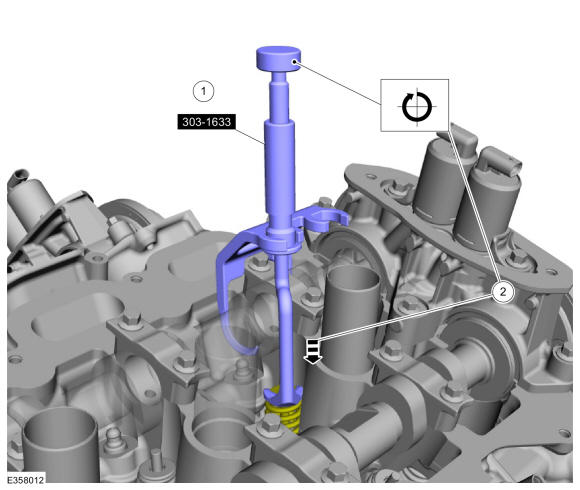

  9. NOTE: Do not allow the valve keepers to fall off the valve or the valve may drop into the cylinder. If a valve drops into the cylinder, the cylinder head must be removed.
    NOTE: It may be necessary to push the valve down while compressing the spring.

    1. Install Special Service Tool: 303-1633 Remover, Roller Rocker Follower.
    2. Turn the knob on the special tool clockwise to depress the valve and spring.

    GFD624643Courtesy of FORD MOTOR COMPANY

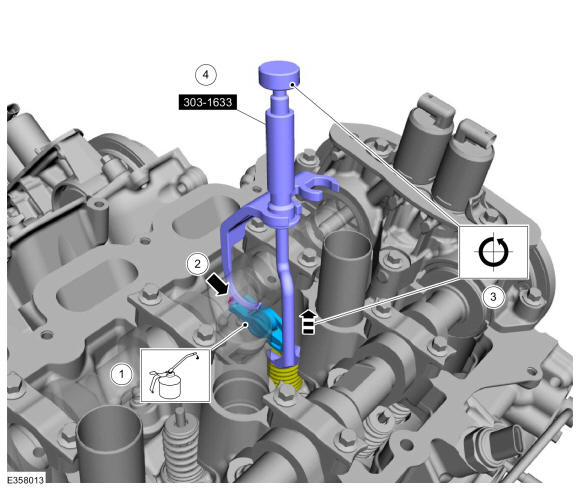

  10. NOTE: Component(s) must be lubricated with clean engine oil.

    1. Lubricate the camshaft roller follower with clean engine oil.
    2. Position the camshaft roller follower and engage the clip onto the hydraulic lash adjuster.
    3. Turn the knob on the special tool counterclockwise to raise the valve and spring.
    4. Remove Special Service Tool: 303-1633 Remover, Roller Rocker Follower.

    • Repeat the necessary steps to install the remaining camshaft roller followers.

    GFD624644Courtesy of FORD MOTOR COMPANY
  11. Install the following items:

    1. Refer to: High-Pressure Fuel Pump Drive Unit .
    2. Refer to: Valve Cover LH .
    3. Refer to: Valve Cover RH .

  12. Fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
  13. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  14. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
  15. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
  16. Road test the vehicle.
