Section 2 (Engine - 2.7L ECOBOOST (238KW/324PS)): Installation: Engine

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar | TKIT-2006UF-FLM | TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) | TKIT-2014D-ROW3 | TKIT-2014D-FL_ROW
Floor Crane
Trolley Jack
Vehicle/Axle Stands
Hose Clamp Remover/Installer
Wooden Block

Materials

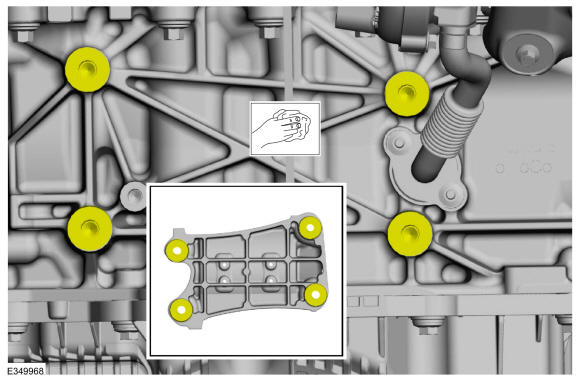

1. Clean the RH engine mount-to-frame surfaces of any dirt or foreign material.

   Courtesy of FORD MOTOR COMPANY

2. Clean the LH engine mount bracket-to-cylinder block surfaces of any dirt or foreign material.

   Courtesy of FORD MOTOR COMPANY

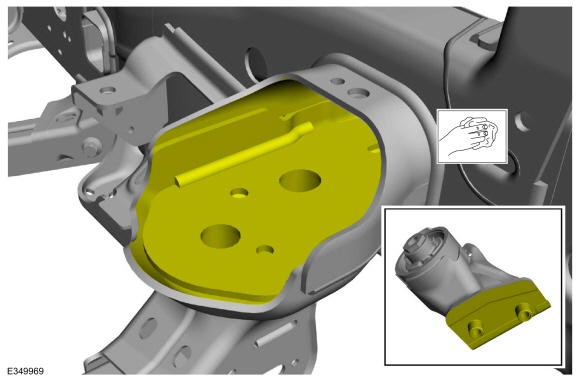

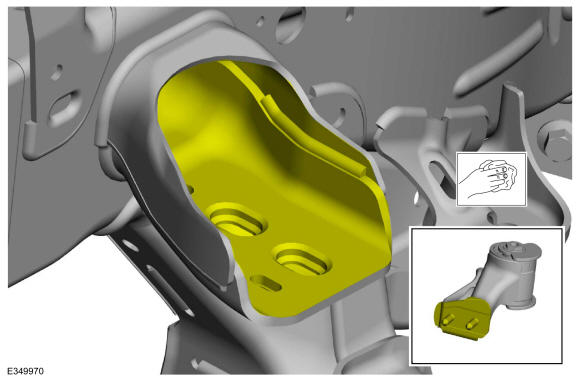

3. Clean the LH engine mount-to-frame surfaces of any dirt or foreign material.

   Courtesy of FORD MOTOR COMPANY

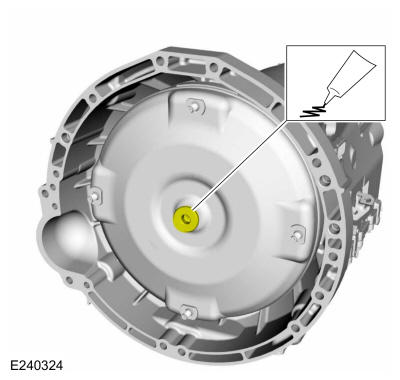

4. Lubricate the torque converter pilot hub with multi-purpose grease.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

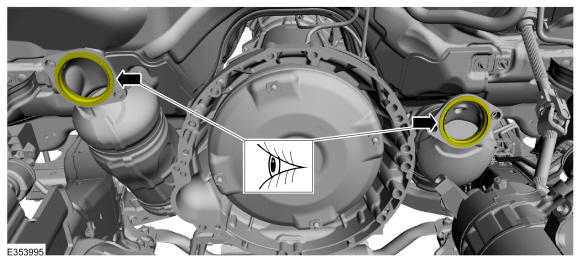

5. Make sure the exhaust gaskets are seated in the catalytic converters.

   Courtesy of FORD MOTOR COMPANY

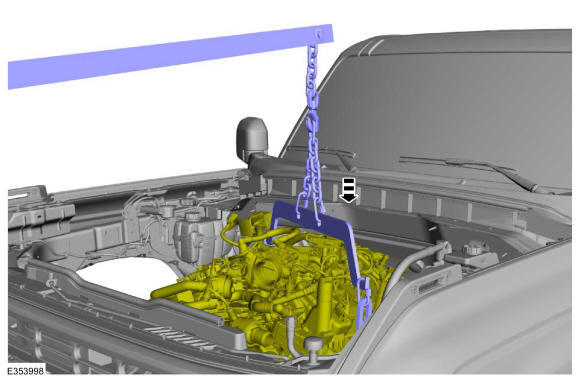

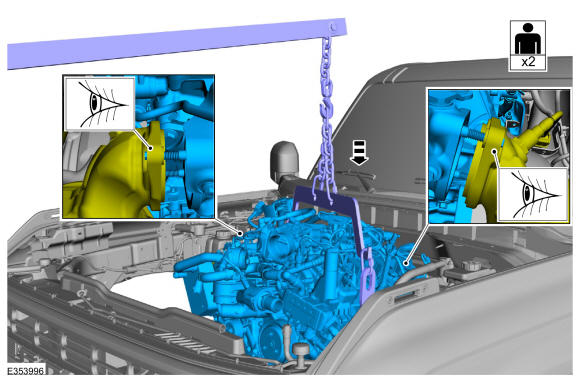

6. With the aid of an assistant, use the floor crane to position the engine in the engine compartment.
   • Make sure the exhaust studs are aligned in the catalytic converter flanges.

   Courtesy of FORD MOTOR COMPANY

7. Align the engine to the transmission and install the bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Install the LH engine mount.

   Courtesy of FORD MOTOR COMPANY

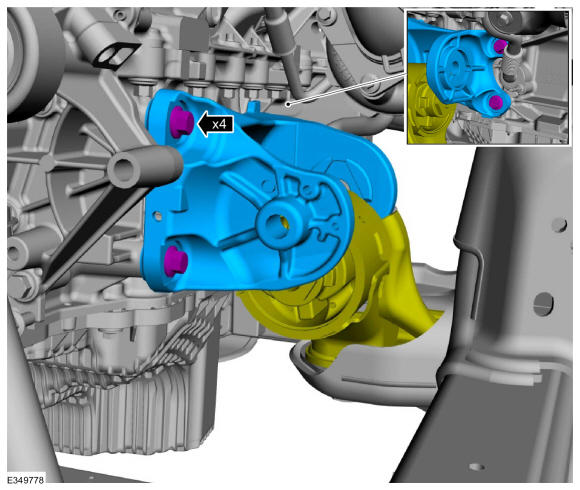

9. Install the LH engine mount bracket and the new bolts.

   Torque: 52 lb.ft (70 Nm)

   Courtesy of FORD MOTOR COMPANY

10. NOTE: Do not tighten engine mount bolts at this time.

    Install the new LH engine mount bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

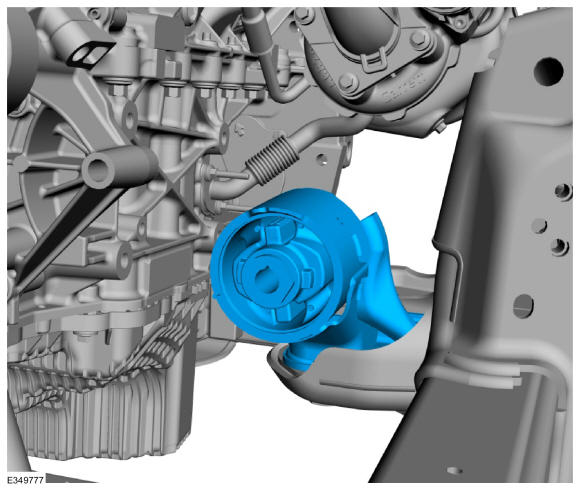

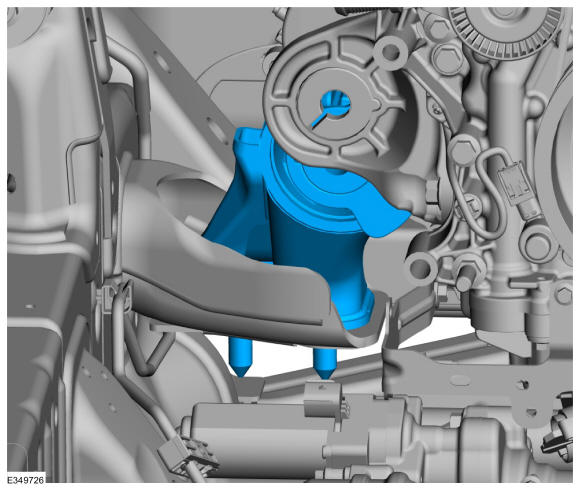

11. Install the RH engine mount.

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Do not tighten engine mount bolts at this time.

    Install the new engine mount nuts finger tight.

    Courtesy of FORD MOTOR COMPANY

13. Remove the floor jack and the block of wood. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

14. Lower the engine onto the engine mounts.
    1. Remove the floor crane and chains. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

15. Remove Special Service Tool: 303-1634 Lift Eyes (2), 303-1246 Engine Spreader Bar.

    Courtesy of FORD MOTOR COMPANY

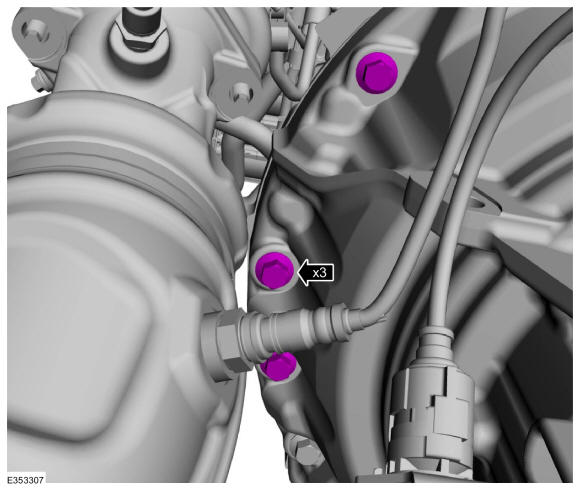

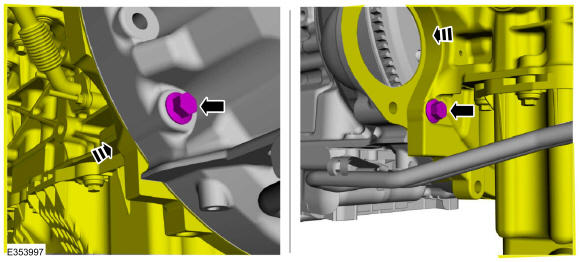

16. Install the LH bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

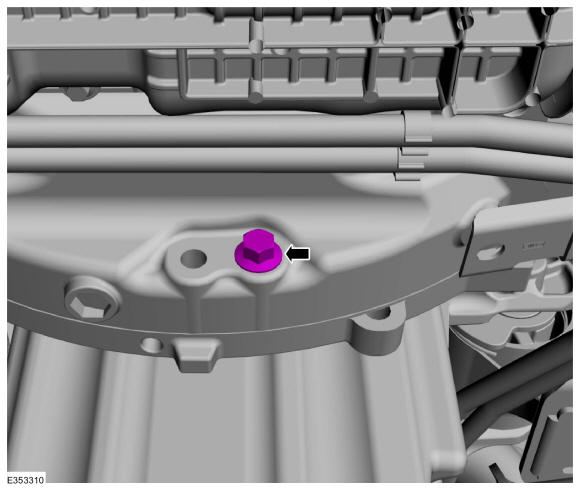

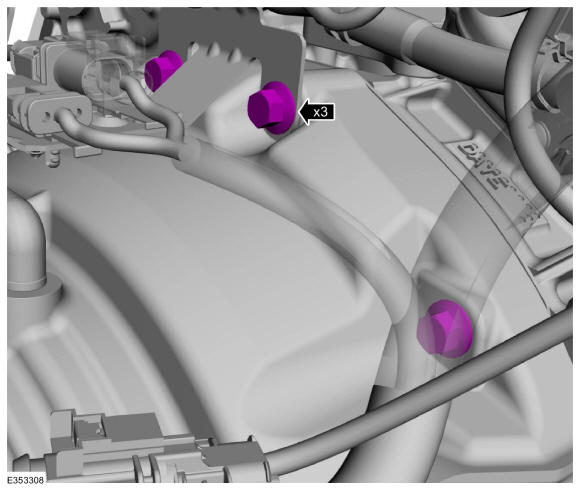

17. Install the top bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

18. Remove the RH bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Install the lower bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

20. NOTE: Only use hand tools when tightening the engine mount nuts or damage to the engine mount can occur.

    Tighten engine mount nuts.

    Torque: Stage 1: 81 lb.ft (110 Nm) | Stage 2: 120°

    Courtesy of FORD MOTOR COMPANY

21. NOTE: Only use hand tools when tightening the engine mount bolts or damage to the engine mount can occur.
    NOTE: Use a 1/2 inch drive 12-point 1 inch standard torque adaptor (such as a Snap-on SRDH321, or equivalent).

    Using a standard torque adaptor, tighten the LH engine mount bolts.

    Torque: Stage 1: 111 lb.ft (150 Nm) | Stage 2: 60°

    Courtesy of FORD MOTOR COMPANY

22. Install the LH axle shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

    NOTE: Steps 23 thru 25 are for vehicles equipped with an electronic locking axle.
23. Using the adjustable stand, raise the axle and install the new bolt finger tight. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

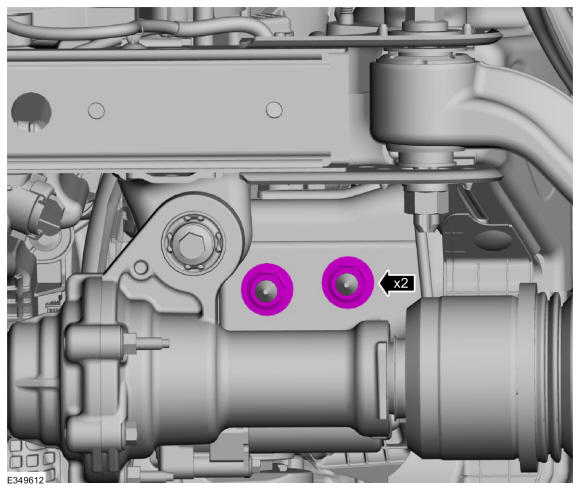

24. Install the new rear axle bolts.

    Torque: Stage 1: 30 lb.ft (40 Nm) | Stage 2: 70°

    Courtesy of FORD MOTOR COMPANY

25. Tighten the bolt and remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

    Torque: 195 lb.ft (265 Nm)

    Courtesy of FORD MOTOR COMPANY

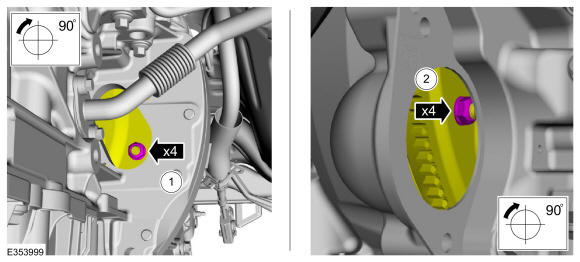

26. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.
    NOTE: Due to limited access and variations in torque wrenches, it may be necessary to tighten the torque converter nuts through the starter hole using an open ended crow foot torque adapter.
    1. Install the new torque converter nuts.
    2. Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas below.

       Torque: 30 lb.ft (40 Nm)

       Courtesy of FORD MOTOR COMPANY

    Courtesy of FORD MOTOR COMPANY

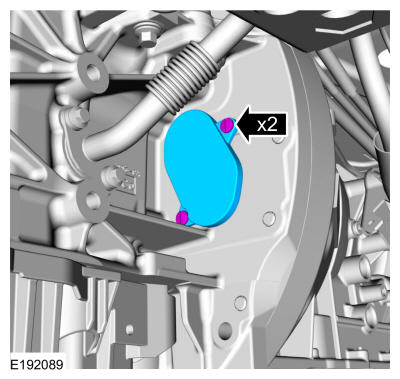

27. Install the access cover and the retainers.

    Courtesy of FORD MOTOR COMPANY

28. NOTE: Left hand (LH) shown, right hand (RH) similar.

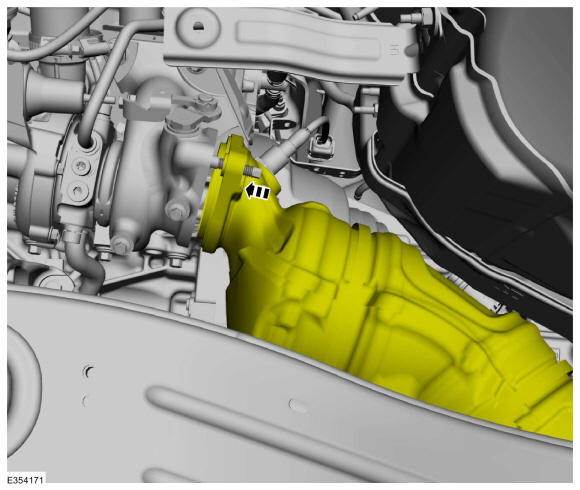

    Position the catalytic converters forward into the installed position.

    Courtesy of FORD MOTOR COMPANY

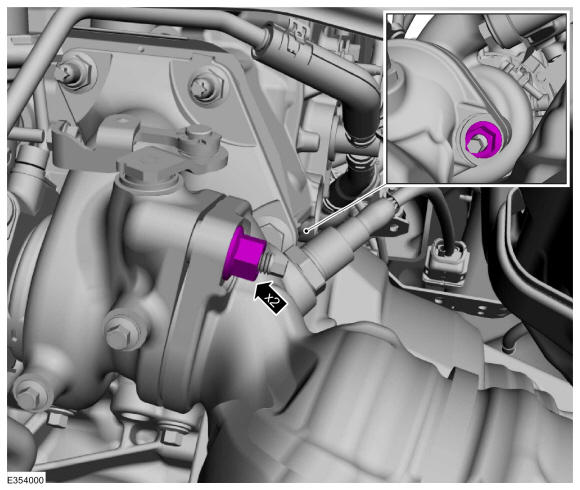

29. Install the LH catalytic converter nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

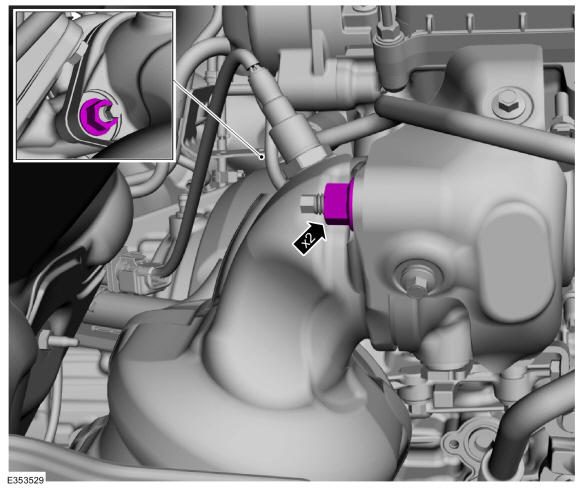

30. Install the RH catalytic converter nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

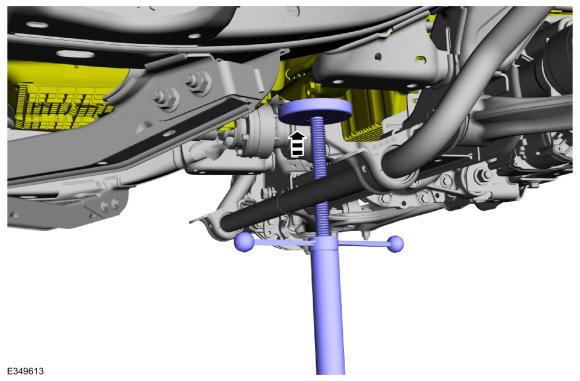

31. • Position an adjustable stand under the rear of the engine/transmission. Use the General Equipment: Vehicle/Axle Stands
    • Using the adjustable stand, raise the engine 38 mm (1.5 in).

    Courtesy of FORD MOTOR COMPANY

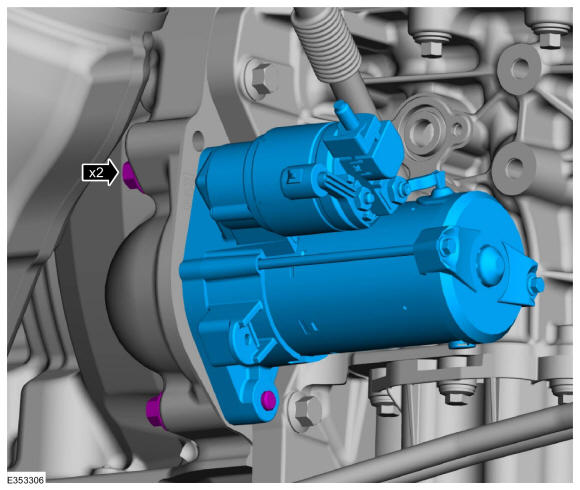

32. Install the starter motor and the bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

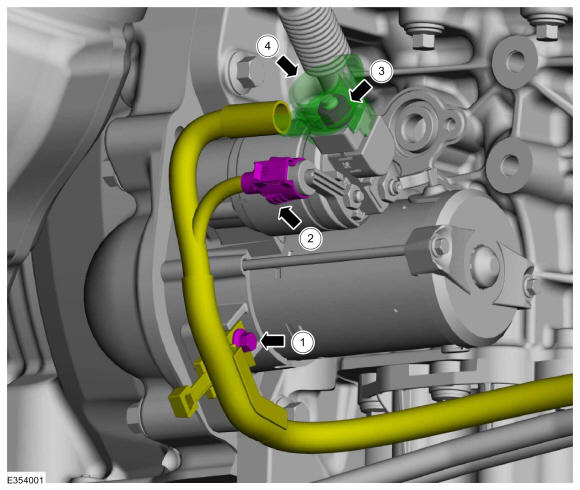

33. 1. Position the wiring harness retainer and install the bolt.

       Torque: 106 lb.in (12 Nm)

    2. Connect the starter electrical connector.
    3. Install the nut.

       Torque: 106 lb.in (12 Nm)

    4. Close the starter motor electrical connection cover.

    Courtesy of FORD MOTOR COMPANY

34. 1. Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle Stands
    2. Remove the stand.

    Courtesy of FORD MOTOR COMPANY

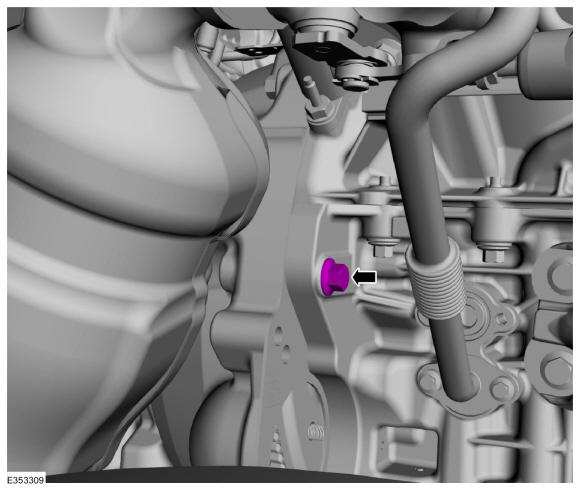

35. Remove and discard the transmission mount nuts.

    Courtesy of FORD MOTOR COMPANY

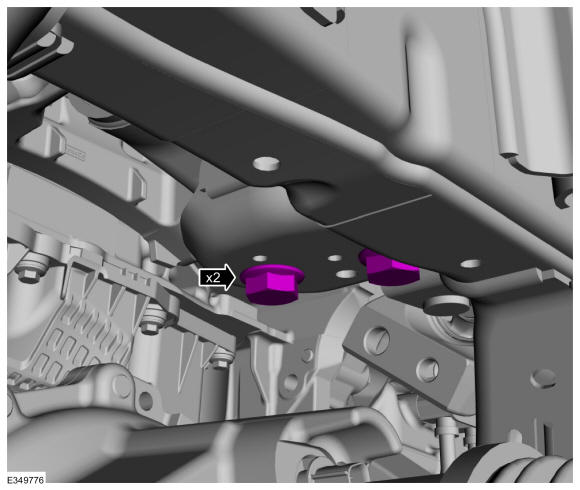

36. Install the new transmission mount nuts and tighten.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

    NOTE: Steps 37 thru 39 are for vehicles with sway bar disconnect. Step 40 is for vehicles with a sway bar.
37. Remove and discard the nuts and position the sway bar disconnect forward.

    Courtesy of FORD MOTOR COMPANY

38. Position the sway bar disconnect and install the new nuts and bolts.

    Torque: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

39. Connect the sway bar disconnect wiring harness electrical connectors and retainers.

    Courtesy of FORD MOTOR COMPANY

40. Position the sway bar and install the new nuts and bolts.

    Torque: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

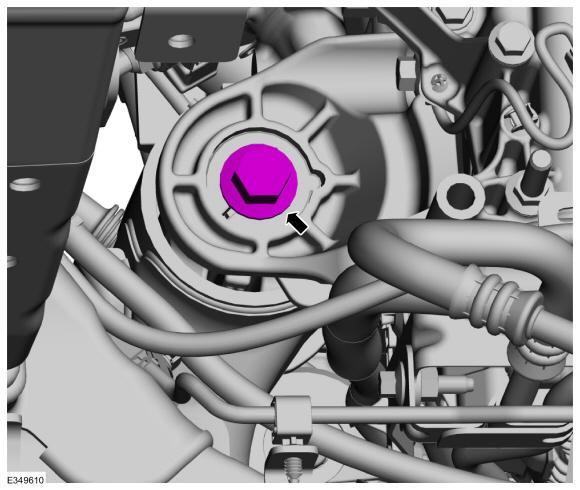

41. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 184 lb.ft (250 Nm)

    Courtesy of FORD MOTOR COMPANY

42. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new RH engine mount through bolt.

    Torque: 184 lb.ft (250 Nm)

    Courtesy of FORD MOTOR COMPANY

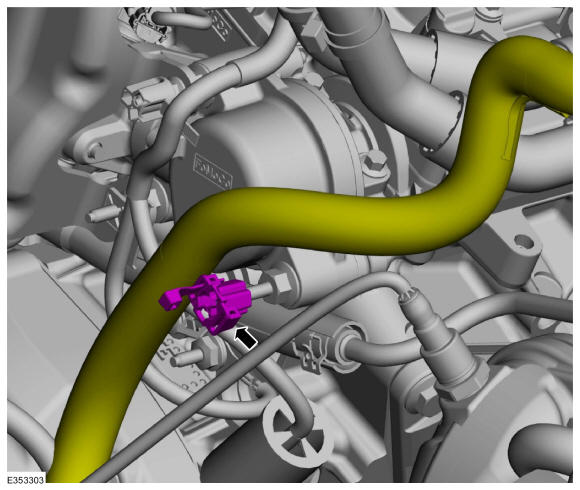

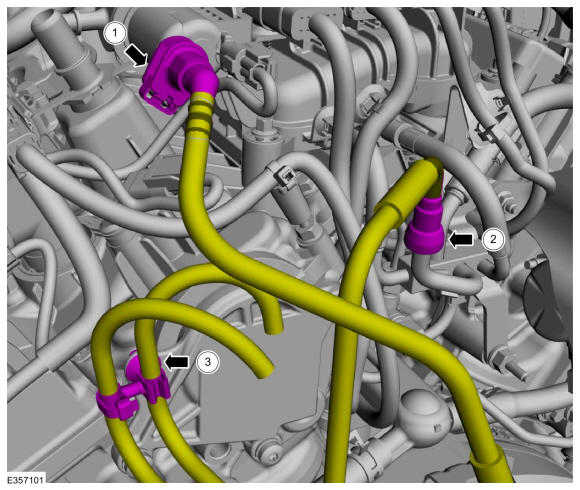

43. 1. Follow directions to connect the quick release coupling type 1. Connect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .
    2. Connect the high-pressure fuel pump fuel feed tube spring lock coupling. Refer to: Spring Lock Couplings .
    3. Attach the transmission vent tube retainer.

    Courtesy of FORD MOTOR COMPANY

44. Attach the transmission wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

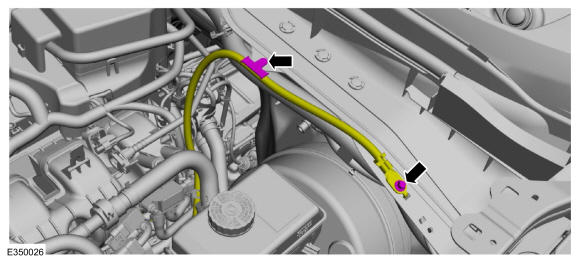

45. Position the ground cable, attach the retainer and install the bolt.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

46. Position the coolant hoses and attach the retainers.

    Courtesy of FORD MOTOR COMPANY

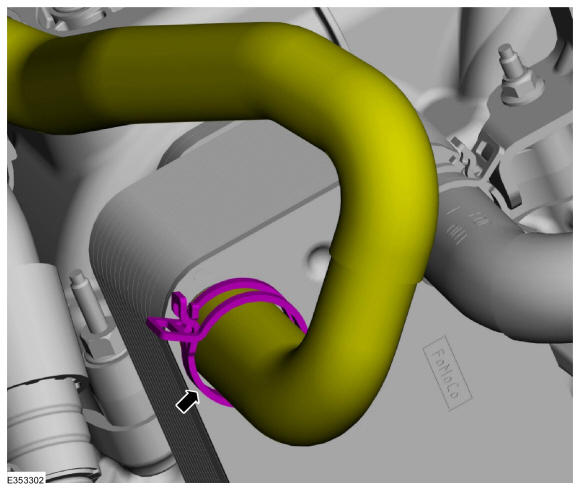

47. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

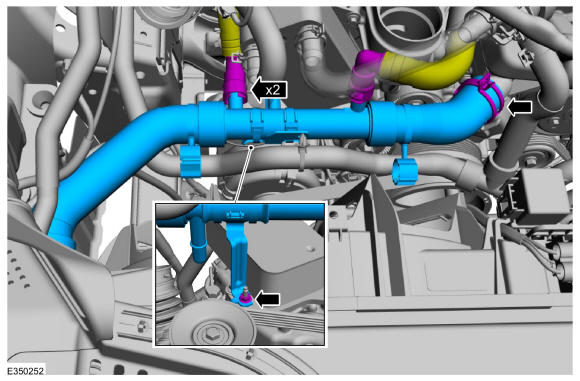

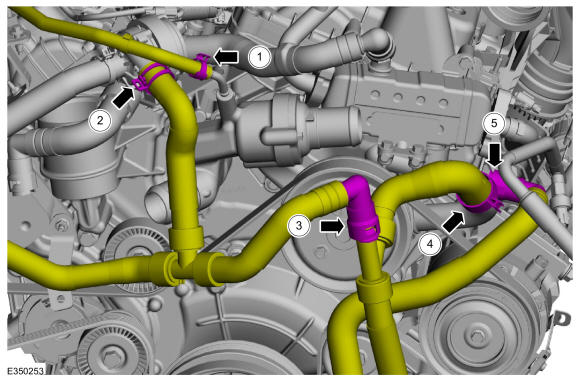

48. 1. Install the degas hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    2. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    3. Follow directions to connect the quick release coupling type 5. Connect the coolant hose and position the hose aside. Refer to: Quick Release Coupling .
    4. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    5. Follow directions to connect the quick release coupling type 5. Connect the coolant hose and position the hose aside. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

49. • Install the radiator hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    • Install the radiator hose bracket nut.

      Torque: 93 lb.in (10.5 Nm)

    • Follow directions to connect the quick release coupling type 5. Connect the coolant hoses. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

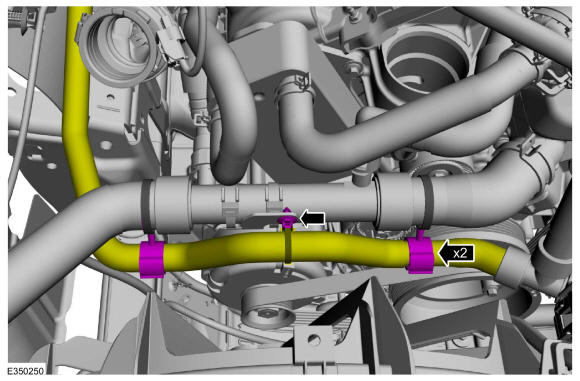

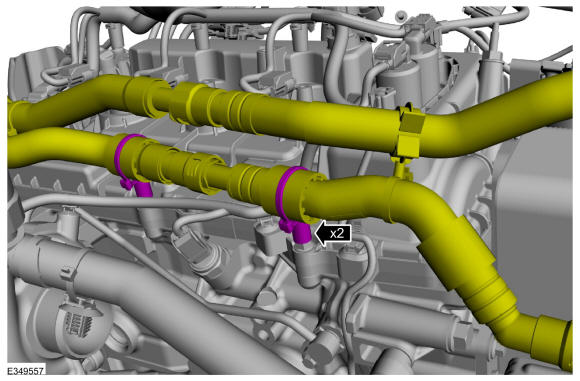

50. Attach the coolant hose retainers.

    Courtesy of FORD MOTOR COMPANY

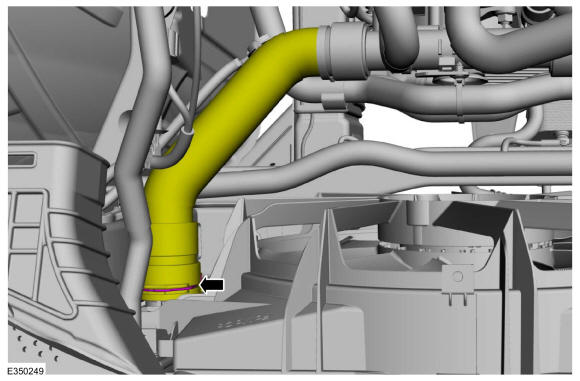

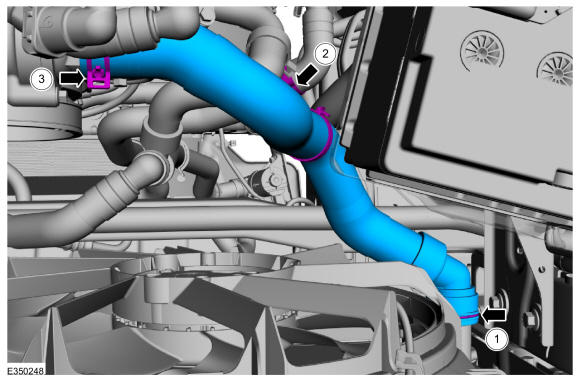

51. Install the radiator hose and the retaining clip.

    Courtesy of FORD MOTOR COMPANY

52. 1. Install the radiator hose and the retaining clip.
    2. Attach the radiator hose retainer.
    3. Connect the radiator hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

53. Follow directions to connect the quick release coupling type 1. Install the EVAP tube. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

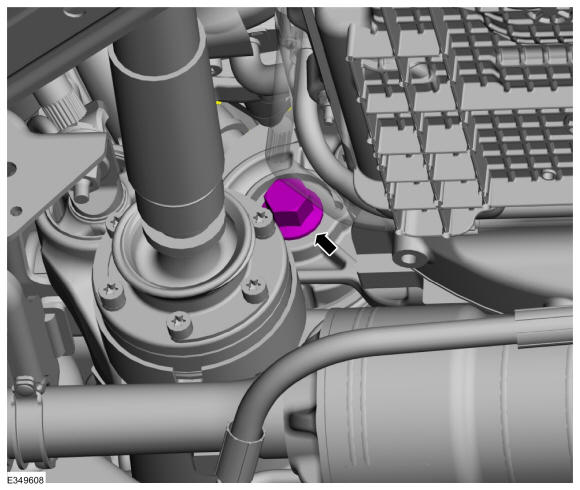

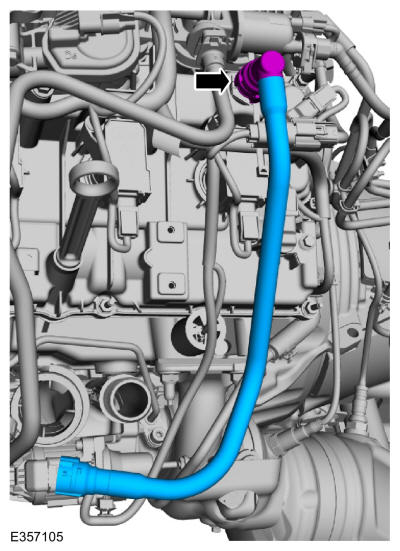

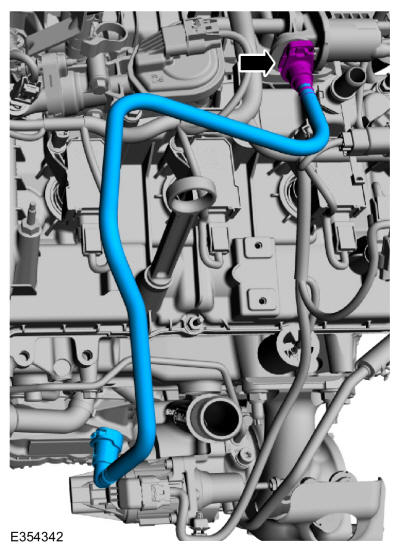

54. Install the new crankcase vent tube.

    Courtesy of FORD MOTOR COMPANY

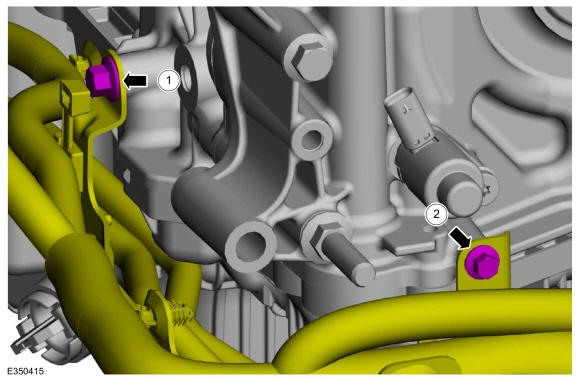

55. Position the bracket and install the bolts.

    Torque: 1: 177 lb.in (20 Nm) 2: 93 lb.in (10.5 Nm)

    Courtesy of FORD MOTOR COMPANY

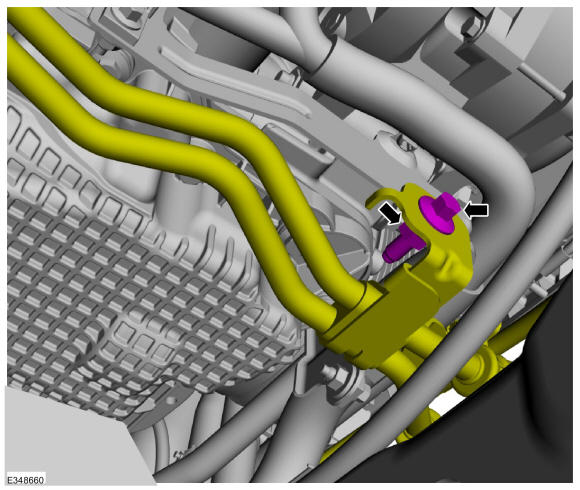

56. Position the transmission cooler tubes and install the bolt and nut.

    Torque: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

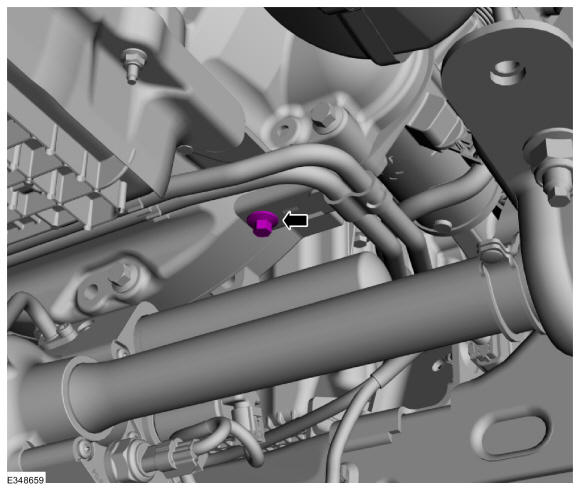

57. Install the transmission cooler tube bracket bolt.

    Torque: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

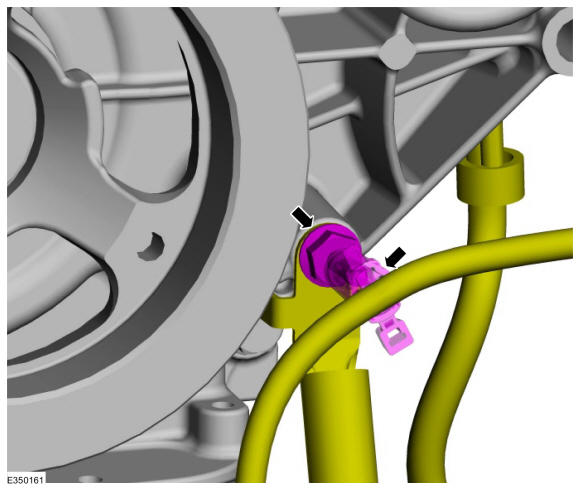

58. 1. Install the ground wire and stud bolt.

       Torque: 177 lb.in (20 Nm)

    2. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

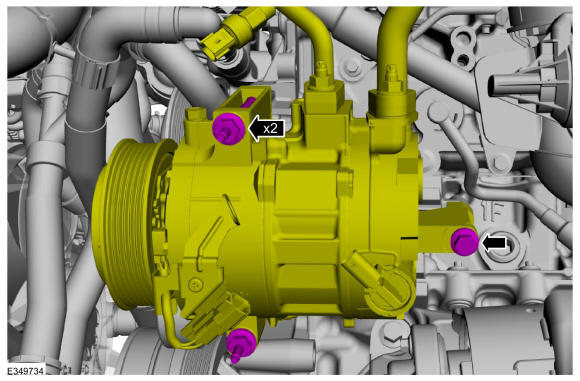

59. Remove the fasteners and position the A/C compressor aside.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

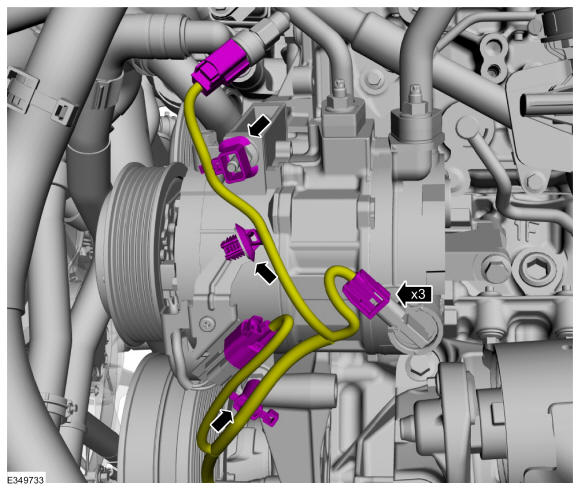

60. 1. Connect the wiring harness electrical connectors.
    2. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

61. Install a new engine oil filter and fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
62. Install the following items:
    1. Generator. Refer to: Generator - 2.7L EcoBoost (238kW/324PS) .
    2. Accessory drive belt. Refer to: Accessory Drive Belt .
    3. Right hand (RH) and left hand (LH) CAC intake pipes. Refer to: CHARGE AIR COOLER (CAC) INTAKE PIPE
    4. Right hand (RH) and left hand (LH) CAC outlet pipes. Refer to: CHARGE AIR COOLER (CAC) OUTLET PIPE
    5. Right hand (RH) and left hand (LH) air cleaner outlet pipes. Refer to: Air Cleaner Outlet Pipe RH . Refer to: Air Cleaner Outlet Pipe LH .
    6. PCM Cowl panel. Refer to: Powertrain Control Module (PCM) .
    7. Hood. Refer to: Hood .

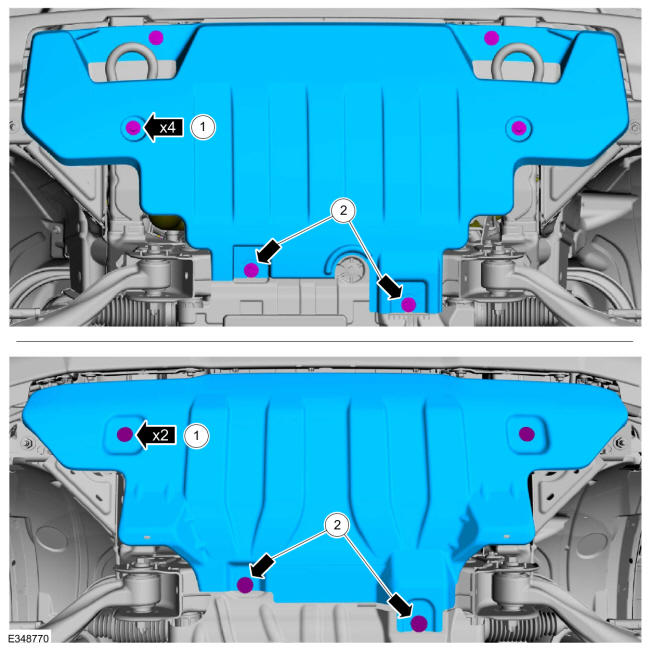

63. NOTE: If equipped.
    1. Install the underbody shield and the bolts.

       Torque: 22 lb.ft (30 Nm)

    2. Tighten the bolts.

       Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

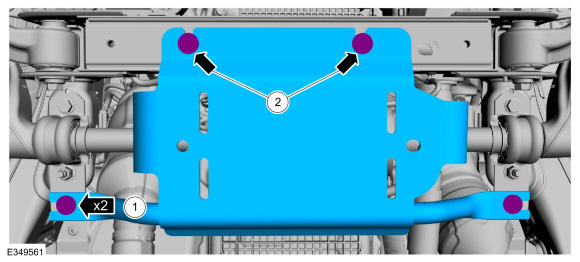

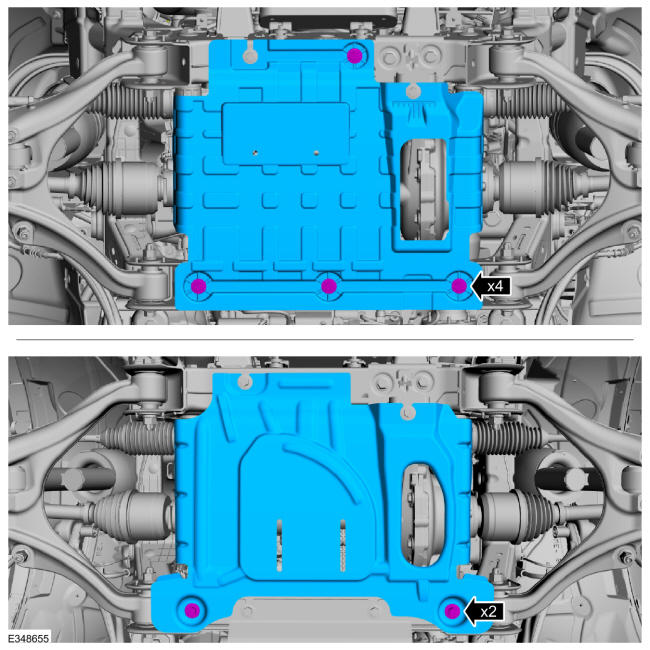

64. NOTE: Underbody shields vary by model.

    Install the underbody shield and the bolts.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

65. NOTE: Underbody shields vary by model.
    1. Install the underbody shield and the bolts.

       Torque: 22 lb.ft (30 Nm)

    2. Tighten the bolts.

       Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

66. Install the RH and LH fender splash shields. Refer to: Fender Splash Shield .
67. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
68. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
69. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
70. Start and check the exhaust system for leaks.
71. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
72. Road test the vehicle.
