Section 2 (Engine - 2.7L ECOBOOST (238KW/324PS)): Disassembly: Engine

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar | TKIT-2006UF-FLM | TKIT-2006UF-ROW

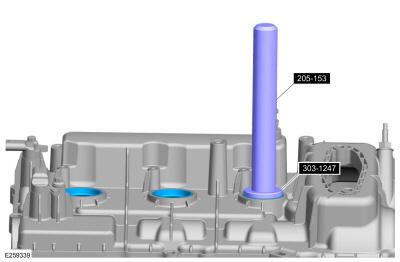

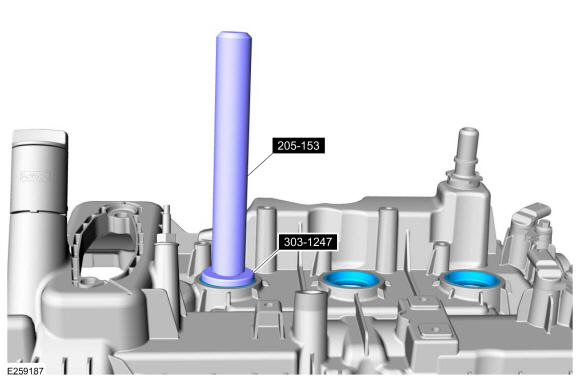

Courtesy of FORD MOTOR COMPANY	303-1247 VCT Spark Plug Tube Seal Remover and Installer | TKIT-2006UF-FLM | TKIT-2006UF-ROW

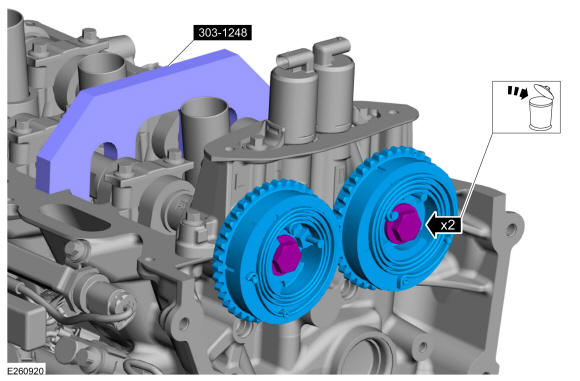

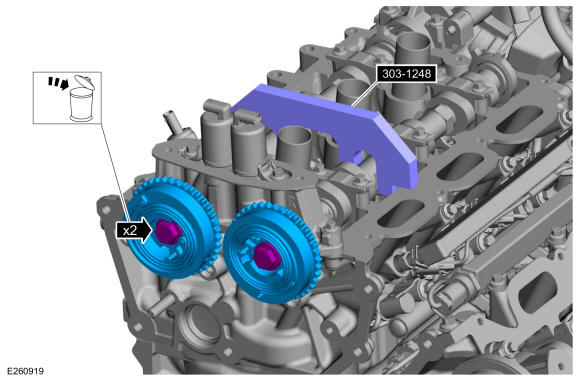

Courtesy of FORD MOTOR COMPANY	303-1248 Camshaft holding tools | TKIT-2006UF-FLM | TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) | TKIT-2014D-ROW3 | TKIT-2014D-FL_ROW

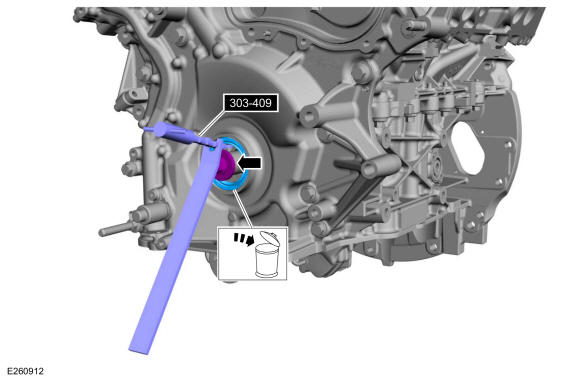

Courtesy of FORD MOTOR COMPANY	303-409 (T92C-6700-CH) Remover, Crankshaft Seal | TKIT-1992-FH/FMH/FLMH | TKIT-1993-LMH/MH
Floor Crane
Mounting Stand
Hose Clamp Remover/Installer
Flat-Bladed Screwdriver

Materials

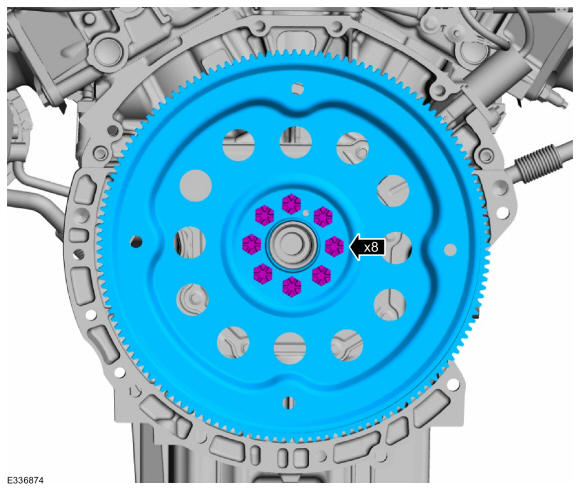

1. Remove the bolts and the flexplate.

   Courtesy of FORD MOTOR COMPANY

2. Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.

   Courtesy of FORD MOTOR COMPANY

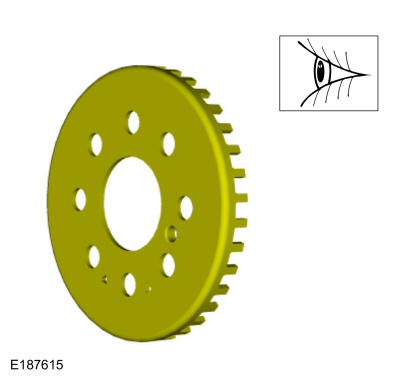

3. Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be replaced.

   Courtesy of FORD MOTOR COMPANY

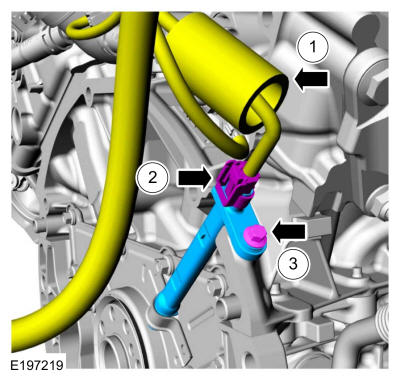

4. 1. Reposition the CKP sensor electrical connector insulator.
   2. Disconnect the CKP sensor electrical connector.
   3. Remove the bolt and the CKP sensor.

   Courtesy of FORD MOTOR COMPANY

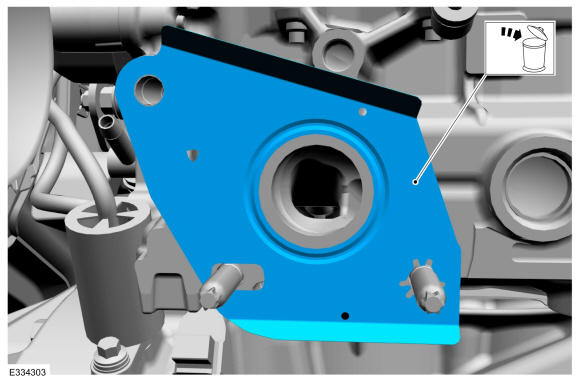

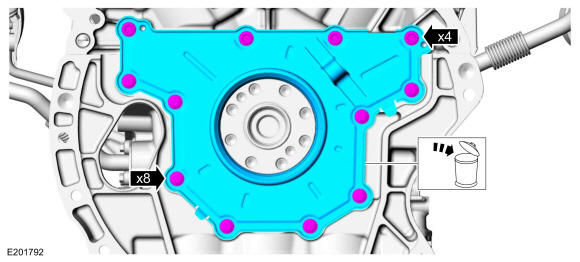

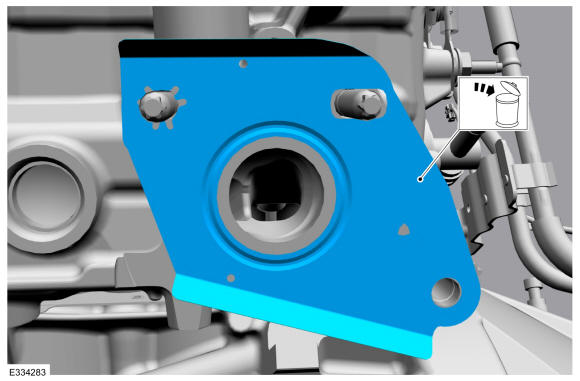

5. Remove the bolts and the crankshaft rear seal and retainer plate.
   • Discard the crankshaft rear seal and retainer plate.

   Courtesy of FORD MOTOR COMPANY

6. Using a floor crane, install the engine on a mounting stand. Use the General Equipment: Floor Crane. Use the General Equipment: Mounting Stand

   Courtesy of FORD MOTOR COMPANY

7. Remove Special Service Tool: 303-1634 Lift Eyes (2), 303-1246 Engine Spreader Bar.

   Courtesy of FORD MOTOR COMPANY

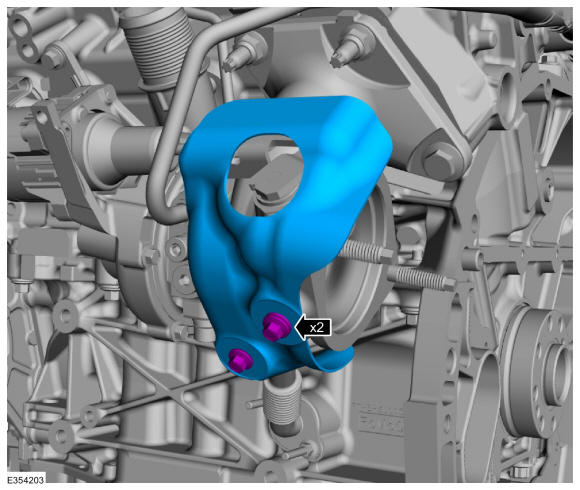

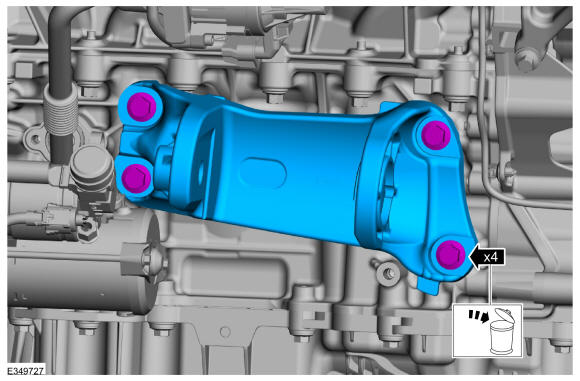

8. • Remove the bolts and the RH engine mount bracket.
   • Discard the bolts.

   Courtesy of FORD MOTOR COMPANY

9. Follow directions to release the quick release coupling type 3. Remove the crankcase vent tube. Refer to: Quick Release Coupling .

   Courtesy of FORD MOTOR COMPANY

10. 1. Disconnect the throttle body electrical connector.
    2. Disconnect the differential pressure feedback EGR sensor electrical connector.
    3. Disconnect the MAP sensor electrical connector.
    4. Disconnect the cabin heater coolant pump electrical connector.
    5. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

11. Detach the wiring harness connector retainers.

    Courtesy of FORD MOTOR COMPANY

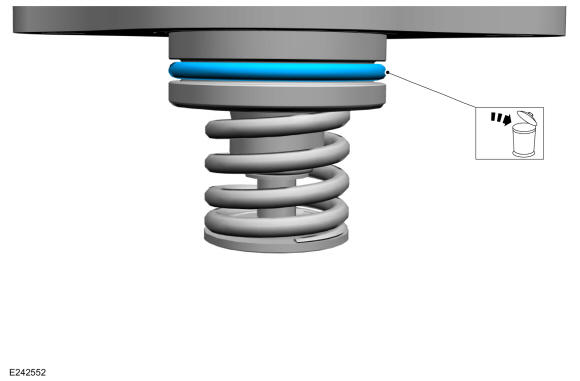

12. 1. Remove the nut.

       Torque: 53 lb.in (6 Nm)

    2. Release the clamps and remove the differential pressure feedback EGR sensor.

    Courtesy of FORD MOTOR COMPANY

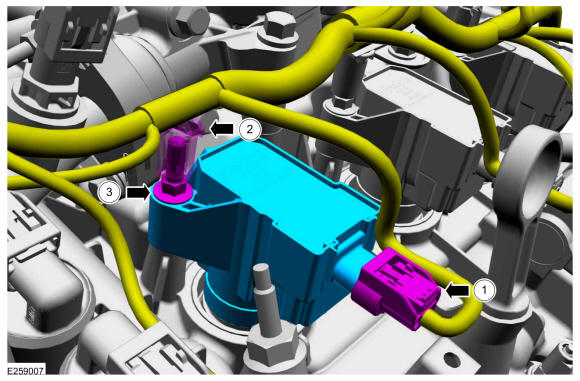

13. 1. Disconnect the ignition coil-on-plug electrical connector.
    2. Detach the wiring harness retainer.
    3. Remove the stud bolt and the ignition coil-on-plug.

       Torque: 53 lb.in (6 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Remove the EGR tube bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

15. 1. Remove the EGR tube nuts.
    2. Disconnect the engine wiring harness electrical connectors.
    3. Detach the engine wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

16. Remove the bolts and the EGR valve assembly.

    Courtesy of FORD MOTOR COMPANY

17. • Remove and discard the gasket.
    • Clean and inspect all sealing surfaces.

    Courtesy of FORD MOTOR COMPANY

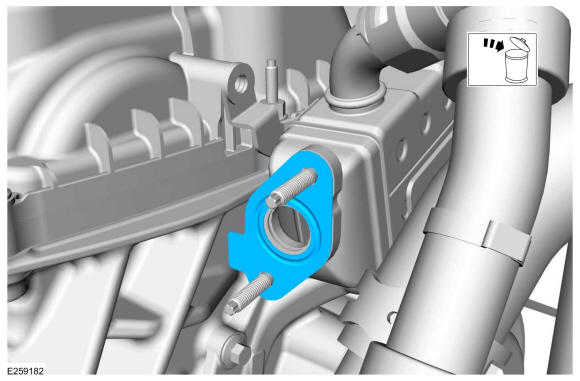

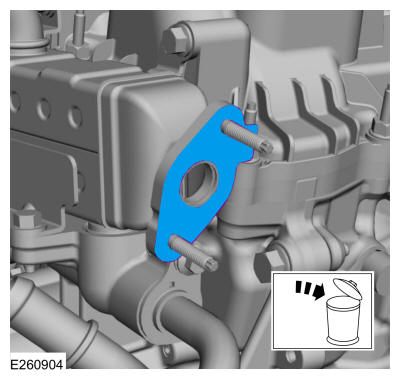

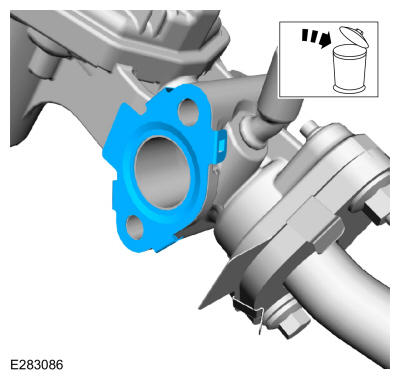

18. Remove and discard the EGR tube gasket.

    Courtesy of FORD MOTOR COMPANY

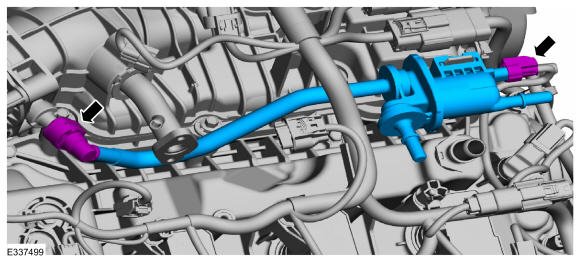

19. 1. Disconnect the EVAP canister purge valve electrical connector.
    2. Follow directions to release the quick release coupling type 19. Disconnect the EVAP canister purge valve vapor tube. Refer to: Quick Release Coupling .
    3. Remove the EVAP canister purge valve.

    Courtesy of FORD MOTOR COMPANY

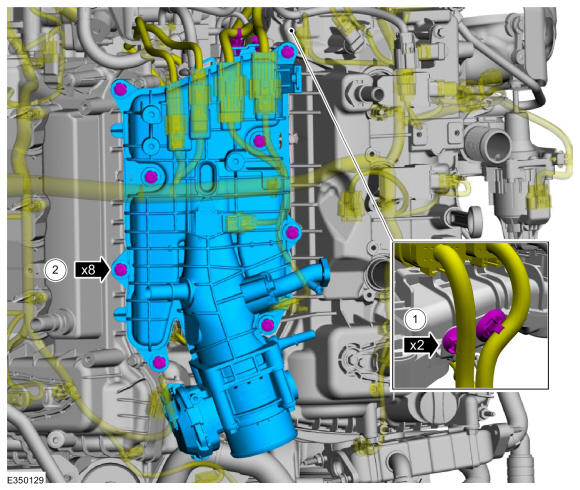

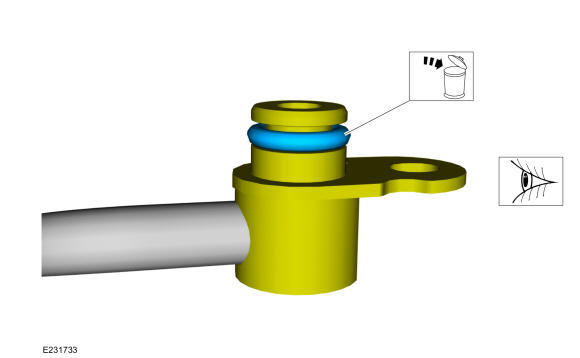

20. 1. Detach the wiring harness retainers from the rear of the intake manifold.
    2. Loosen the bolts and remove the intake manifold.

    Courtesy of FORD MOTOR COMPANY

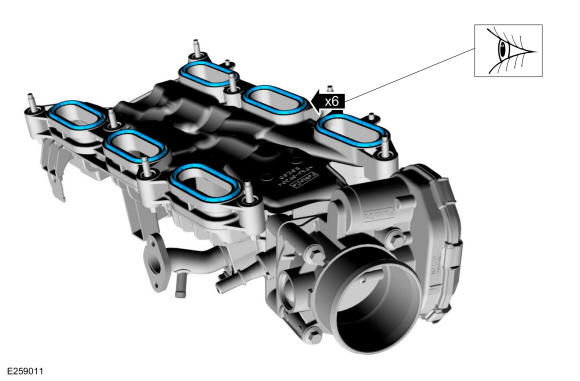

21. • Remove and inspect the gaskets, replace as necessary.
    • Clean and inspect all sealing surfaces.

    Courtesy of FORD MOTOR COMPANY

22. Disconnect and remove the EGR coolant hose.

    Courtesy of FORD MOTOR COMPANY

23. 1. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

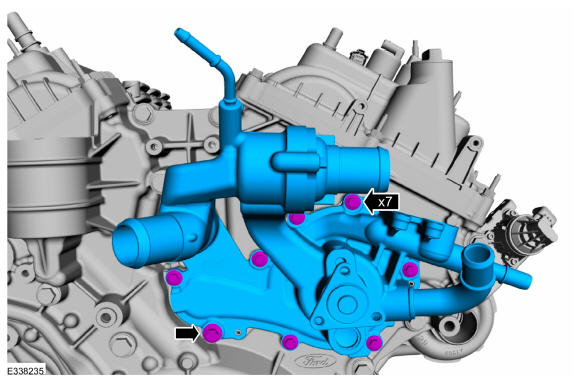

    2. Remove the bolts and the coolant pump.

    Courtesy of FORD MOTOR COMPANY

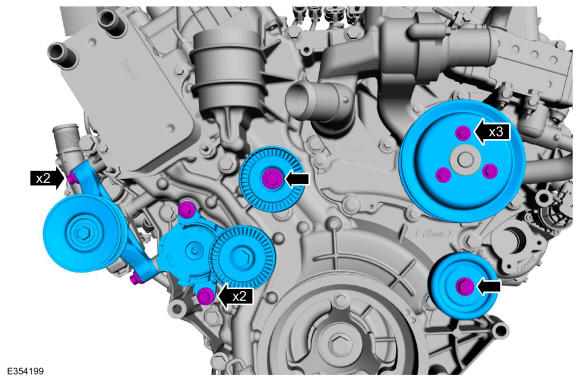

24. 1. Remove the bolts and the coolant pump pulley.
    2. Remove the bolt and the idler pulley.
    3. Remove the bolt and the idler pulley.
    4. Remove the bolts and the idler pulley and bracket assembly.
    5. Remove the bolts, and the accessory drive belt tensioner.

    Courtesy of FORD MOTOR COMPANY

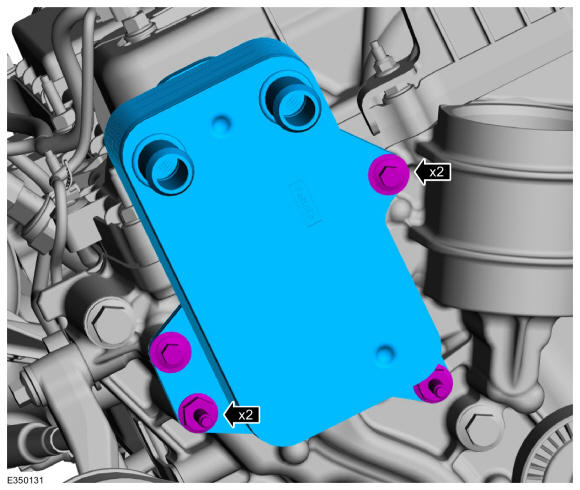

25. Remove the fasteners and the oil cooler.

    Courtesy of FORD MOTOR COMPANY

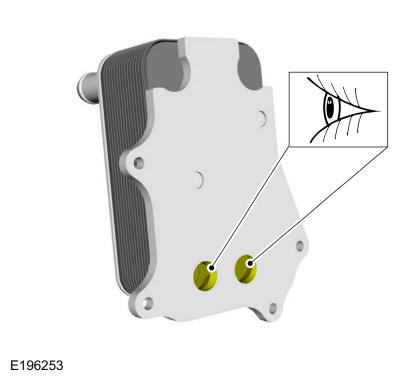

26. Inspect the oil cooler. If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. Refer to: Engine .

    Courtesy of FORD MOTOR COMPANY

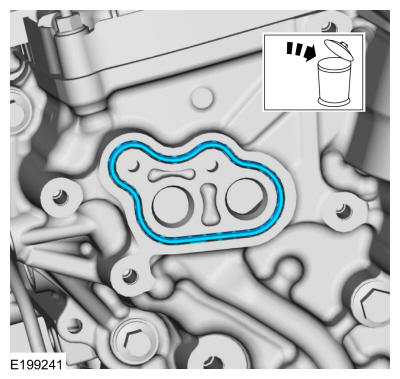

27. Remove and discard the oil cooler gasket.

    Courtesy of FORD MOTOR COMPANY

28. Remove the oil level indicator.

    Courtesy of FORD MOTOR COMPANY

29. 1. Disconnect the KS wiring harness connector.
    2. Detach the wiring harness retainers.
    3. Remove the bolt and the ground wire.
    4. Remove the stud bolt and the position wiring harness ground terminal aside.

    Courtesy of FORD MOTOR COMPANY

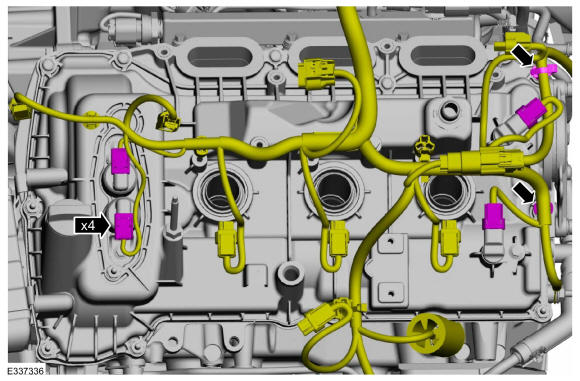

30. 1. Disconnect the ignition coil-on-plugs electrical connectors.
    2. Detach the engine wiring harness retainers.
    3. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

       Remove the stud bolts and the ignition coils.

    Courtesy of FORD MOTOR COMPANY

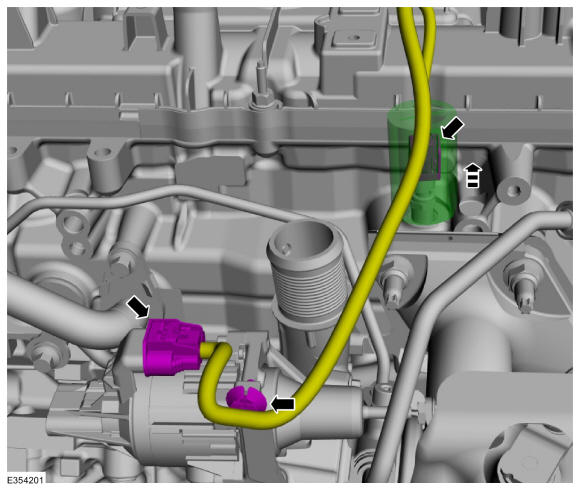

31. 1. Slide the insulator up.
    2. Disconnect the CHT sensor electrical connector.
    3. Disconnect the wastegate control actuator electrical connector.
    4. Detach the engine wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

32. 1. Disconnect the engine wiring harness electrical connectors.
    2. Detach the engine wiring harness retainers and position the harness aside.

    Courtesy of FORD MOTOR COMPANY

33. Disconnect the oil control solenoid electrical connector and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

34. 1. Disconnect the wastegate control actuator and oil pressure sensor electrical connectors.
    2. Detach the retainers and position the engine wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

35. 1. Disconnect the fuel pump electrical connector.
    2. Detach the wiring harness retainers.
    3. Remove the stud bolt and the wiring harness ground terminal.

    Courtesy of FORD MOTOR COMPANY

36. 1. Disconnect the ignition coil-on-plugs electrical connectors.
    2. Detach the engine wiring harness retainers.
    3. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

       Remove the stud bolts and the ignition coils.

    Courtesy of FORD MOTOR COMPANY

37. 1. Disconnect the engine wiring harness electrical connectors.
    2. Detach the retainers and position the engine wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

38. Disconnect the engine wiring harness electrical connectors and remove the engine wiring harness from the engine.

    Courtesy of FORD MOTOR COMPANY

39. Remove the retainers, then remove the high-pressure fuel pump shield.

    Courtesy of FORD MOTOR COMPANY

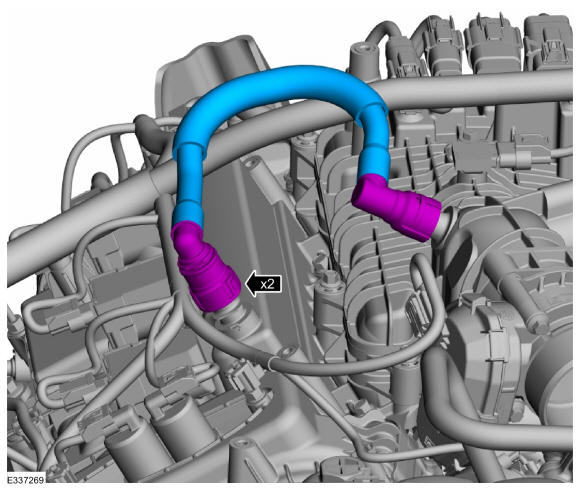

40. Disconnect the quick release couplings. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

41. 1. Detach the wiring harness retainers.
    2. Disconnect the fuel supply quick connect coupling. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

42. Remove the stud bolts and the fuel supply manifold.

    Courtesy of FORD MOTOR COMPANY

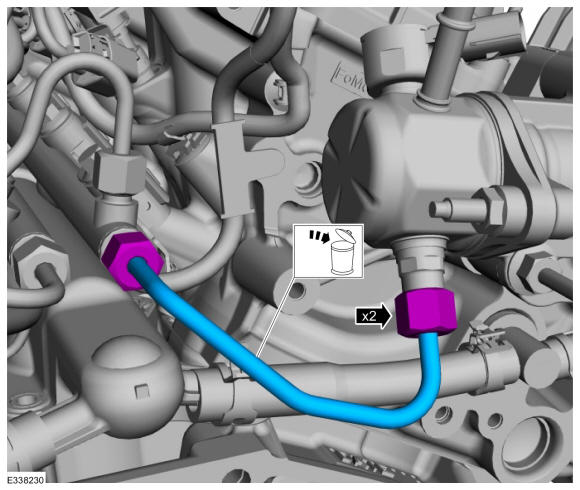

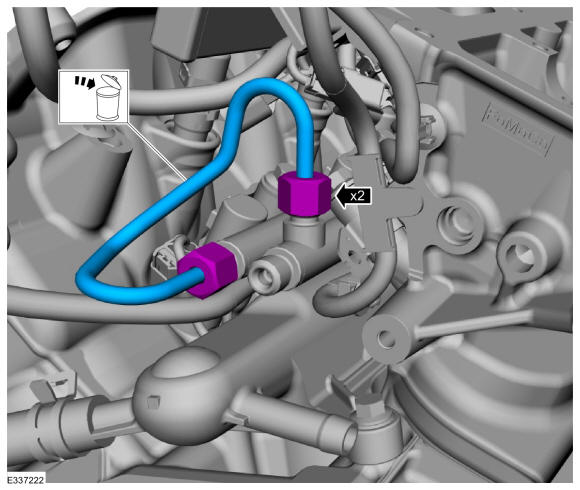

43. 1. NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of high-pressure fuel tube flare nuts.
    2. Disconnect the fuel tube flare nuts, then remove and discard the fuel tube.

    Courtesy of FORD MOTOR COMPANY

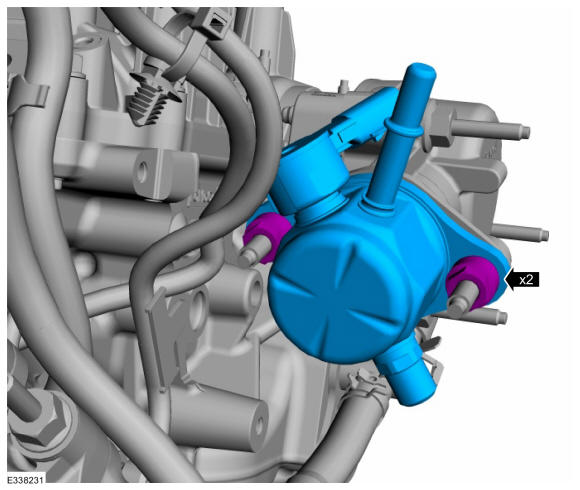

44. Alternately loosen the high-pressure fuel pump nuts one complete revolution at a time. Remove the high-pressure fuel pump nuts, then remove the high-pressure fuel pump.

    Courtesy of FORD MOTOR COMPANY

45. Remove and discard the high-pressure fuel pump O-ring seal.

    Courtesy of FORD MOTOR COMPANY

46. Remove the high-pressure fuel pump tappet.

    Courtesy of FORD MOTOR COMPANY

47. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as needed.

    Courtesy of FORD MOTOR COMPANY

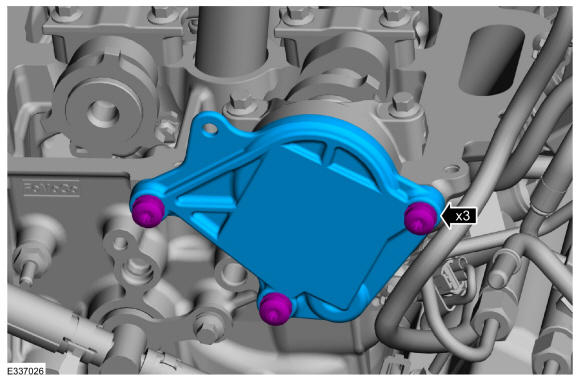

48. Remove the stud bolts and the high-pressure fuel pump drive unit.

    Courtesy of FORD MOTOR COMPANY

49. Remove the nuts, the bolts and the EGR tube.

    Courtesy of FORD MOTOR COMPANY

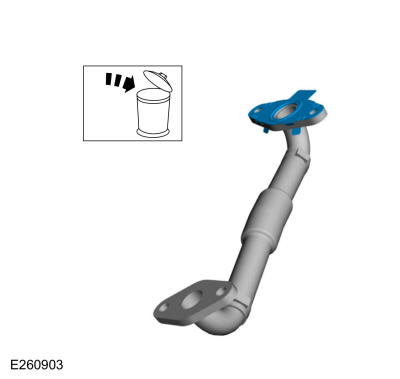

50. Remove and discard the EGR tube gasket.

    Courtesy of FORD MOTOR COMPANY

51. Remove and discard the EGR tube gasket.

    Courtesy of FORD MOTOR COMPANY

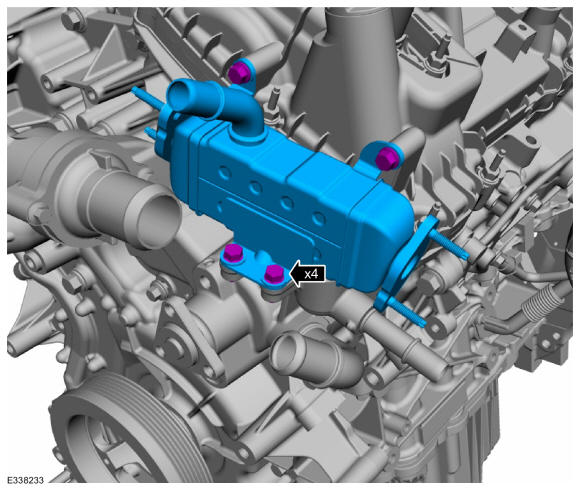

52. Remove the bolts and the EGR cooler.

    Courtesy of FORD MOTOR COMPANY

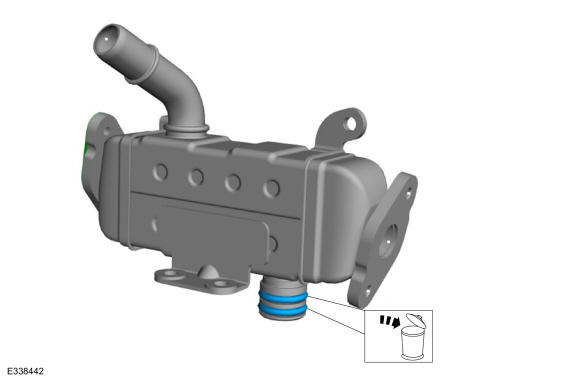

53. Remove and discard the EGR cooler O-ring seals.

    Courtesy of FORD MOTOR COMPANY

54. Remove the bolts and the coolant pump.

    Courtesy of FORD MOTOR COMPANY

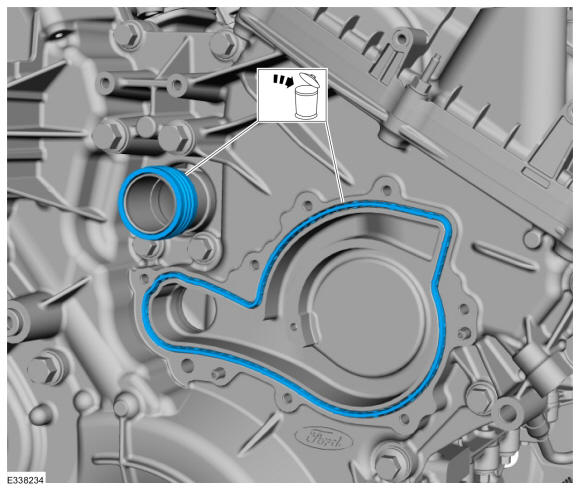

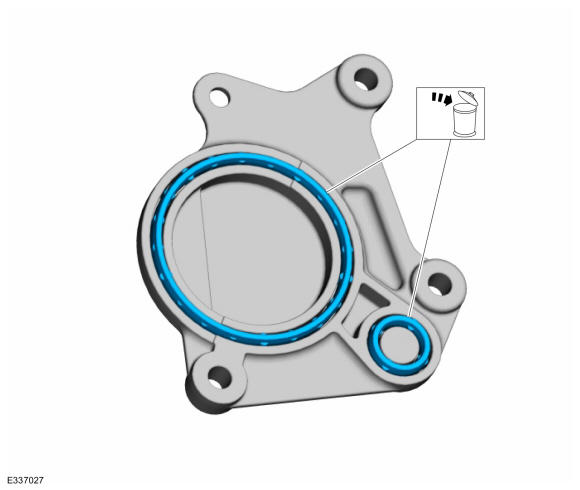

55. NOTE: The grommet may remain in the coolant pump housing. If this occurs, remove the grommet from the coolant pump housing.

    Remove and discard the coolant pump gasket and seal.

    Courtesy of FORD MOTOR COMPANY

56. Remove bolts and the LH turbocharger heat shield.

    Courtesy of FORD MOTOR COMPANY

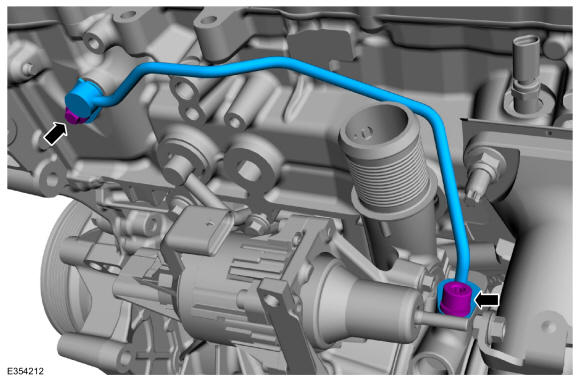

57. Remove the turbocharger coolant return tube bolt, loosen the spring clamp, then disconnect and remove the turbocharger coolant return tube. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

58. 1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

       Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

       Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. Remove and discard the O-ring seal.

    Courtesy of FORD MOTOR COMPANY

59. Remove the bolts and the turbocharger oil supply tube.

    Courtesy of FORD MOTOR COMPANY

60. 1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

       Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

       Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. Remove and discard the O-ring seals and the turbocharger oil supply tube oil filter.

    Courtesy of FORD MOTOR COMPANY

61. Remove the bolts and the turbocharger oil return tube.

    Courtesy of FORD MOTOR COMPANY

62. 1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

       Inspect for blockage in the turbocharger tube. Check the tube, the sealing surfaces and the flange for flatness and damage. Use brake cleaner and a nylon brush to clean. Install new components as needed.

       Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

       Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

       Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    3. Remove and discard the O-ring seal.

    Courtesy of FORD MOTOR COMPANY

63. Remove and discard the oil return tube tube-to-engine block gasket.

    Courtesy of FORD MOTOR COMPANY

64. Remove the TC coolant supply tube bolt.

    Courtesy of FORD MOTOR COMPANY

65. NOTE: Remove the TC coolant supply tube from the engine block while removing the TC.

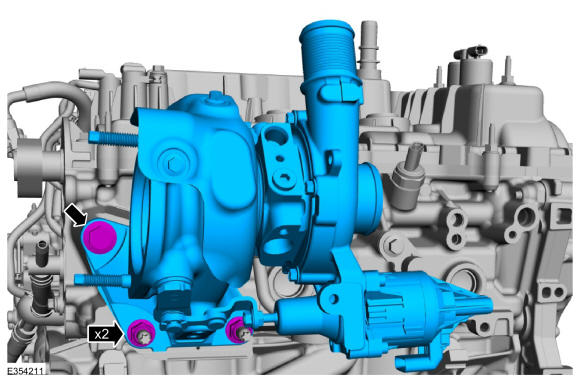

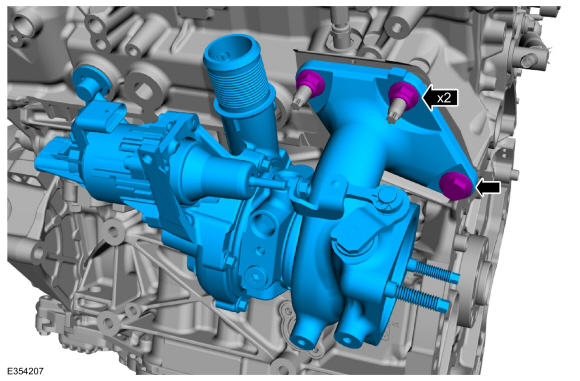

    Remove the retainers and the TC.

    Courtesy of FORD MOTOR COMPANY

66. 1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

       Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

       Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. Remove and discard the O-ring seal.

    Courtesy of FORD MOTOR COMPANY

67. Remove and discard the turbocharger gasket.

    Courtesy of FORD MOTOR COMPANY

68. Remove the turbocharger mounting studs if needed.

    Courtesy of FORD MOTOR COMPANY

69. If needed remove the bolt, then remove the turbocharger coolant supply tube.

    Courtesy of FORD MOTOR COMPANY

70. 1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

       Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

       Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. If the turbocharger coolant supply tube was removed from the turbocharger, then remove and discard the O-ring seal.

    Courtesy of FORD MOTOR COMPANY

71. Remove the turbocharger coolant return tube bolt, loosen the spring clamp, then disconnect and remove the turbocharger coolant return tube. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

72. NOTE: Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Remove and discard the turbocharger coolant return tube O-ring seal.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

73. Remove the bolts and the TC oil supply tube.

    Courtesy of FORD MOTOR COMPANY

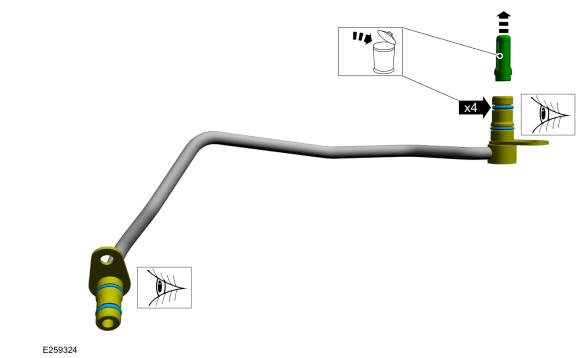

74. NOTE: Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Remove and discard the turbocharger oil supply tube O-ring seals and the turbocharger oil supply tube oil filter.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

75. Remove the bolts and the TC oil return tube.

    Courtesy of FORD MOTOR COMPANY

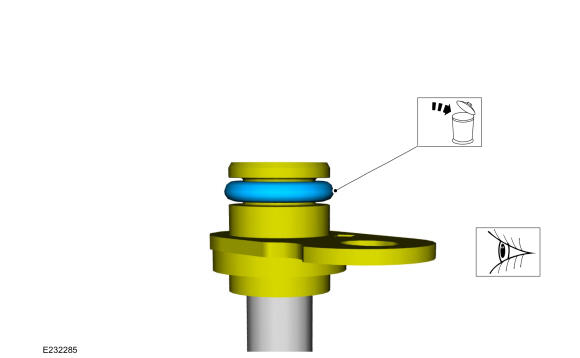

76. NOTE: Inspect for blockage in the turbocharger tube. Check the tube, the sealing surfaces and the flange for flatness and damage. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    NOTE: Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Remove and discard the turbocharger oil return tube O-ring seal.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

77. Remove and discard the TC oil return tube tube-to-engine block gasket.

    Courtesy of FORD MOTOR COMPANY

78. Remove the TC coolant supply tube bolt.

    Courtesy of FORD MOTOR COMPANY

79. NOTE: Remove the TC coolant supply tube from the engine block while removing the TC.

    Remove the retainers and the TC.

    Courtesy of FORD MOTOR COMPANY

80. Remove and discard the turbocharger gasket.

    Courtesy of FORD MOTOR COMPANY

81. Remove the turbocharger mounting studs if needed.

    Courtesy of FORD MOTOR COMPANY

82. If needed remove the bolt, then remove the turbocharger coolant supply tube.

    Courtesy of FORD MOTOR COMPANY

83. 1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

       Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

       Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. If the turbocharger coolant supply tube was removed from the turbocharger, then remove and discard the O-ring seal.

    Courtesy of FORD MOTOR COMPANY

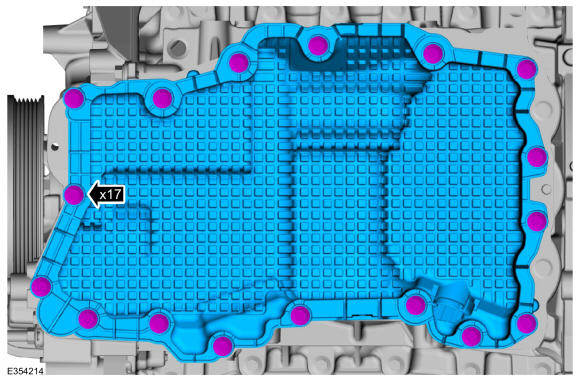

84. Remove the bolts and the oil pan.

    Courtesy of FORD MOTOR COMPANY

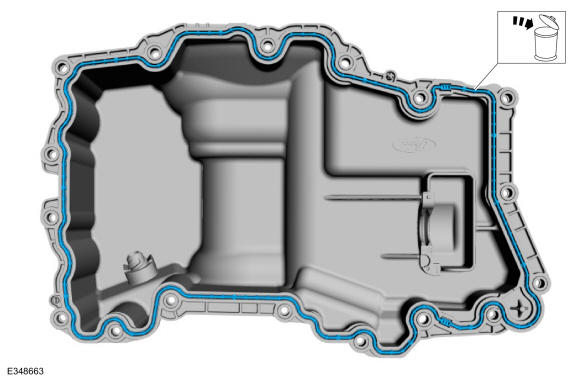

85. Remove and discard the oil pan press-in-place gasket.

    Courtesy of FORD MOTOR COMPANY

86. Remove the nut and the bracket.

    Courtesy of FORD MOTOR COMPANY

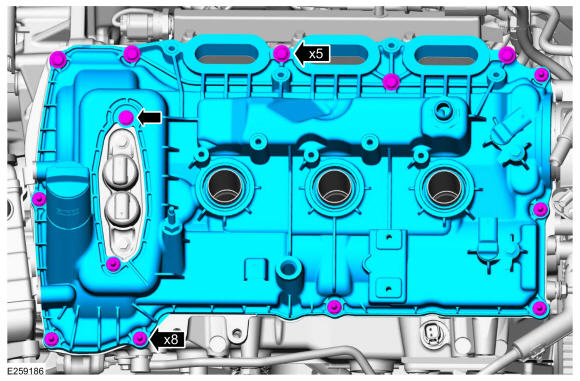

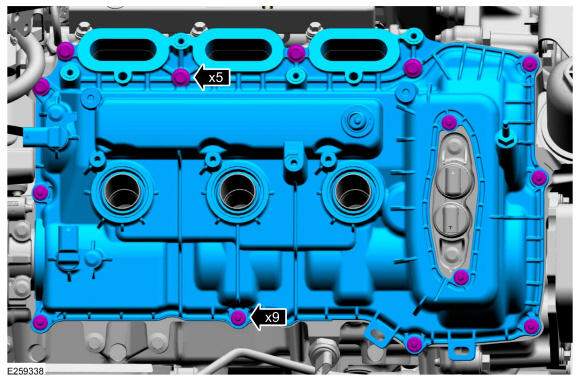

87. Loosen the fasteners and remove the valve cover.

    Courtesy of FORD MOTOR COMPANY

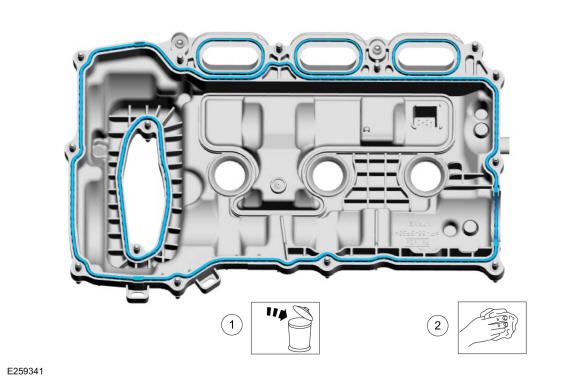

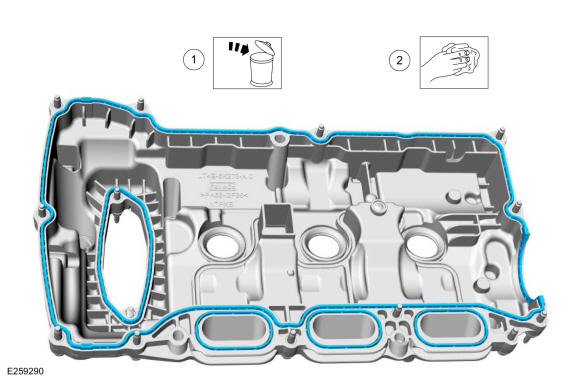

88. 1. Remove and discard the gasket.
    2. Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Courtesy of FORD MOTOR COMPANY

89. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

90. Loosen the fasteners and remove the valve cover.

    Courtesy of FORD MOTOR COMPANY

91. 1. Remove and discard the gasket.
    2. Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Courtesy of FORD MOTOR COMPANY

92. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

93. Remove the bolts and the cover.

    Courtesy of FORD MOTOR COMPANY

94. Remove and discard the gaskets.

    Courtesy of FORD MOTOR COMPANY

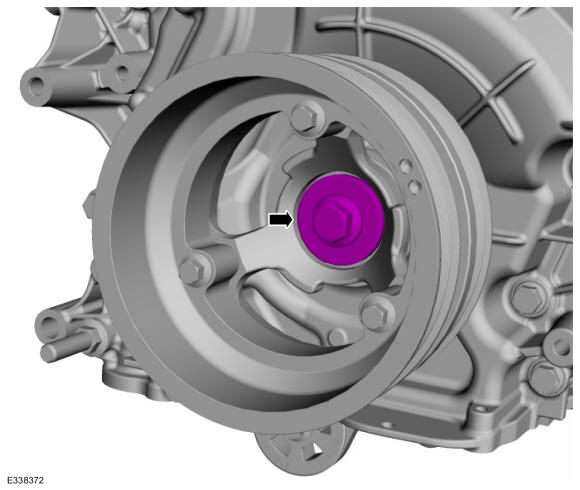

95. Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

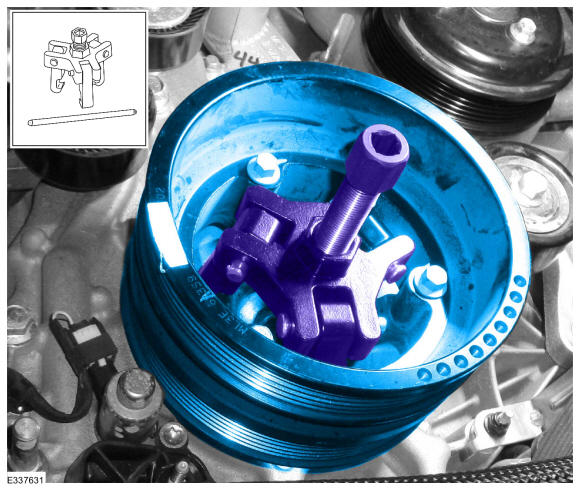

96. NOTE: Use a universal puller (such as an OTC 6667, or equivalent).
    NOTE: Dual generator engine shown, single generator similar.

    Using a universal puller, remove the crankshaft pulley.

    Courtesy of FORD MOTOR COMPANY

97. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.
    1. Install the original crankshaft pulley bolt.
    2. Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. NOTE: Retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

       Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

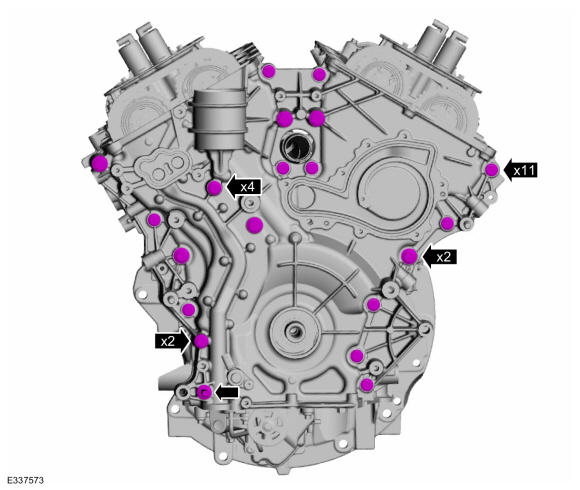

98. NOTE: There are 5 different types of fasteners, note location of each fastener for assembly.

    Remove the engine front cover fasteners.

    Courtesy of FORD MOTOR COMPANY

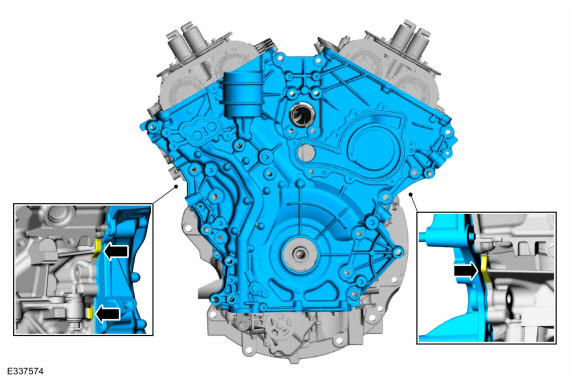

99. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and remove the engine front cover. Use the General Equipment: Flat-Bladed Screwdriver

    Courtesy of FORD MOTOR COMPANY

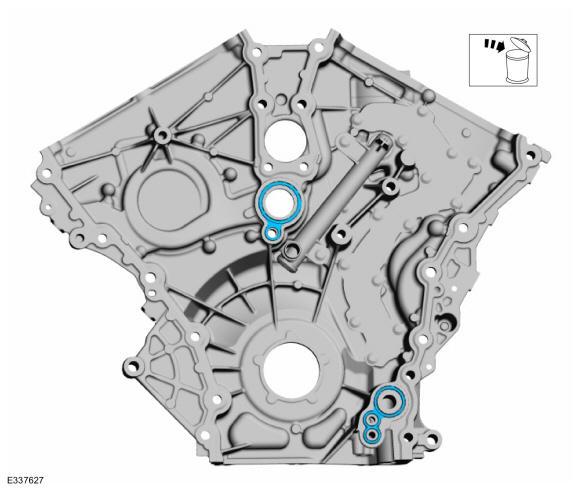

100. Remove and discard the engine front cover gaskets.

     Courtesy of FORD MOTOR COMPANY

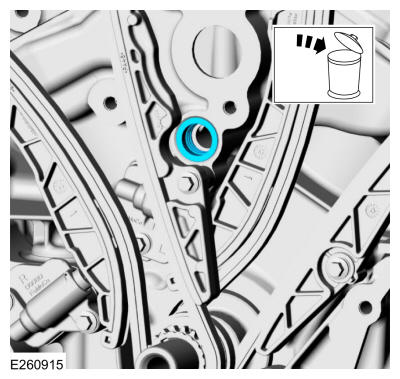

101. Remove and discard the oil gallery seal (6G068).

     Courtesy of FORD MOTOR COMPANY

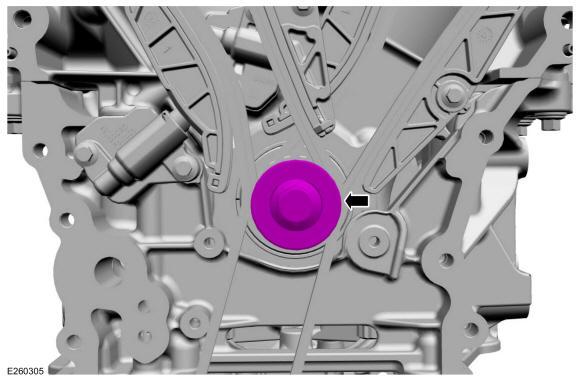

102. NOTE: Rotate the crankshaft utilizing only the original crankshaft pulley bolt. Failure to follow this direction may cause damage to the crankshaft and result in engine failure.

     Install the original crankshaft pulley bolt.

     Courtesy of FORD MOTOR COMPANY

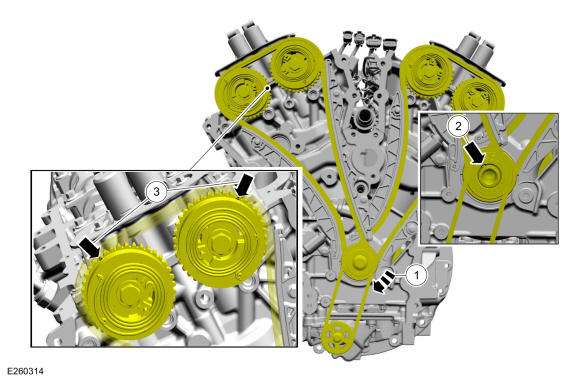

103. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.
     1. Rotate the crankshaft clockwise.
     2. Position the crankshaft sprocket keyway at the 11 o'clock position.
     3. Verify the triangle  timing marks on the VCT units are at the 2 o'clock (intake) and 11 o'clock (exhaust) positions. If the circle  timing marks are at these positions the crankshaft must be turned clockwise one revolution (360 degrees).

     Courtesy of FORD MOTOR COMPANY

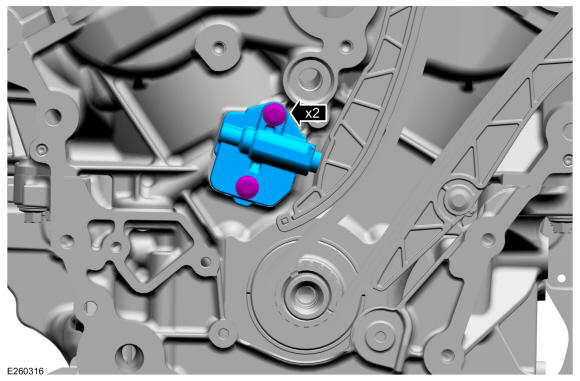

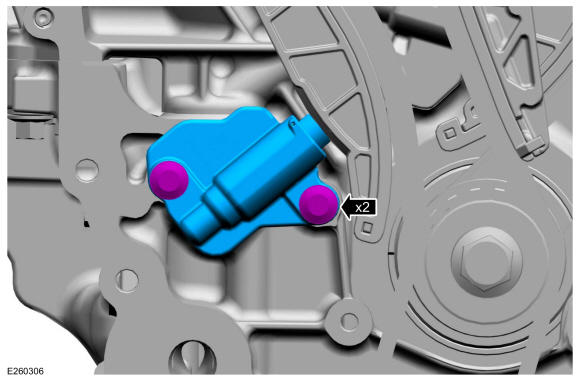

104. Remove the bolts and the RH timing chain tensioner.

     Courtesy of FORD MOTOR COMPANY

105. Remove the RH timing chain tensioner arm.

     Courtesy of FORD MOTOR COMPANY

106. Remove the bolts and the RH timing chain guide.

     Courtesy of FORD MOTOR COMPANY

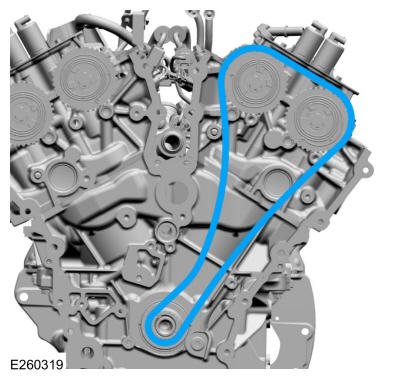

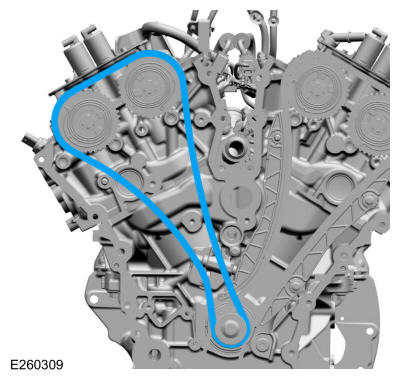

107. Remove the RH timing chain.

     Courtesy of FORD MOTOR COMPANY

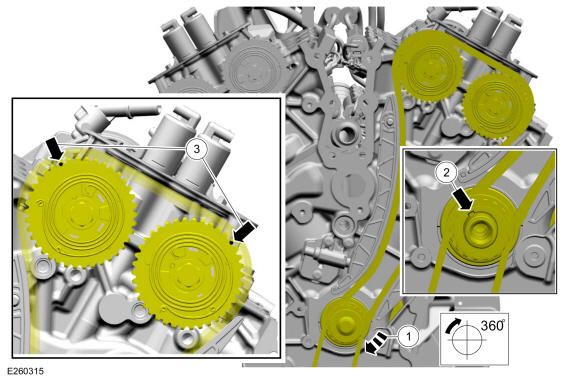

108. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the LH side the circle marks are used.
     1. Rotate the crankshaft clockwise one revolution (360 degrees).
     2. Position the crankshaft sprocket keyway at the 11 o'clock position.
     3. The circle  timing marks on the VCT units will be at the 10 o'clock (intake) and 12:30 (exhaust) positions.

     Courtesy of FORD MOTOR COMPANY

109. Remove the original crankshaft pulley bolt.

     Courtesy of FORD MOTOR COMPANY

110. Remove the timing chain sprocket.

     Courtesy of FORD MOTOR COMPANY

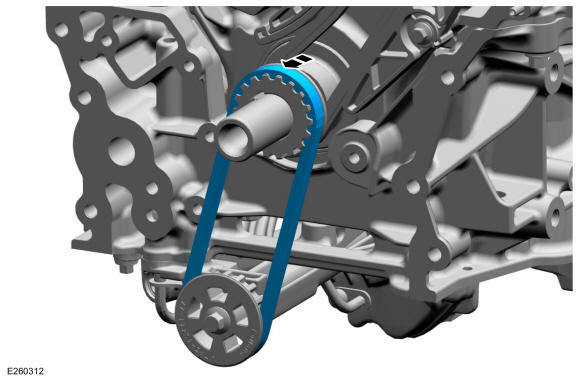

111. Slide the oil pump drive belt off of the crankshaft sprocket and remove the belt.

     Courtesy of FORD MOTOR COMPANY

112. Remove the crankshaft sprocket.

     Courtesy of FORD MOTOR COMPANY

113. Remove the bolts and the LH timing chain tensioner.

     Courtesy of FORD MOTOR COMPANY

114. Remove the LH timing chain tensioner arm.

     Courtesy of FORD MOTOR COMPANY

115. Remove the bolts and the LH timing chain guide.

     Courtesy of FORD MOTOR COMPANY

116. Remove the LH timing chain.

     Courtesy of FORD MOTOR COMPANY

117. Remove the timing chain sprocket.

     Courtesy of FORD MOTOR COMPANY

118. Remove the bolts and the oil pump pickup.

     Courtesy of FORD MOTOR COMPANY

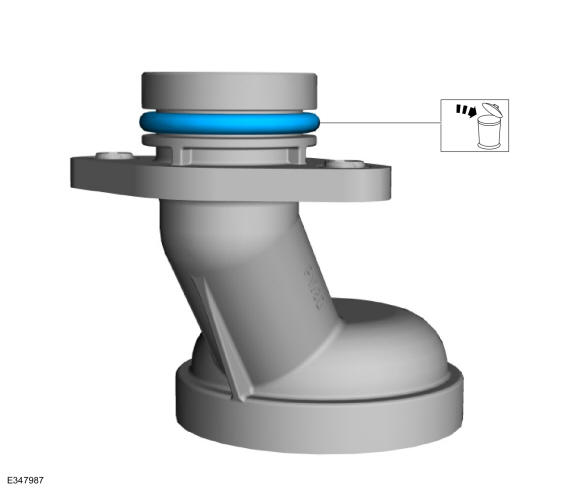

119. Remove and discard the oil pump pickup O-ring seal.

     Courtesy of FORD MOTOR COMPANY

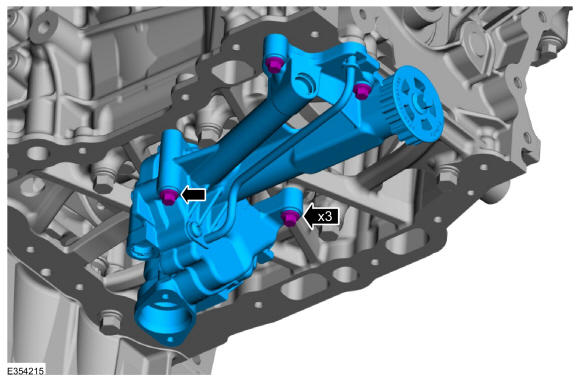

120. Remove the bolts and the oil pump.

     Courtesy of FORD MOTOR COMPANY

121. 1. Install Special Service Tool: 303-1248 Camshaft holding tools.
     2. Remove and discard the VCT unit bolts.
     3. Remove the VCT units.

     Courtesy of FORD MOTOR COMPANY

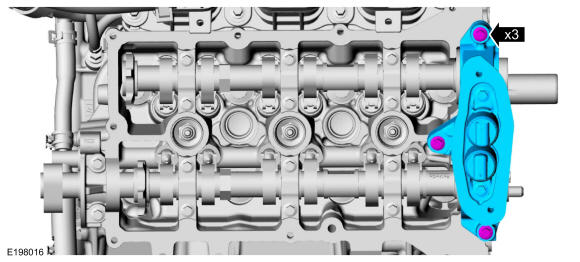

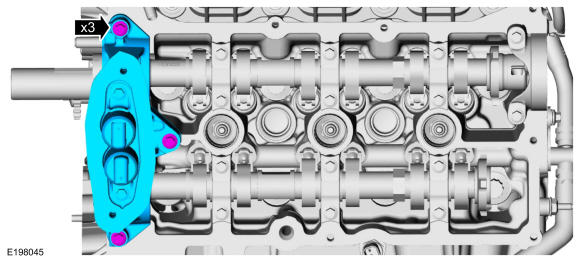

122. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

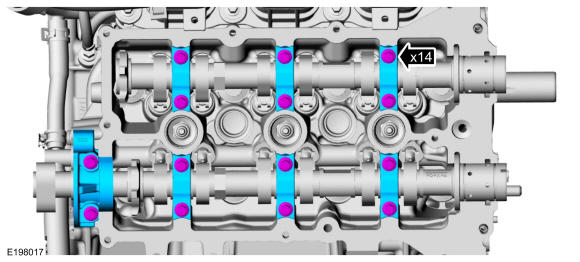

123. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

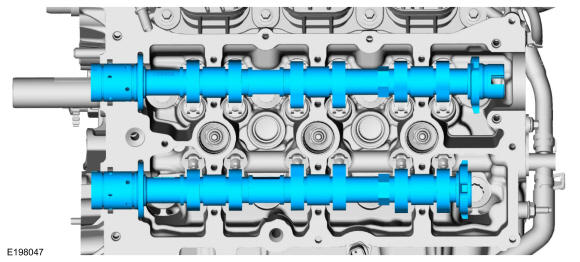

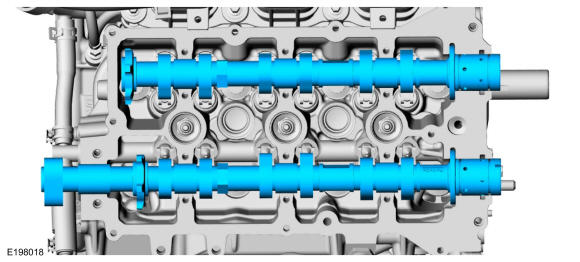

124. Remove the intake and exhaust camshafts.

     Courtesy of FORD MOTOR COMPANY

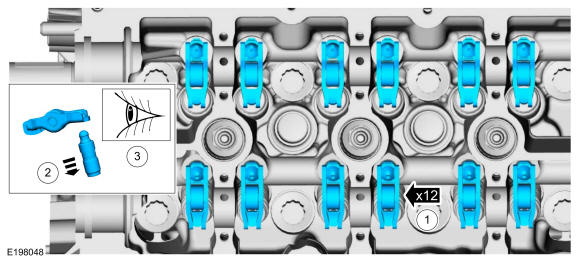

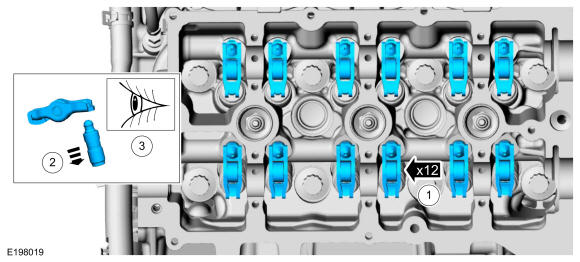

125. 1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
     2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
     3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

126. 1. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
     2. NOTE: Do not pry the cylinder head to coolant outlet connector behind the bracket. If necessary, use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

        Remove the bolt and the cylinder head to coolant outlet connector hose assembly.

     Courtesy of FORD MOTOR COMPANY

127. • NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of the high-pressure fuel tube flare nuts.

       Loosen the high-pressure fuel tube flare nuts.

     • Remove and discard the high-pressure fuel tube.

     Courtesy of FORD MOTOR COMPANY

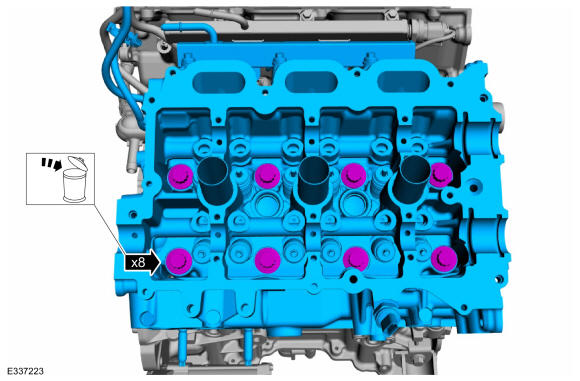

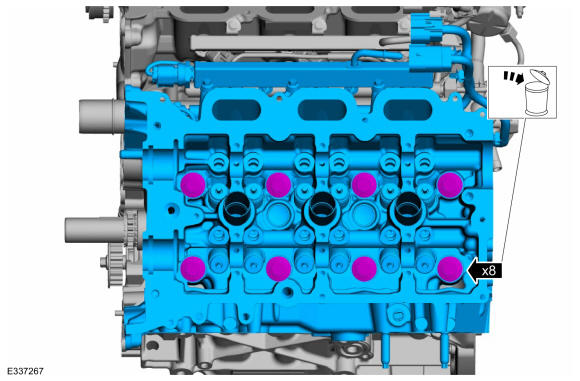

128. • Remove and discard the cylinder head bolts.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

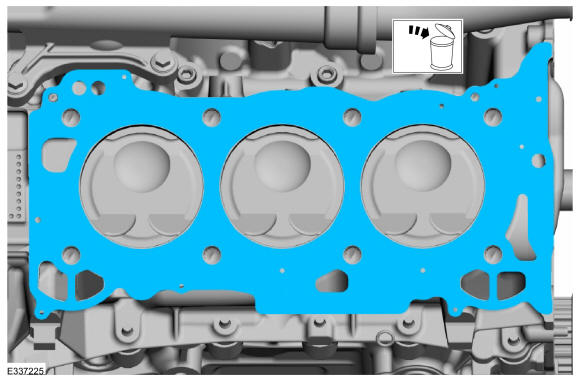

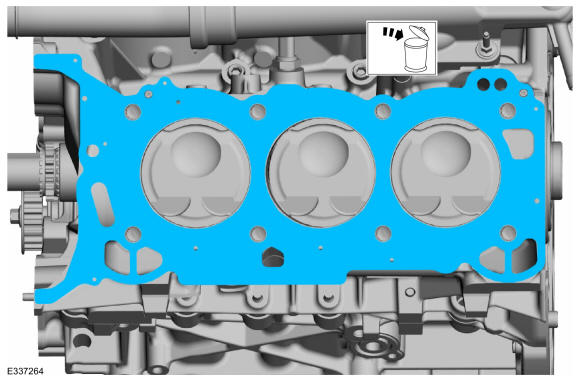

129. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

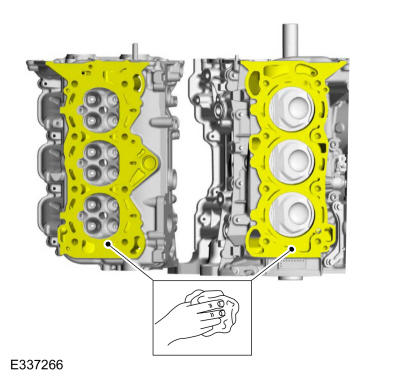

130. • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.
     • Refer to: Cylinder Head Distortion .
     • Refer to: Cylinder Block Distortion .

     Courtesy of FORD MOTOR COMPANY

131. 1. Install Special Service Tool: 303-1248 Camshaft holding tools.
     2. Remove and discard the VCT unit bolts.
     3. Remove the VCT units.

     Courtesy of FORD MOTOR COMPANY

132. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

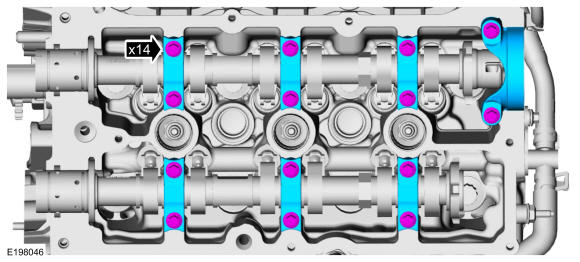

133. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

134. Remove the intake and exhaust camshafts.

     Courtesy of FORD MOTOR COMPANY

135. 1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
     2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
     3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

136. 1. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
     2. NOTE: Do not pry the cylinder head to coolant outlet connector behind the bracket. If necessary, use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

        Remove the bolt and the cylinder head to coolant outlet connector hose assembly.

     Courtesy of FORD MOTOR COMPANY

137. • Remove and discard the cylinder head bolts.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

138. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

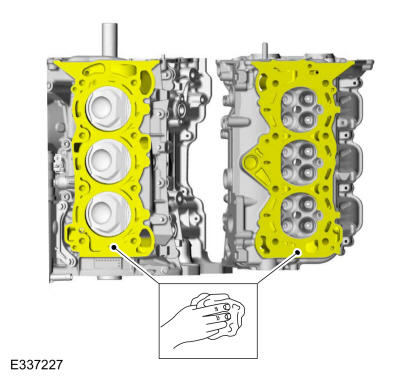

139. • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.
     • Refer to: Cylinder Head Distortion .
     • Refer to: Cylinder Block Distortion .

     Courtesy of FORD MOTOR COMPANY

140. 1. Detach the wiring harness retainer from the stud bolt.
     2. Remove the stud bolt, the bolts and the coolant outlet connector pipe.

     Courtesy of FORD MOTOR COMPANY

141. 1. Disconnect the ECT sensor electrical connector.
     2. Remove the bolts and the KS assembly.

     Courtesy of FORD MOTOR COMPANY

142. NOTE: Do not reuse the ECT sensor, install a new sensor.

     Remove and discard the ECT sensor.

     Courtesy of FORD MOTOR COMPANY

143. If equipped, remove the block heater.

     Courtesy of FORD MOTOR COMPANY

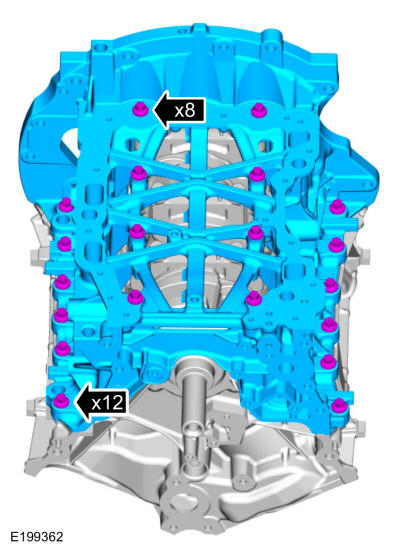

144. Remove the engine block skirt stiffener bolts.

     Courtesy of FORD MOTOR COMPANY

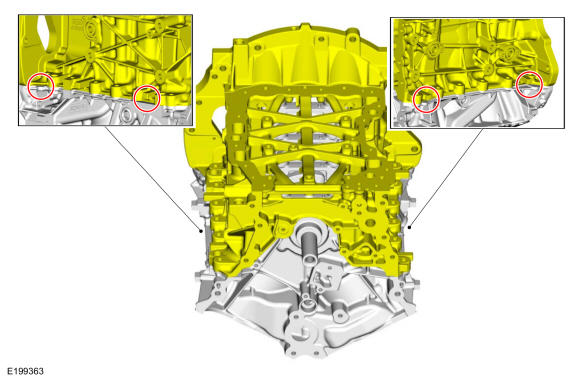

145. Using a suitable pry bar at the 4 pry pad locations, release the engine block skirt stiffener-to-engine block seal.

     Courtesy of FORD MOTOR COMPANY

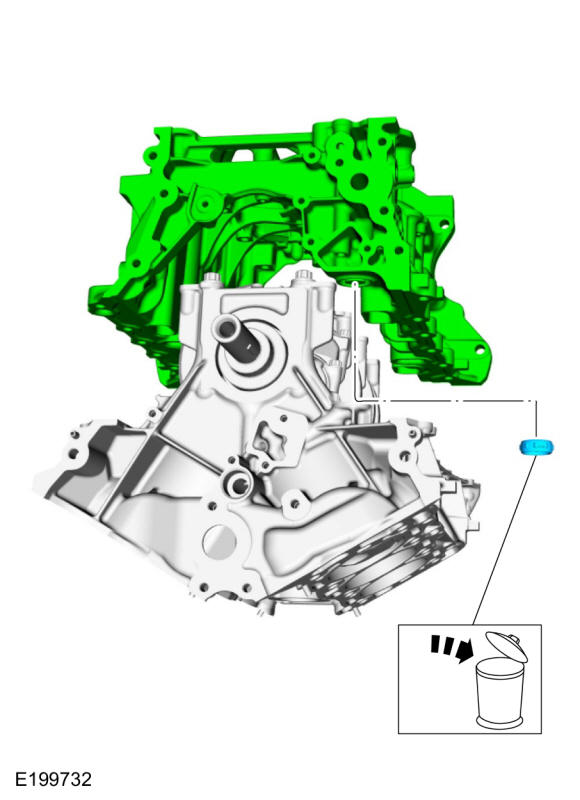

146. • Remove the engine block skirt stiffener.
     • Remove and discard the oil seal.

     Courtesy of FORD MOTOR COMPANY

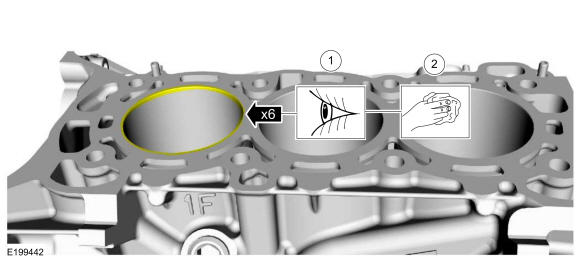

147. • Before removing the pistons, inspect the top of the cylinder bores.
     • If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad.

     Courtesy of FORD MOTOR COMPANY

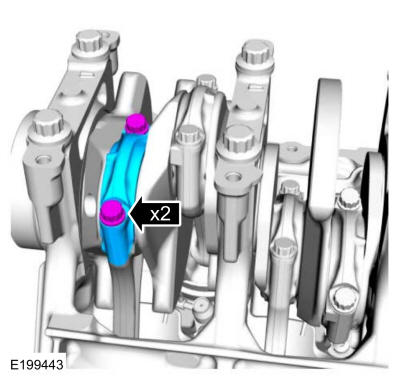

148. Remove the bolts and the connecting rod cap.

     Courtesy of FORD MOTOR COMPANY

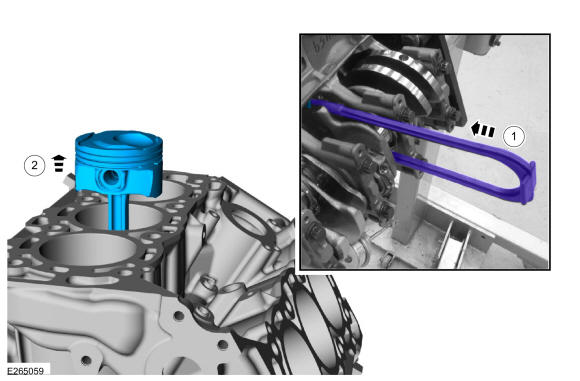

149. NOTE: Position the cylinder bank for the piston serviced in a vertical position. Do not scratch the cylinder walls or crankshaft journals with the connecting rod or engine damage may occur.
     NOTE: Do not allow the piston connecting rods to come in contact with the piston cooling jets or engine damage may occur.
     1. NOTE: A commercially available piston rod installer must be used to prevent damage to the crankshaft journal.

        Install a piston rod installer over the crankshaft journal and into the bolt holes of the connecting rod.

     2. Remove the piston through the top of the cylinder block.
     • Repeat the steps for each of the remaining pistons.

     Courtesy of FORD MOTOR COMPANY

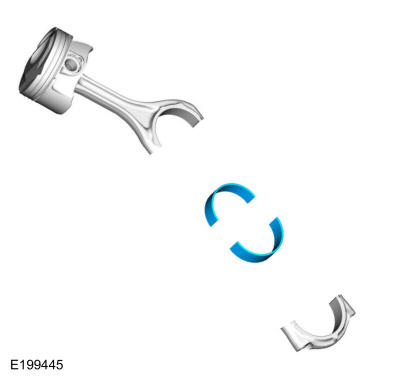

150. • Remove the connecting rod bearings.
     • Disassemble and inspect the pistons. Refer to: Piston . Refer to: Piston Inspection .

     Courtesy of FORD MOTOR COMPANY

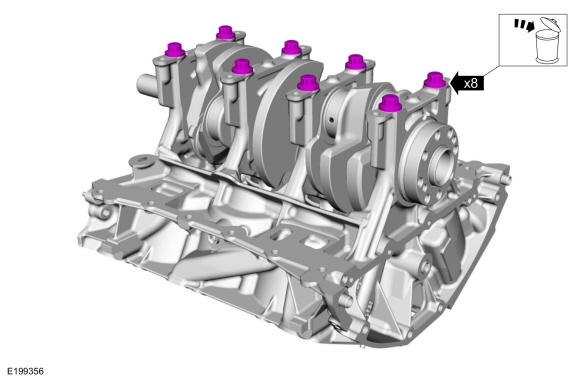

151. Remove and discard the main bearing cap bolts.

     Courtesy of FORD MOTOR COMPANY

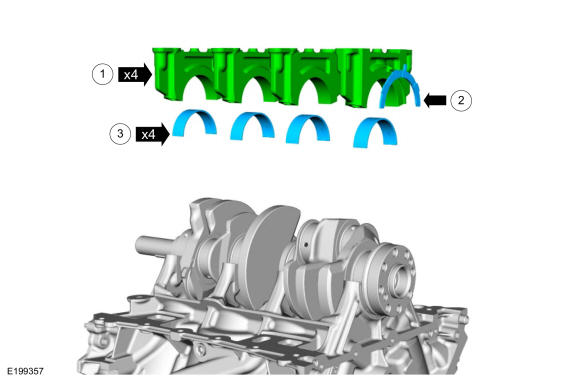

152. 1. Remove the main bearing caps.
     2. Remove the lower thrust washer.
     3. Remove the lower main bearings.

     Courtesy of FORD MOTOR COMPANY

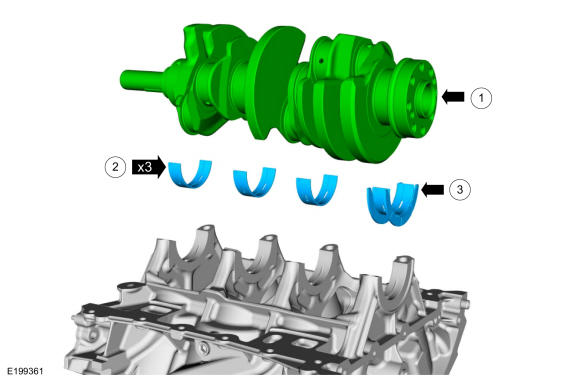

153. 1. Remove the crankshaft.
     2. Remove the lower main bearings.
     3. Remove the lower thrust bearing.

     Courtesy of FORD MOTOR COMPANY

154. Remove the bolts and the piston cooling jets from the cylinder block.

Courtesy of FORD MOTOR COMPANY
