Fuel Charging and Controls - Component Location
WARNING: This page is about a different variant/trim than selected.

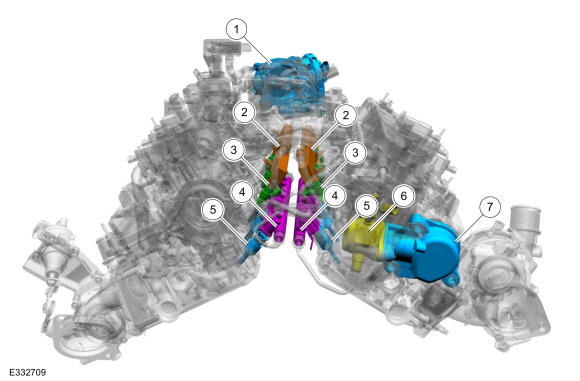

2.7L EcoBoost
| Item | Description |
|---|---|
| 1 | Throttle body |
| 2 | Port injection fuel rail |
| 3 | Port injection fuel injector |
| 4 | Direct injection fuel rail |
| 5 | Direct injection fuel injector |
| 6 | High-pressure fuel pump |
| 7 | High-pressure fuel pump drive unit |
Fuel Pump Driver Module (FPDM)
| Item | Description |
|---|---|
| 1 | Fuel pump driver module (FPDM) |
