All-Wheel Drive (AWD) Module: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this service information, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- Disconnect the battery. Refer to: Battery Disconnect and Connect .
-

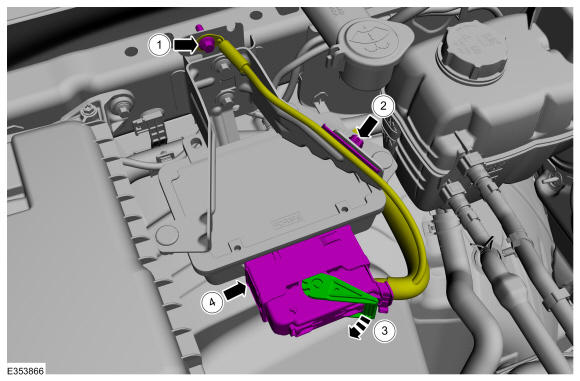

- Remove the bolt and position aside the ground wire.
Torque: 106 lb.in (12 Nm)
- Detach the wiring harness retainer.
- Release the tab from the connector.
- Disconnect the electrical connector from the module.
- Remove the bolt and position aside the ground wire.

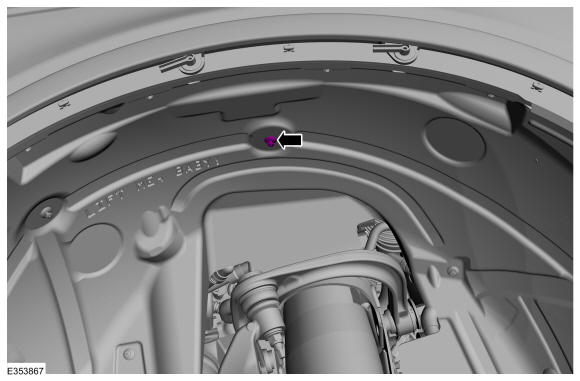

- Remove the RH side front fender liner push pin.

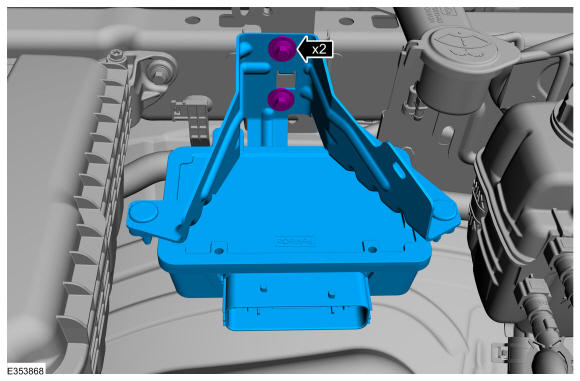

- Remove the AWD module bracket retainers and remove the AWD module bracket.
Torque: 106 lb.in (12 Nm)

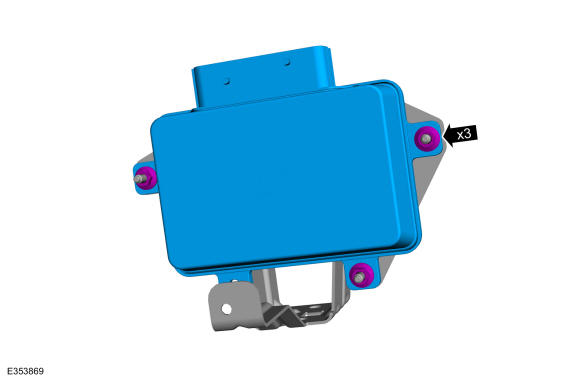

- Remove the AWD module.
Torque: 89 lb.in (10 Nm)
