Oil Pressure Control Solenoid: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

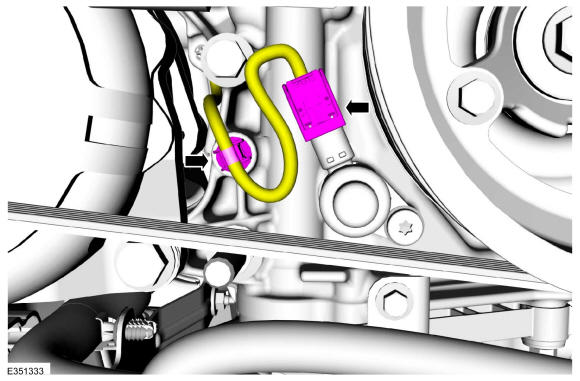

- Disconnect the oil pressure control solenoid electrical connector and harness retainer.
-
NOTE: Before installation, lubricate the oil pressure control solenoid O-ring seal with clean engine oil.

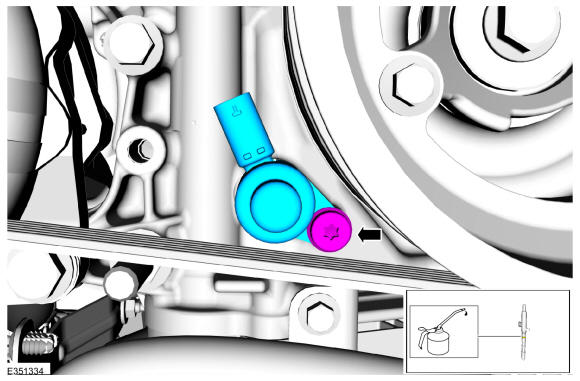

Remove the retainer and the oil pressure control solenoid.
Torque: 97 lb.in (11 Nm)
