Transmission Controls - 10R60

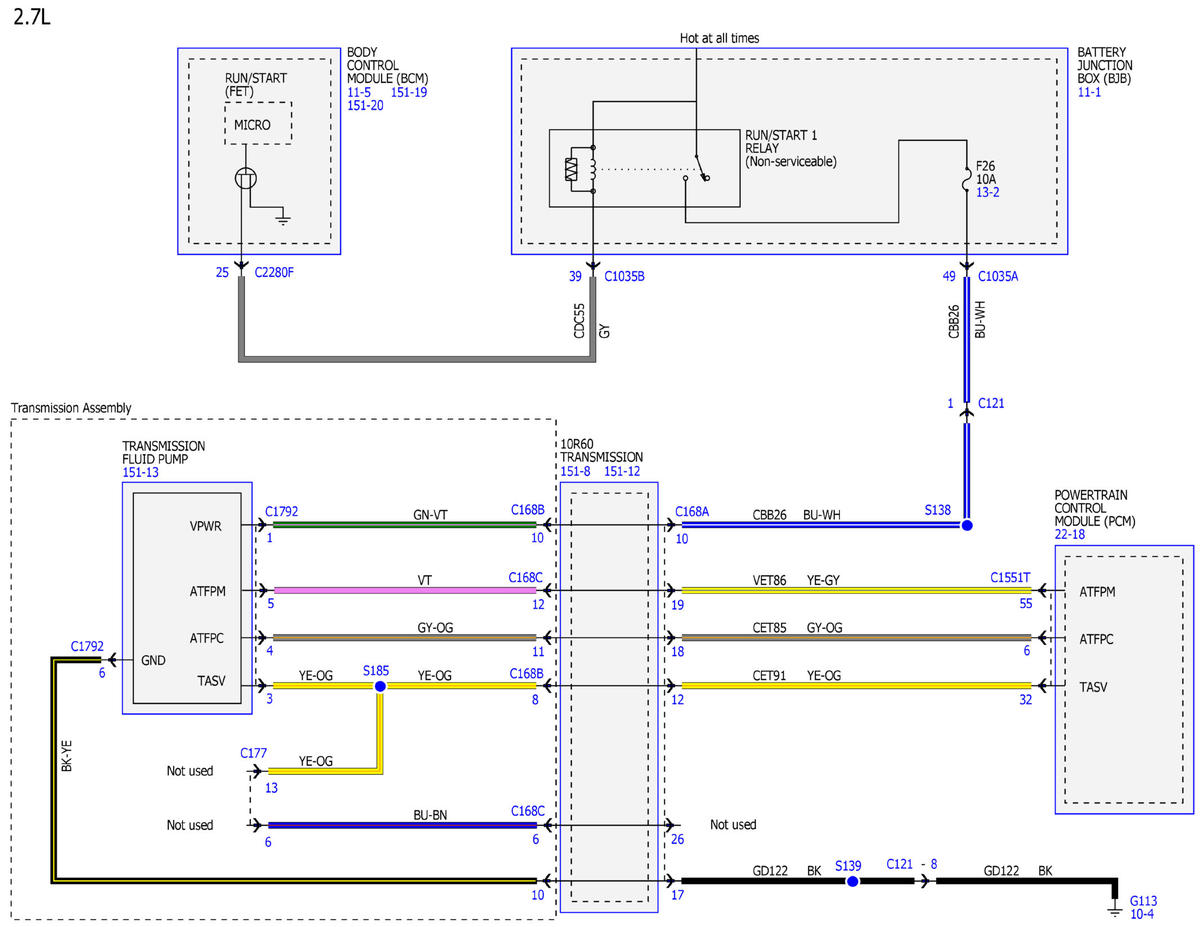

Fig 1: Transmission Controls Wiring Diagrams - 10R60 (1 Of 7)

Courtesy of FORD MOTOR COMPANY

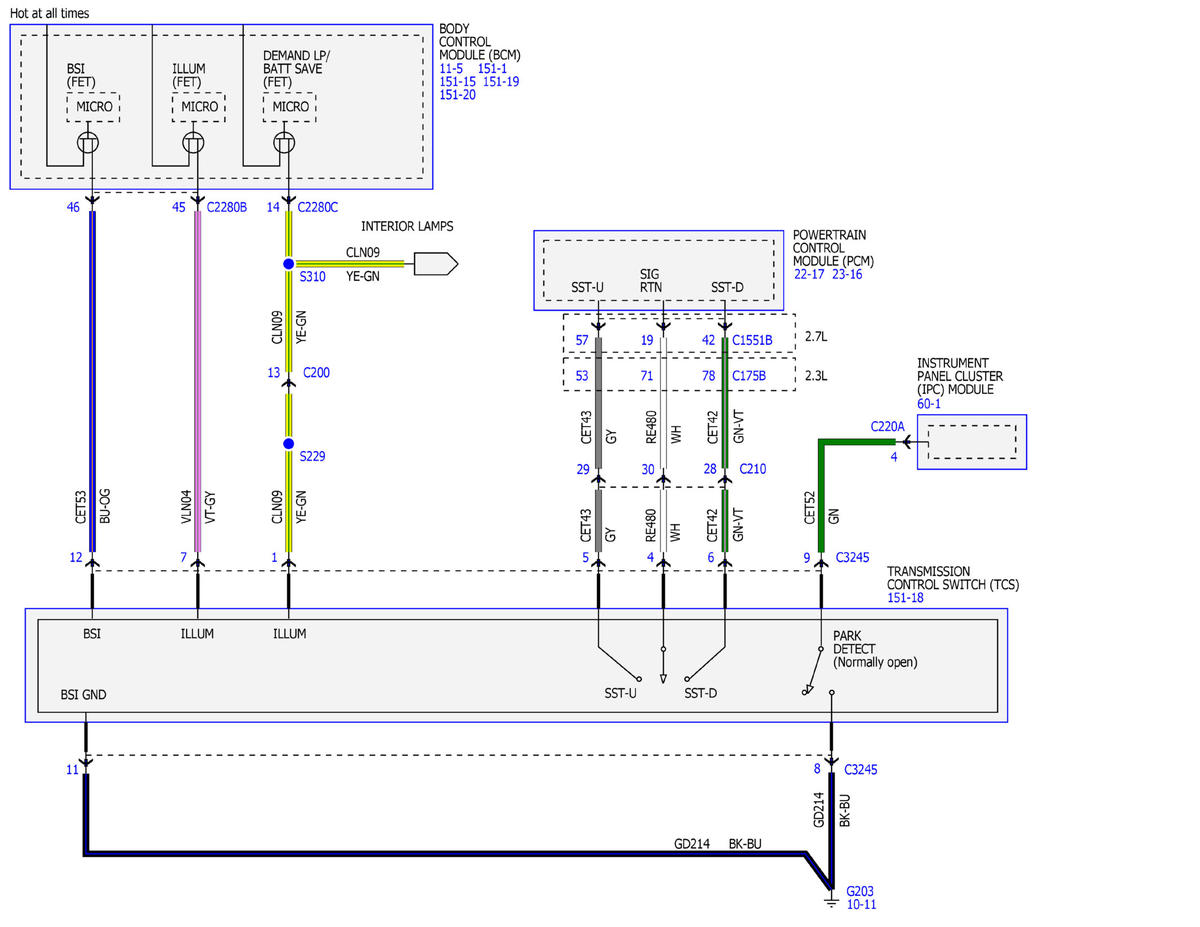

Fig 2: Transmission Controls Wiring Diagrams - 10R60 (2 Of 7)

Courtesy of FORD MOTOR COMPANY

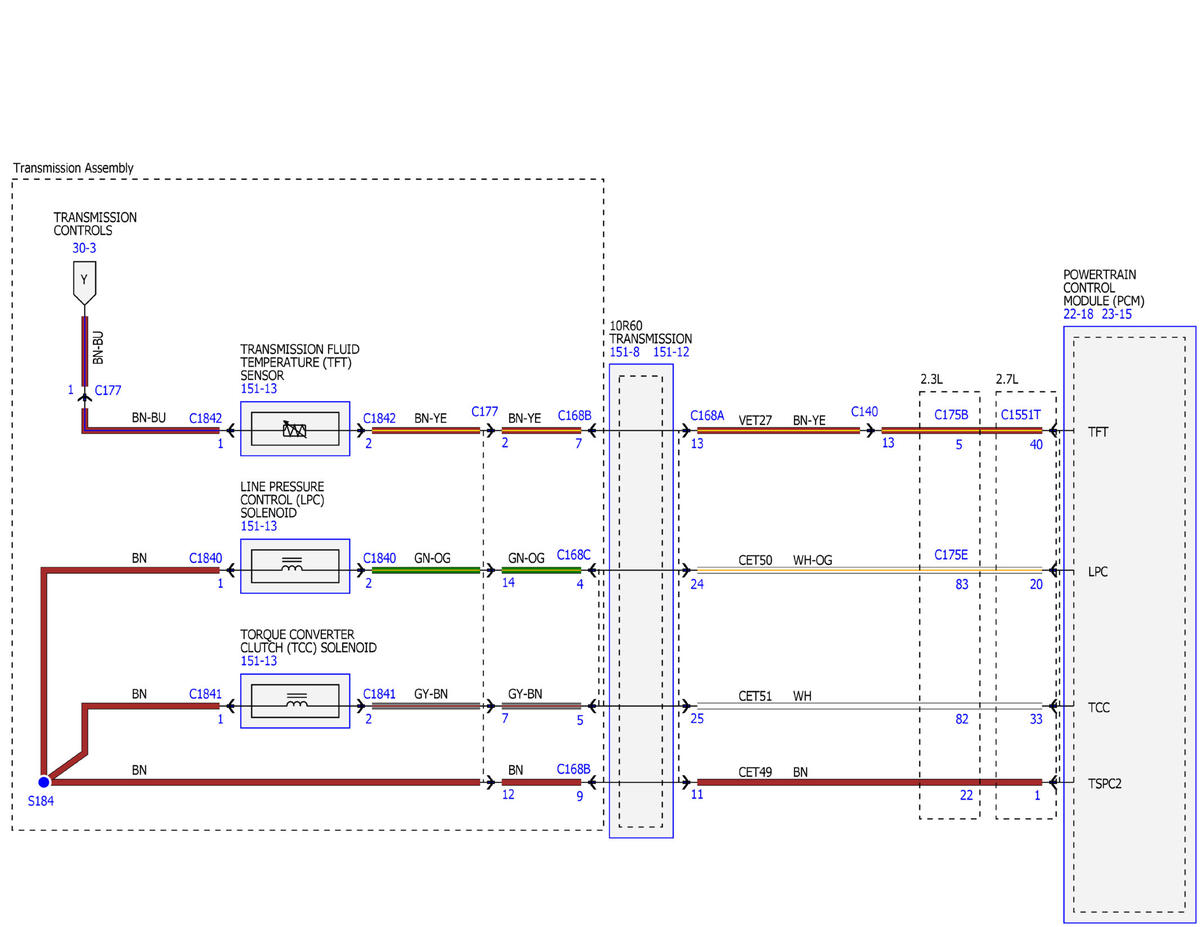

Fig 3: Transmission Controls Wiring Diagrams - 10R60 (3 Of 7)

Courtesy of FORD MOTOR COMPANY

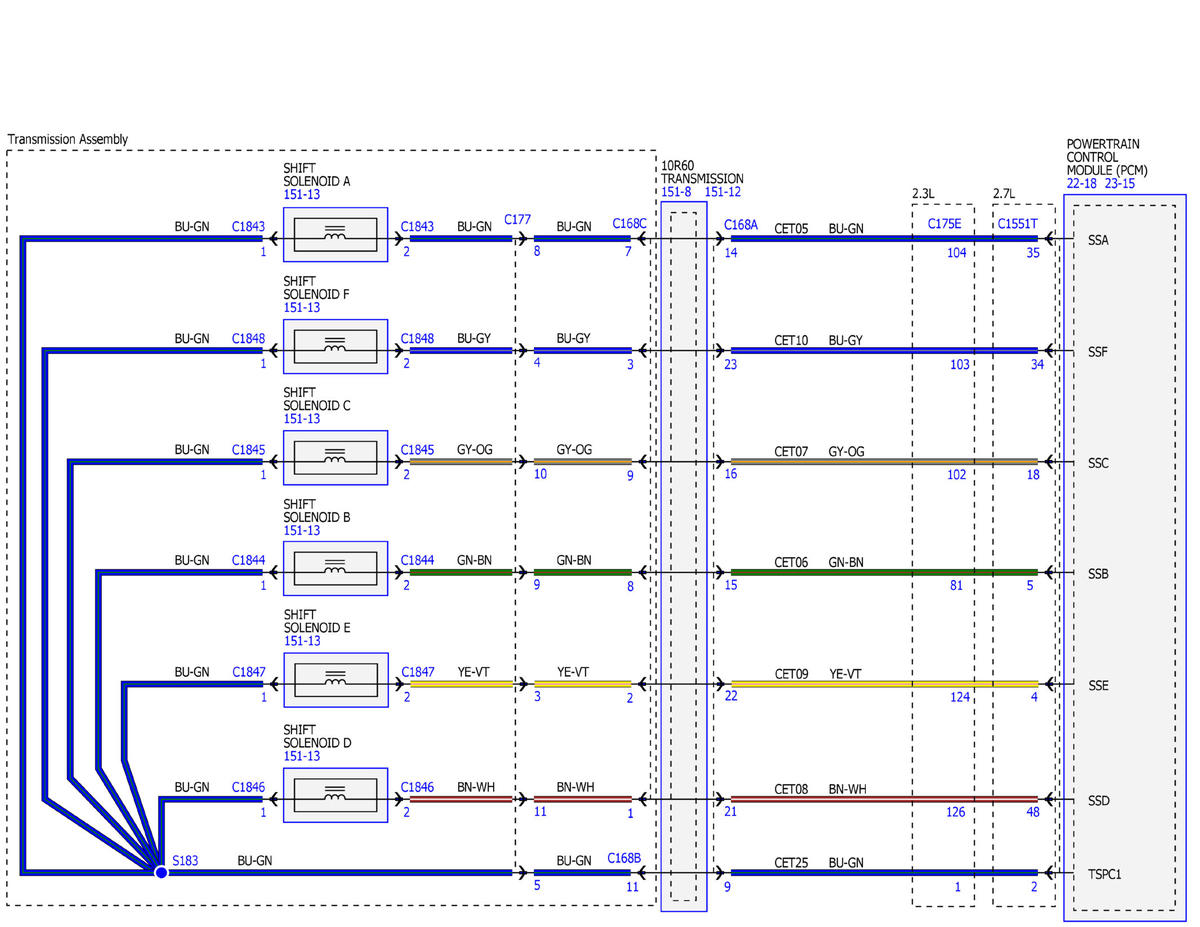

Fig 4: Transmission Controls Wiring Diagrams - 10R60 (4 Of 7)

Courtesy of FORD MOTOR COMPANY

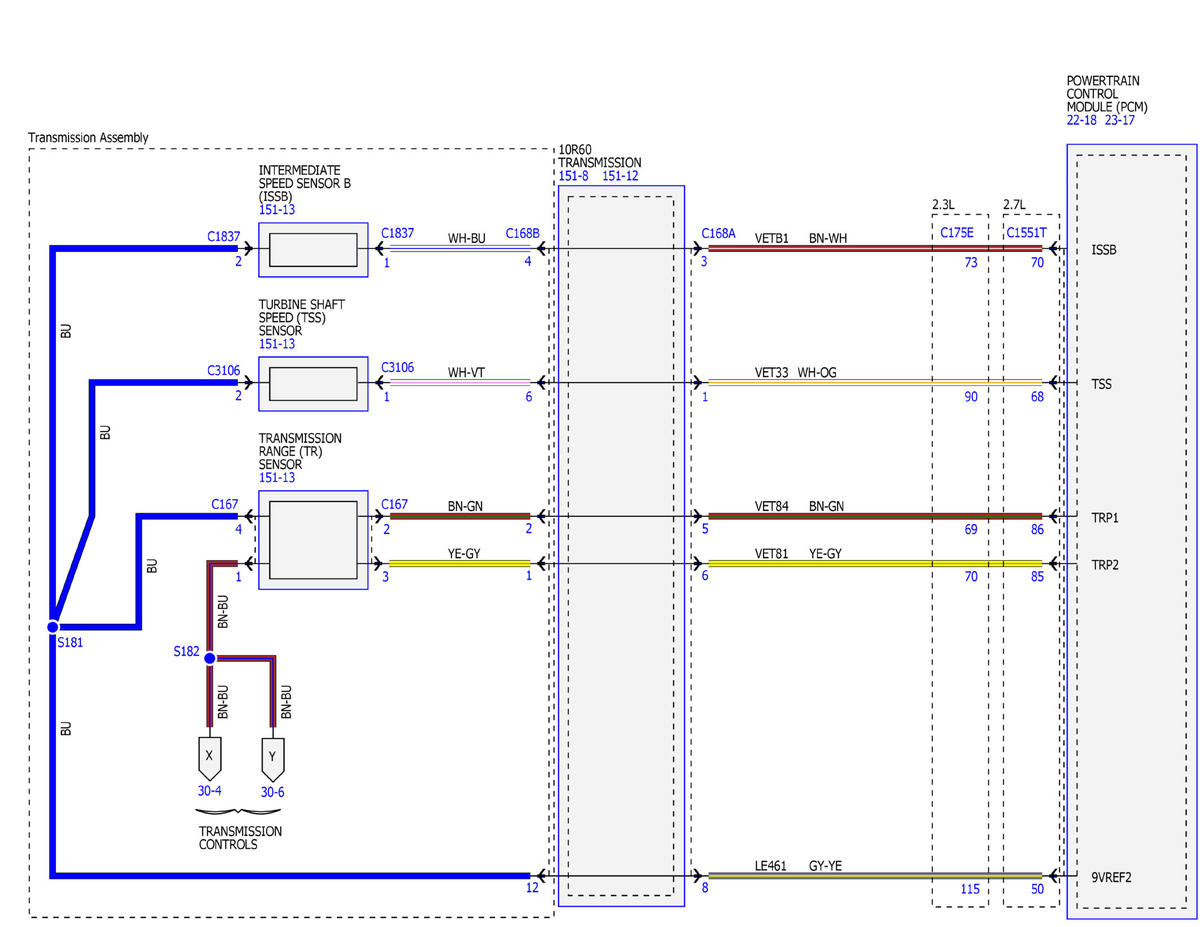

Fig 5: Transmission Controls Wiring Diagrams - 10R60 (5 Of 7)

Courtesy of FORD MOTOR COMPANY

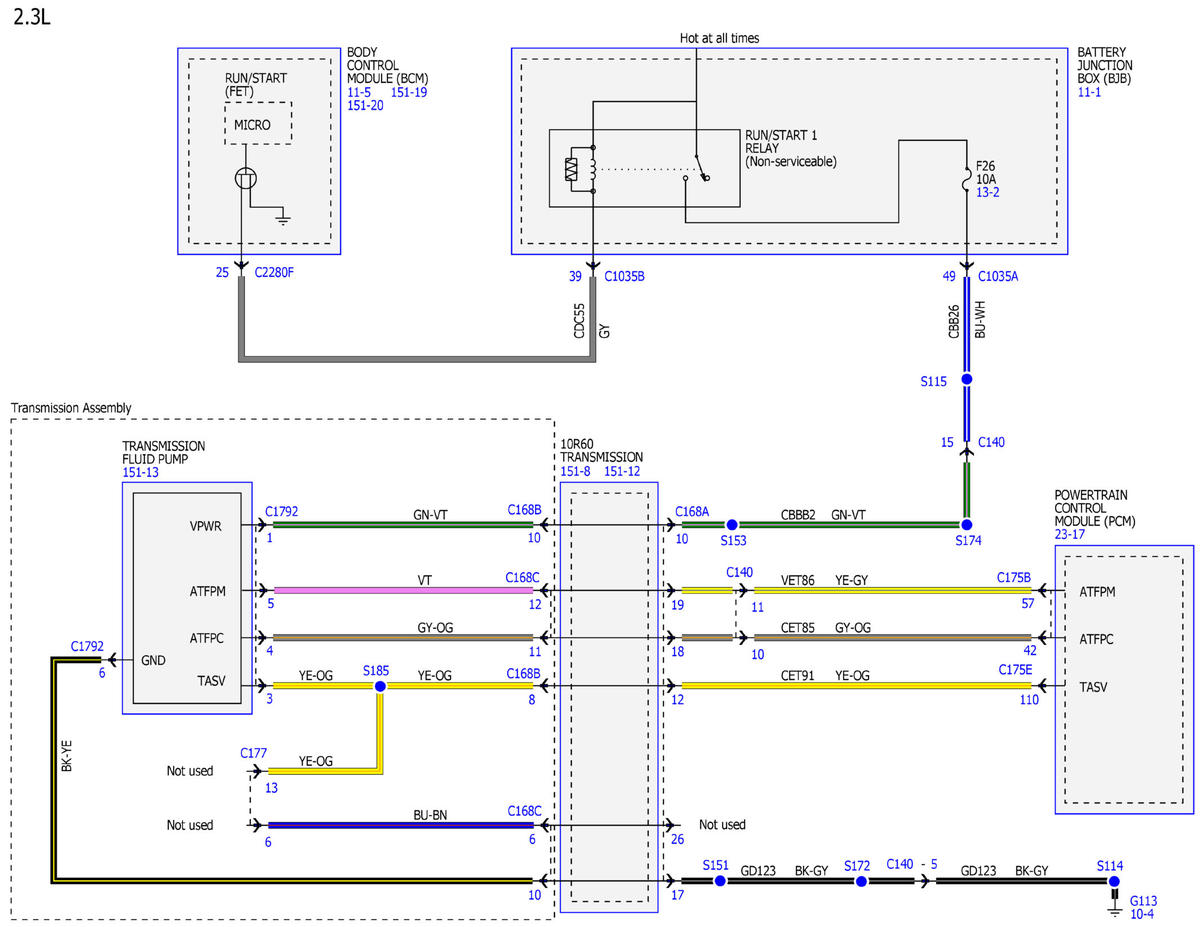

Fig 6: Transmission Controls Wiring Diagrams - 10R60 (6 Of 7)

Courtesy of FORD MOTOR COMPANY

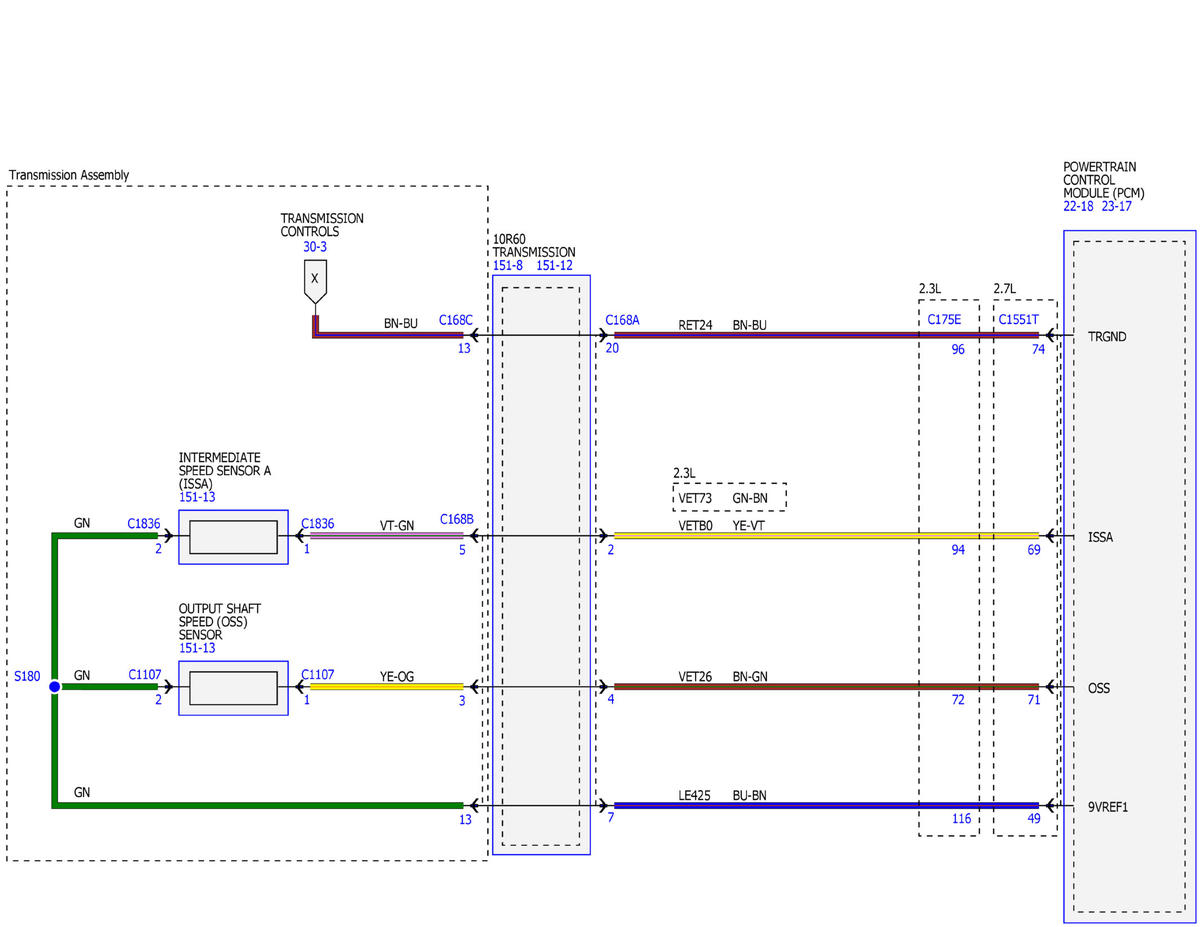

Fig 7: Transmission Controls Wiring Diagrams - 10R60 (7 Of 7)

Courtesy of FORD MOTOR COMPANY
