Parking Aid

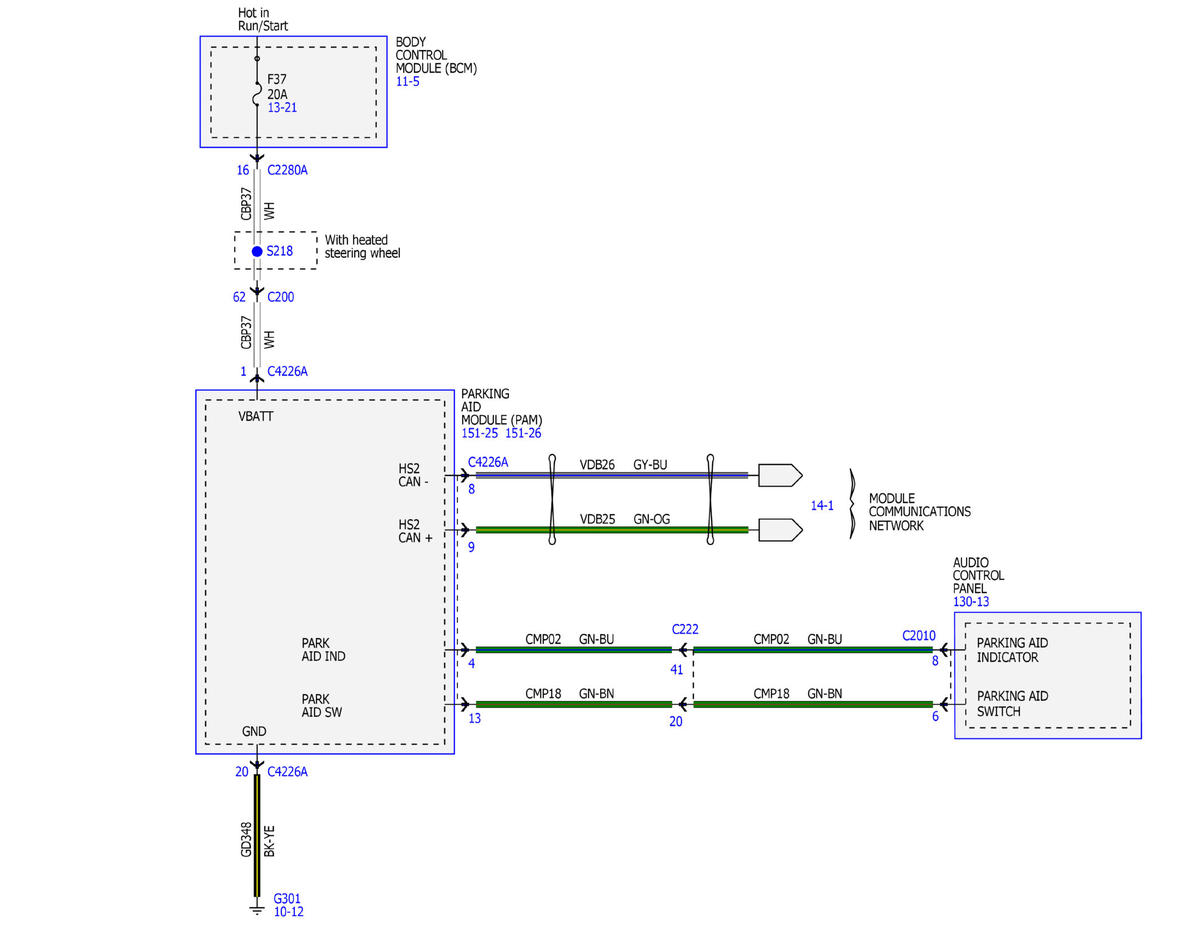

Fig 1: Parking Aid Wiring Diagrams (1 Of 6)
GFDWR151789Courtesy of FORD MOTOR COMPANY

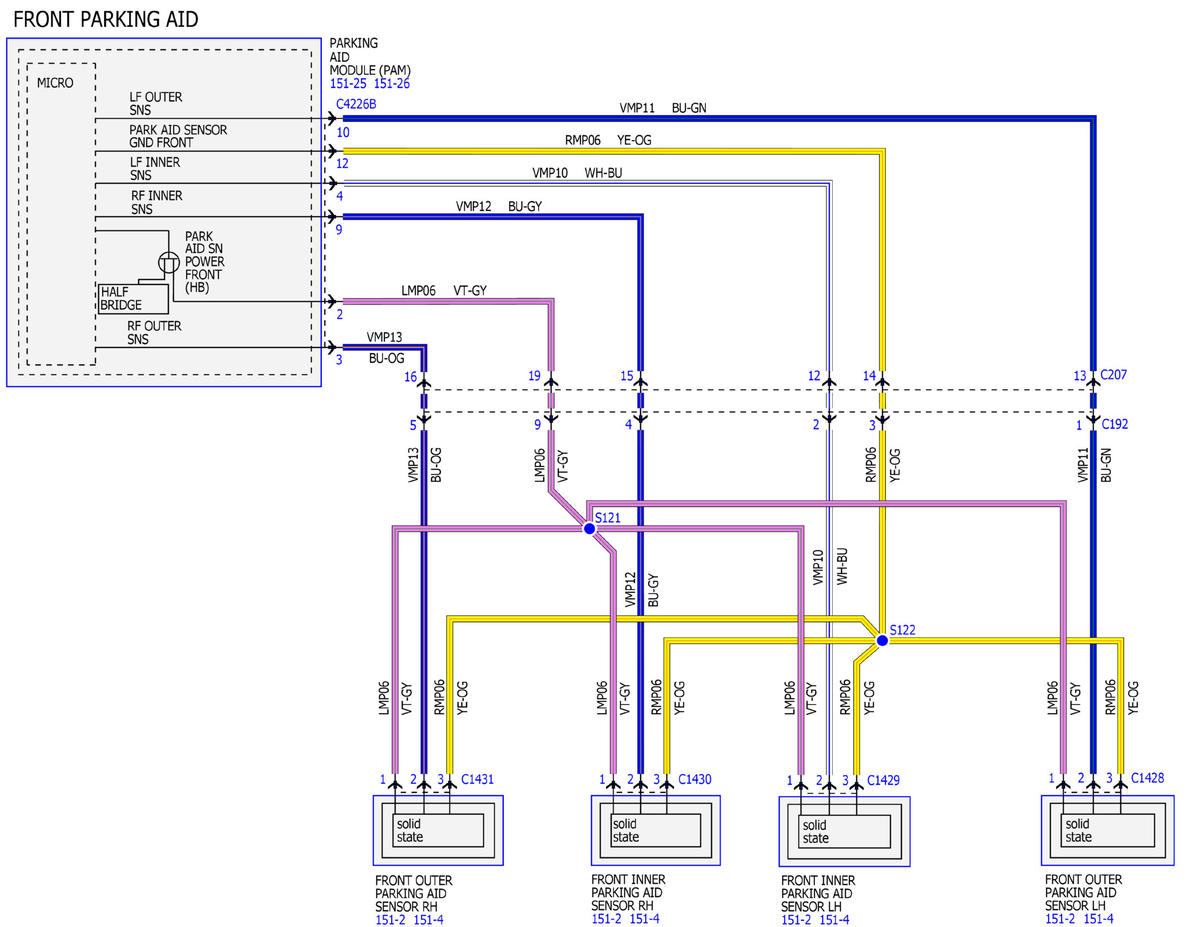

Fig 2: Parking Aid Wiring Diagrams (2 Of 6)
GFDWR151790Courtesy of FORD MOTOR COMPANY

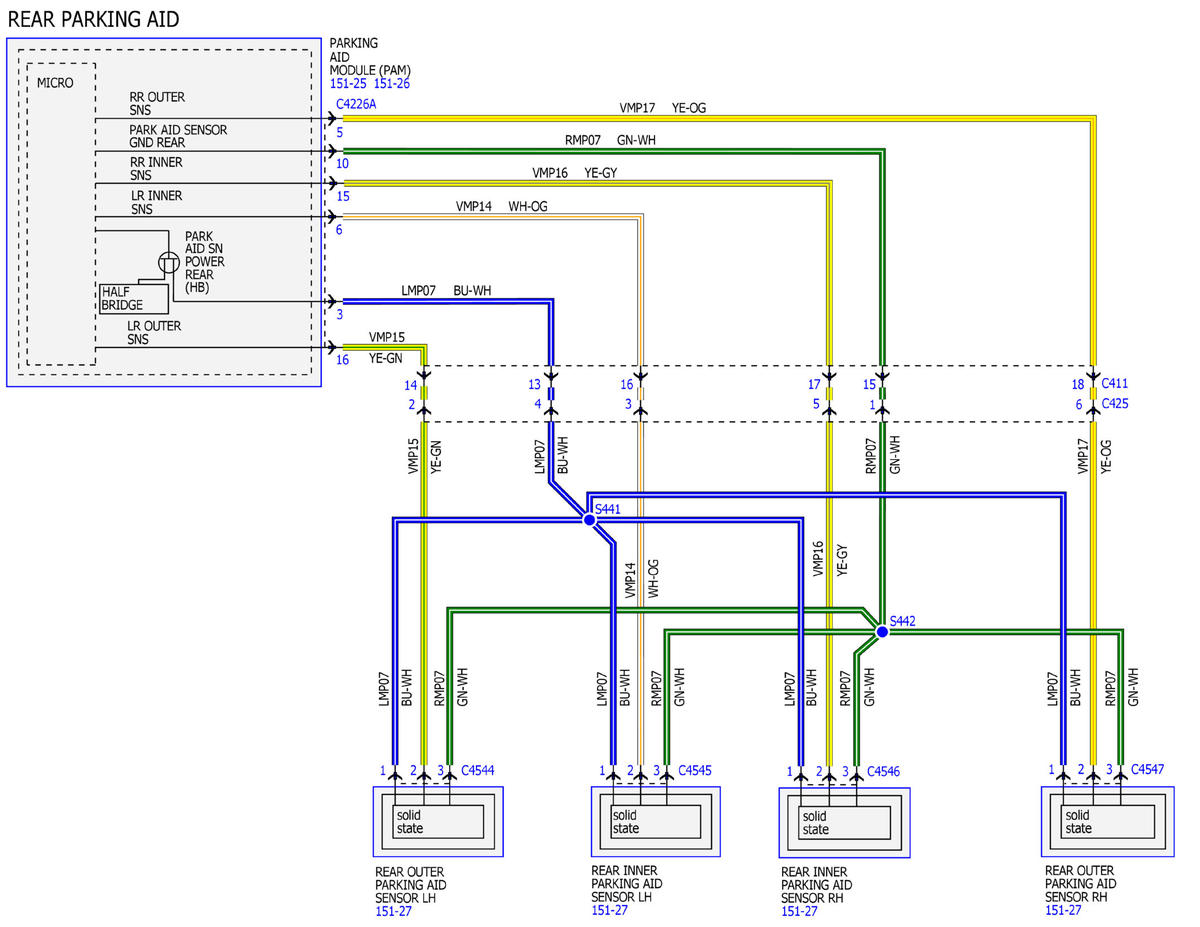

Fig 3: Parking Aid Wiring Diagrams (3 Of 6)
GFDWR151791Courtesy of FORD MOTOR COMPANY

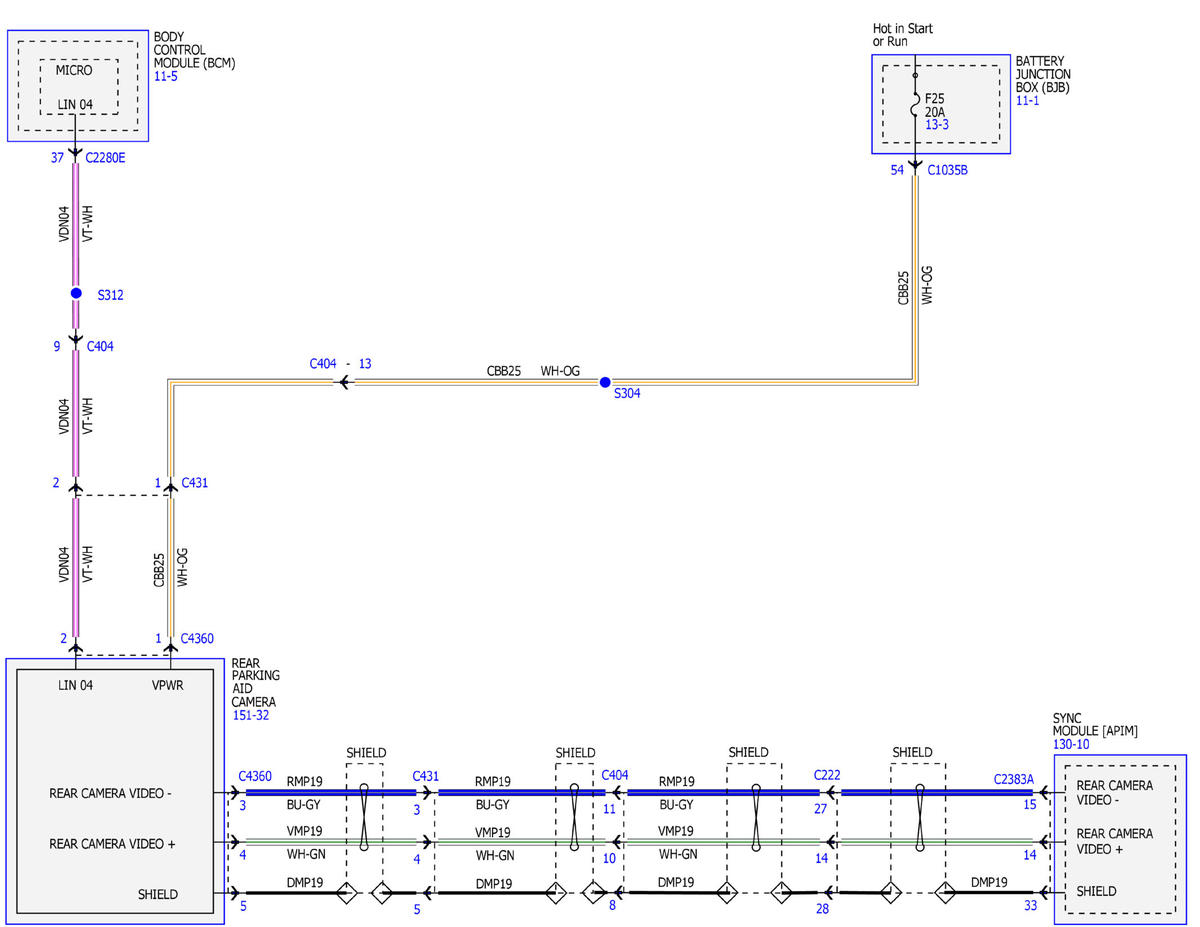

Fig 4: Parking Aid Wiring Diagrams (4 Of 6)
GFDWR151792Courtesy of FORD MOTOR COMPANY

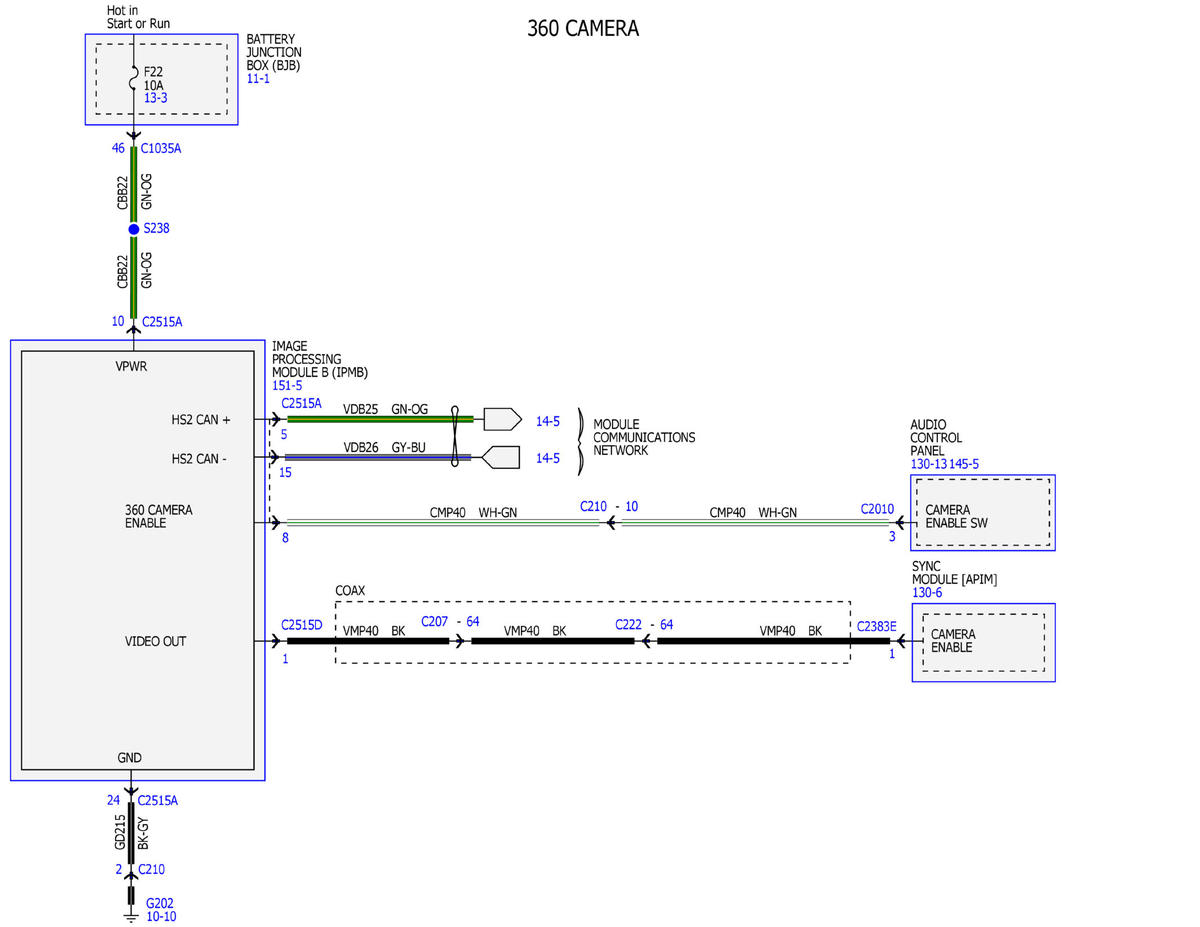

Fig 5: Parking Aid Wiring Diagrams (5 Of 6)
GFDWR151793Courtesy of FORD MOTOR COMPANY

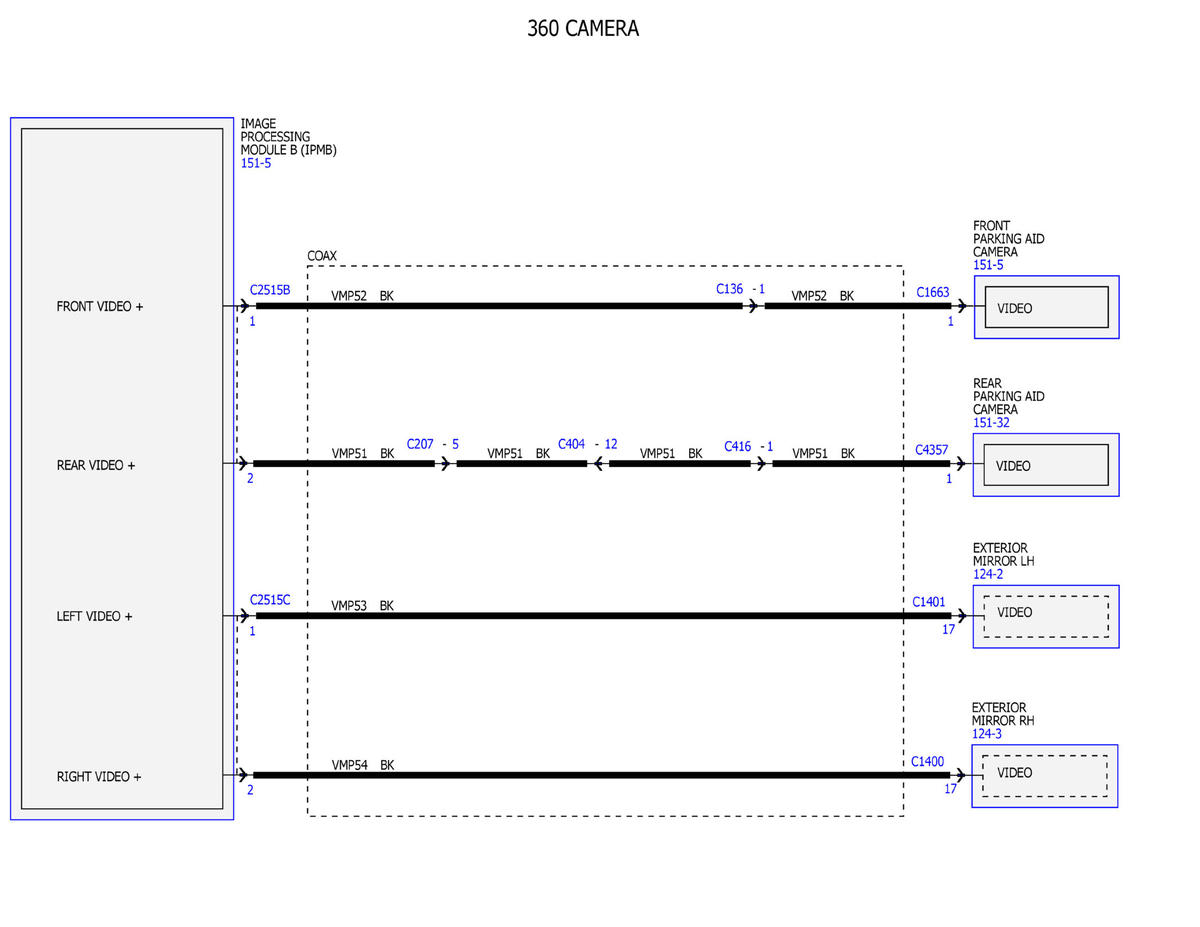

Fig 6: Parking Aid Wiring Diagrams (6 Of 6)
GFDWR151794Courtesy of FORD MOTOR COMPANY
