Bronco Raptor
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Four Wheel Drive Systems
Four Wheel Drive Systems

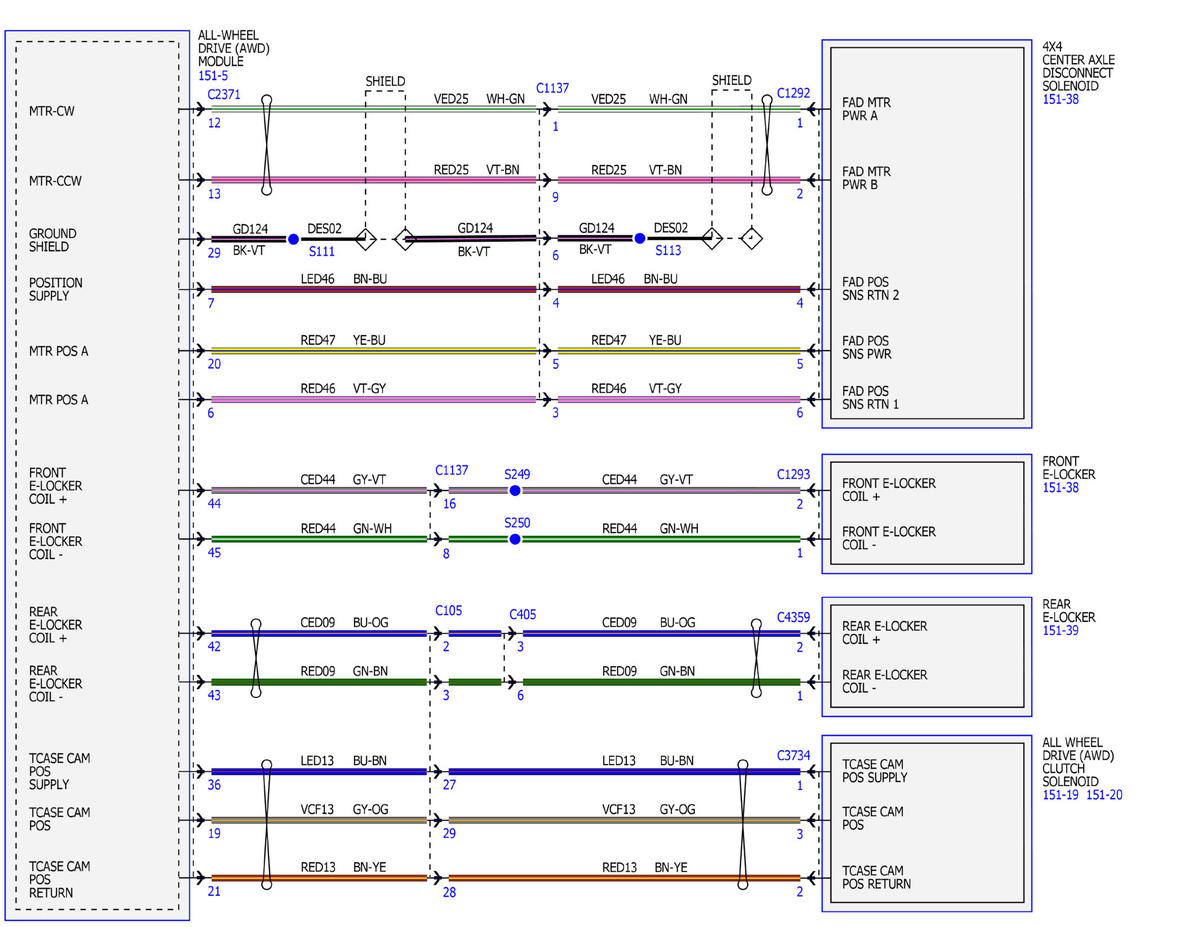

Fig 1: Four Wheel Drive Systems Wiring Diagrams (1 Of 4)
Courtesy of FORD MOTOR COMPANY

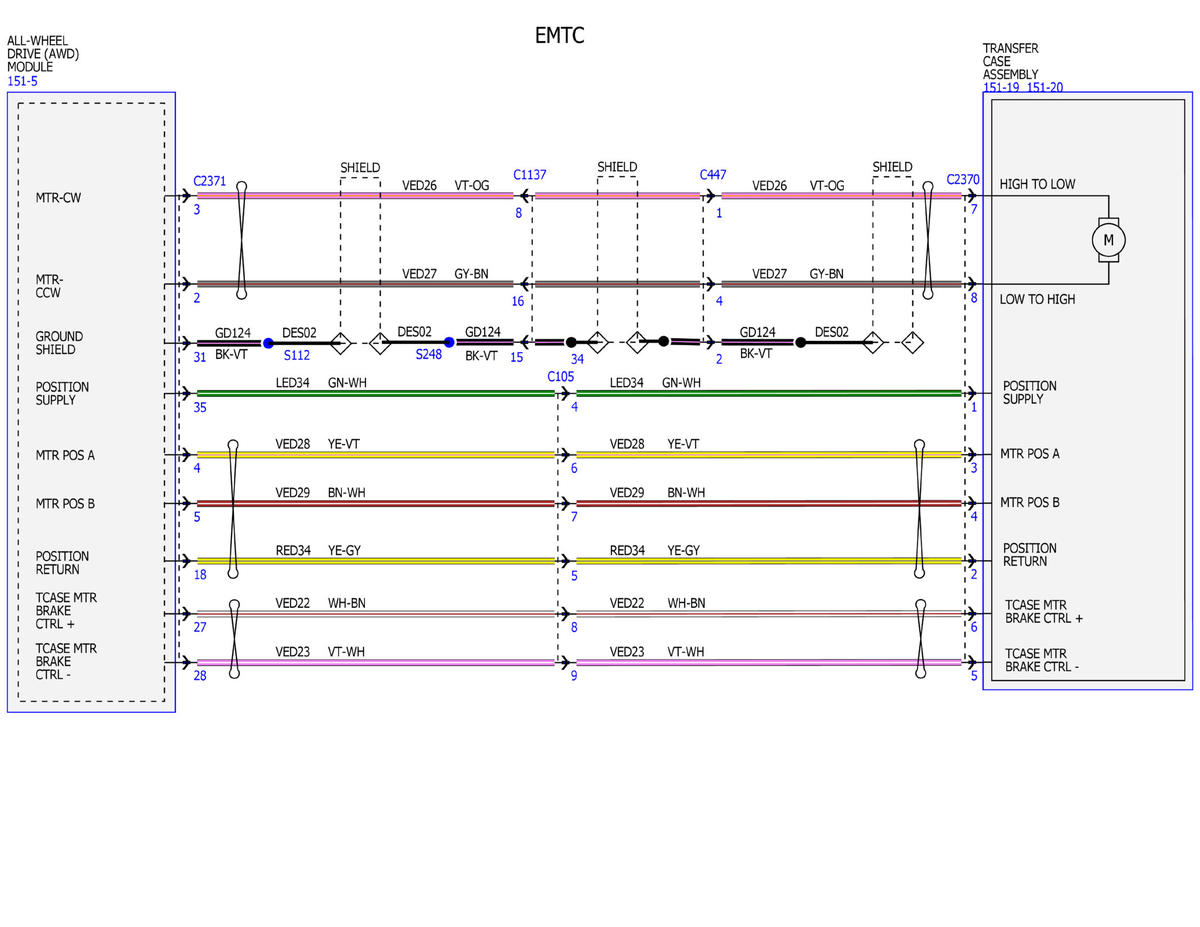

Fig 2: Four Wheel Drive Systems Wiring Diagrams (2 Of 4)
Courtesy of FORD MOTOR COMPANY

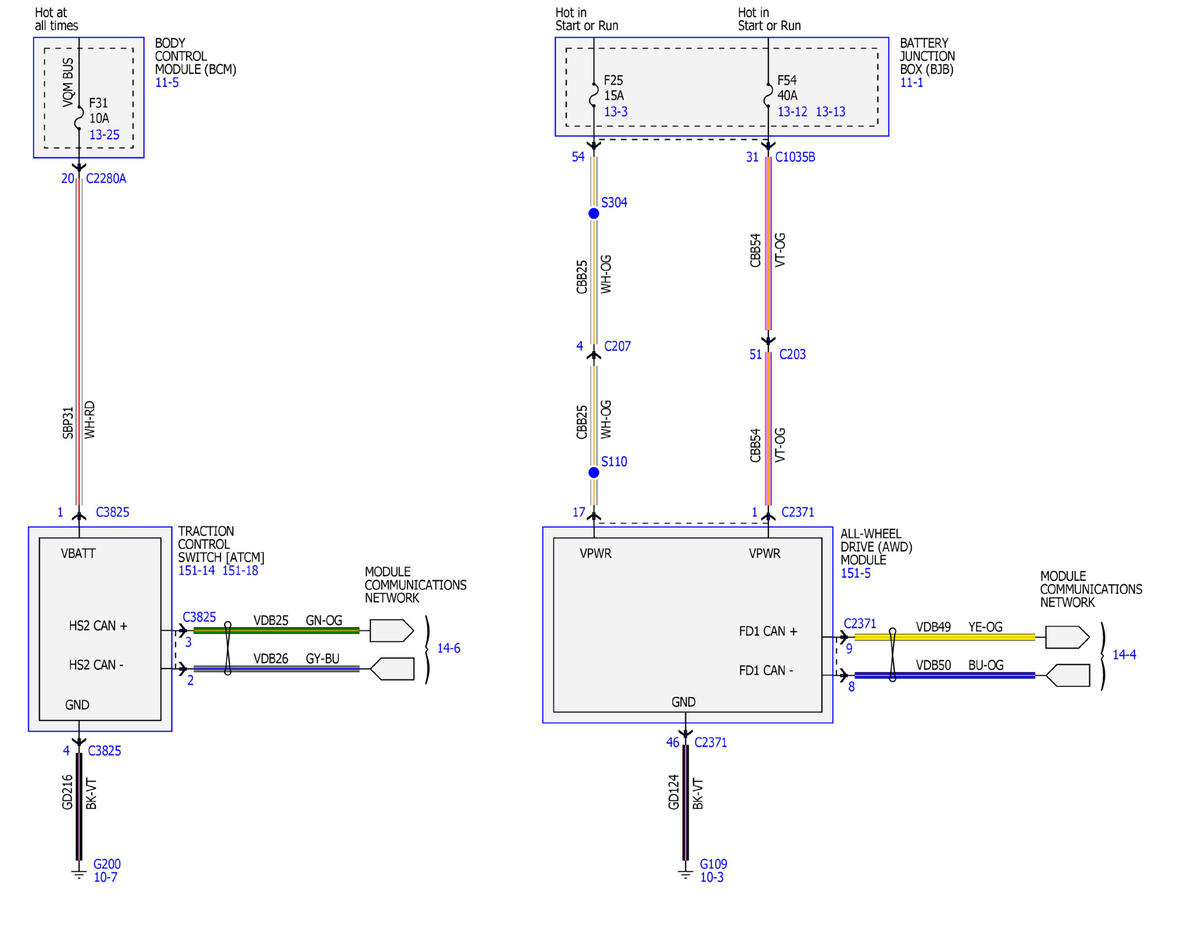

Fig 3: Four Wheel Drive Systems Wiring Diagrams (3 Of 4)
Courtesy of FORD MOTOR COMPANY

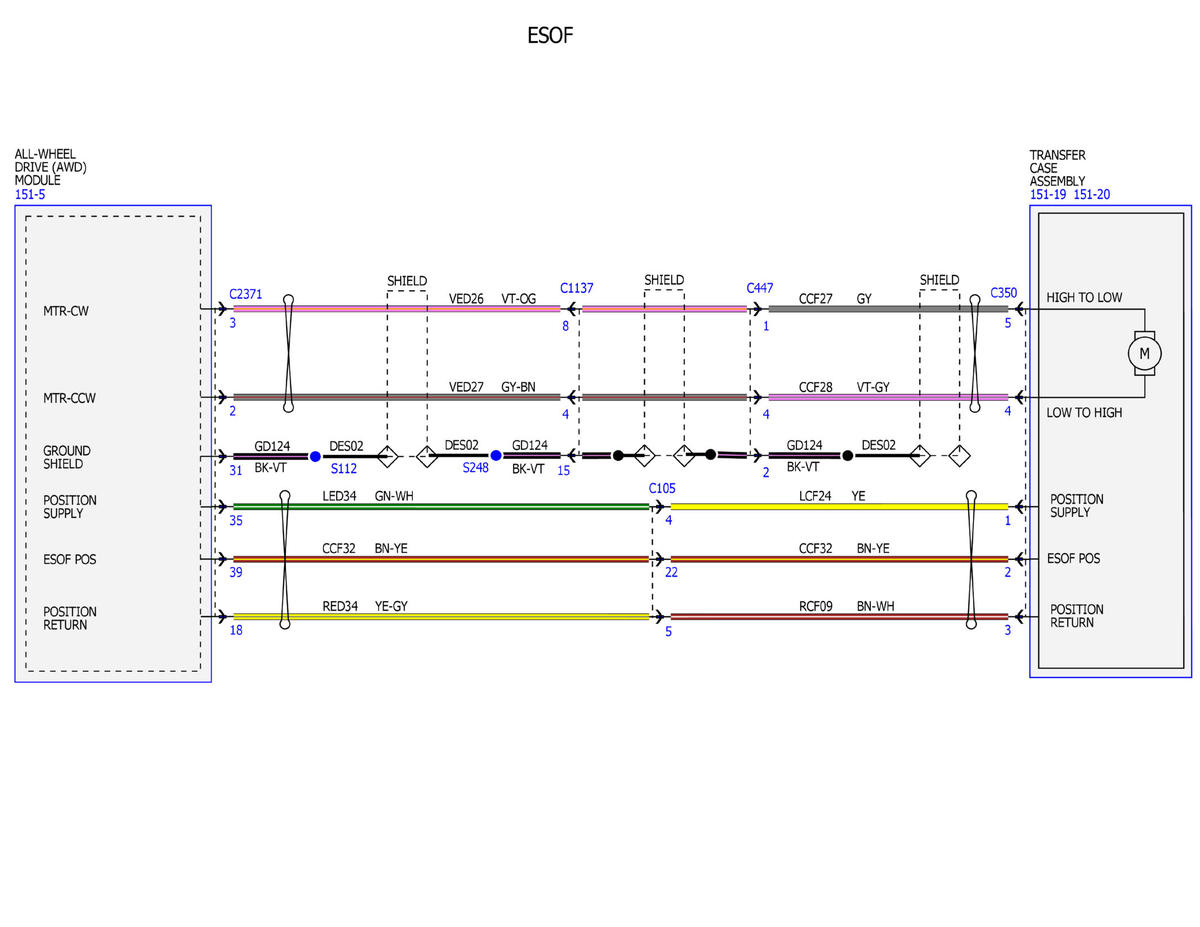

Fig 4: Four Wheel Drive Systems Wiring Diagrams (4 Of 4)
Courtesy of FORD MOTOR COMPANY
