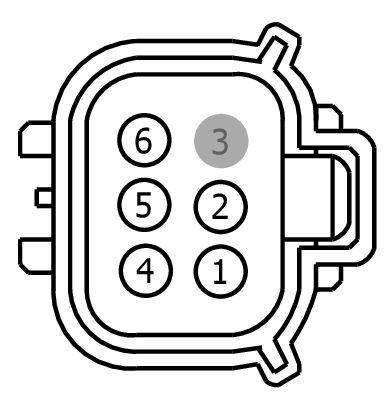

Connector End View C1292 - 4X4 CENTER AXLE DISCONNECT SOLENOID
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1292 | 4X4 CENTER AXLE DISCONNECT SOLENOID | 2B325 | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| CU5T-14474-NA | DU2Z-14474-DA | 1.50 |
| 7U5T-14474-UA | DU2Z-14474-DA | 1.50 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VED25 (WH-GN) | 14 | FAD MOTOR POWER + | 7U5T-14474-UA | ||||
| 2 | RED25 (VT-BN) | 14 | FAD MOTOR POWER - | 7U5T-14474-UA | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | RED47 (YE-BU) | 20 | FAD POSITION SIGNAL 2 | CU5T-14474-NA | ||||
| 5 | LED46 (BN-BU) | 20 | FAD POSITION SIGNAL POWER | CU5T-14474-NA | ||||
| 6 | RED46 (VT-GY) | 20 | FAD POSITION SIGNAL 1 | CU5T-14474-NA | ||||
