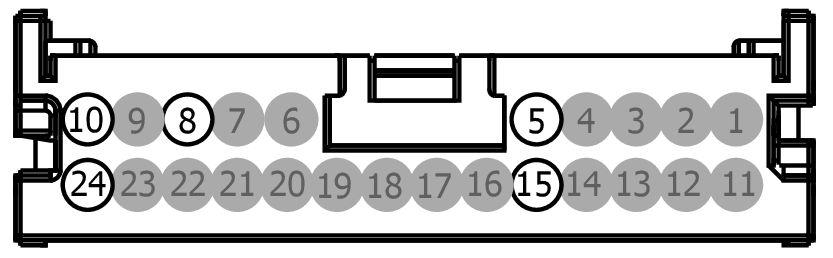

Connector End View C2515A - IMAGE PROCESSING MODULE B (IPMB)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2515A	IMAGE PROCESSING MODULE B (IPMB)	14290			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
JU5T-14474-AKA	LU2Z-14474-AA	0.50

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	JU5T-14474-AKA
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	CMP40 (WH-GN)	22	SWITCH - CAMERA ENABLE	JU5T-14474-AKA
9	*	*	Not Used	N/A
10	CBB22 (GN-OG)	22	FUSE - 22 OR CIRCUIT BREAKER	JU5T-14474-AKA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	JU5T-14474-AKA
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	GD215 (BK-GY)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	JU5T-14474-AKA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1641

Courtesy of FORD MOTOR COMPANY

Service Part Number:

LU2Z-14S411-SA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:
