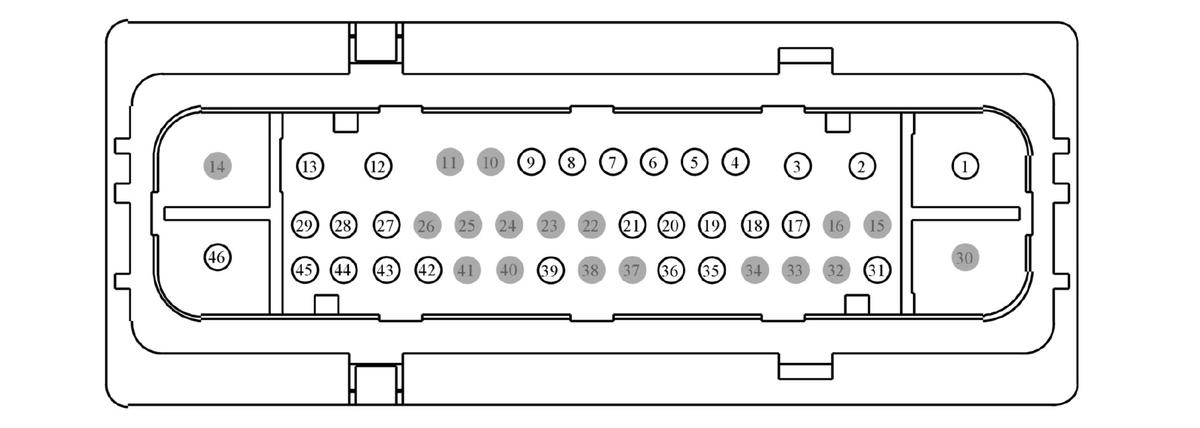

Connector End View C2371 - ALL-WHEEL DRIVE (AWD) MODULE
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2371 | ALL-WHEEL DRIVE (AWD) MODULE | 14290 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| F8VB-14474-AA | EU2Z-14474-AB | 2.80 |
| CU5T-14474-EB | DU2Z-14474-CA | 0.64 |
| DU5T-14474-NBB | EU2Z-14474-AB | 2.80 |
| CU5T-14474-DB | DU2Z-14474-CA | 0.64 |
| 1C1T-14474-AA | KU2Z-14474-AA | 6.30 |
| 97BG-14474-CFA | KU2Z-14474-AA | 6.30 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB54 (VT-OG) | 12 | FUSE - 54 OR CIRCUIT BREAKER | 97BG-14474-CFA | ||||
| 2 | VED27 (GY-BN) | 12 | SENSOR - FAN SPEED (FSS) | DU5T-14474-NBB | ||||
| 3 | VED26 (VT-OG) | 12 | SENSOR - FAN SPEED (FSS) | DU5T-14474-NBB | ||||
| 4 | VED28 (YE-VT) | 20 | SENSOR - FAN SPEED (FSS) | CU5T-14474-EB | ||||
| 5 | VED29 (BN-WH) | 20 | SENSOR - FAN SPEED (FSS) | CU5T-14474-EB | ||||
| 6 | RED46 (VT-GY) | 20 | FAD POSITION SIGNAL 1 | CU5T-14474-EB | ||||
| 7 | LED46 (BN-BU) | 20 | FAD POSITION SIGNAL POWER | CU5T-14474-EB | ||||
| 8 | VDB50 (BU-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 | CU5T-14474-EB | ||||
| 9 | VDB49 (YE-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 | CU5T-14474-EB | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | VED25 (WH-GN) | 12 | FAD MOTOR POWER + | F8VB-14474-AA | ||||
| 13 | RED25 (VT-BN) | 12 | FAD MOTOR POWER - | F8VB-14474-AA | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | * | * | Not Used | N/A | ||||
| 16 | * | * | Not Used | N/A | ||||
| 17 | CBB25 (WH-OG) | 20 | FUSE - 25 OR CIRCUIT BREAKER | CU5T-14474-EB | ||||
| 18 | RED34 (YE-GY) | 20 | SWITCH - DIESEL CRITICAL FUEL LEVEL (RUN DRY) - | CU5T-14474-EB | ||||
| 19 | VCF13 (GY-OG) | 20 | SENSOR - TRANSFER CASE SPEED (TCSS) | CU5T-14474-EB | ||||
| 20 | RED47 (YE-BU) | 20 | FAD POSITION SIGNAL 2 | CU5T-14474-EB | ||||
| 21 | RED13 (BN-YE) | 20 | SWITCH - DIESEL CRITICAL FUEL LEVEL (RUN DRY) - | CU5T-14474-EB | ||||
| 22 | * | * | Not Used | N/A | ||||
| 23 | * | * | Not Used | N/A | ||||
| 24 | * | * | Not Used | N/A | ||||
| 25 | * | * | Not Used | N/A | ||||
| 26 | * | * | Not Used | N/A | ||||
| 27 | VED22 (WH-BN) | 20 | SENSOR - FAN SPEED (FSS) | CU5T-14474-EB | ||||
| 28 | VED23 (VT-WH) | 20 | SENSOR - FAN SPEED (FSS) | CU5T-14474-EB | ||||
| 29 | GD124 (BK-VT) | 22 | GROUND - FENDER FRONT RIGHT # 2ND POINT | CU5T-14474-EB | ||||
| 30 | * | * | Not Used | N/A | ||||
| 31 | GD124 (BK-VT) | 22 | GROUND - FENDER FRONT RIGHT # 2ND POINT | CU5T-14474-EB | ||||
| 32 | * | * | Not Used | N/A | ||||
| 33 | * | * | Not Used | N/A | ||||
| 34 | * | * | Not Used | N/A | ||||
| 35 | LED34 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # SUPERCHARGER MANIFOLD ABSOLUTE PRESSURE SENSOR (SMAP) + | CU5T-14474-EB | ||||
| 36 | LED13 (BU-BN) | 20 | CTRL MOD. - POWERTRAIN # SUPERCHARGER MANIFOLD ABSOLUTE PRESSURE SENSOR (SMAP) + | CU5T-14474-EB | ||||
| 37 | * | * | Not Used | N/A | ||||
| 38 | * | * | Not Used | N/A | ||||
| 39 | CCF32 (WH-GN) | 20 | SWITCH - LOCKER MODE | CU5T-14474-EB | ||||
| 40 | * | * | Not Used | N/A | ||||
| 41 | * | * | Not Used | N/A | ||||
| 42 | CED09 (BU-OG) | 18 | REAR E-LOCKER COIL + | CU5T-14474-DB | ||||
| 43 | RED09 (GN-BN) | 18 | REAR E-LOCKER COIL - | CU5T-14474-DB | ||||
| 44 | CED44 (GY-VT) | 18 | FRONT E-LOCKER COIL + | CU5T-14474-DB | ||||
| 45 | RED44 (GN-WH) | 18 | FRONT E-LOCKER COIL - | CU5T-14474-DB | ||||
| 46 | GD124 (BK-VT) | 8 | GROUND - FENDER FRONT RIGHT # 2ND POINT | 1C1T-14474-AA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1603
Service Part Number:
KU2Z-14S411-NA
Gauge:
12 14 20
Pin material:
Tin
Cavities:
46
Vehicle Uses:
- Module - Anti-Lock Brake System
