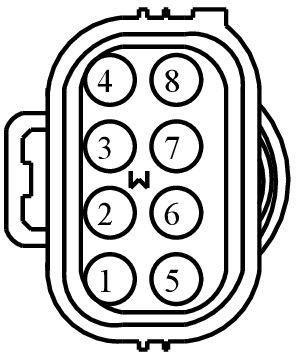

Connector End View C2370 - TRANSFER CASE ASSEMBLY
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2370 | TRANSFER CASE ASSEMBLY | 14405 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| FU5T-14421-CA | Not Available | |
| 1F1T-14421-FA | EU2Z-14421-FA | 2.80 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LED34 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # SUPERCHARGER MANIFOLD ABSOLUTE PRESSURE SENSOR (SMAP) + | 1F1T-14421-FA | ||||
| 2 | RED34 (YE-GY) | 20 | SWITCH - DIESEL CRITICAL FUEL LEVEL (RUN DRY) - | 1F1T-14421-FA | ||||
| 3 | VED28 (YE-VT) | 20 | SENSOR - FAN SPEED (FSS) | 1F1T-14421-FA | ||||
| 4 | VED29 (BN-WH) | 20 | SENSOR - FAN SPEED (FSS) | 1F1T-14421-FA | ||||
| 5 | VED23 (VT-WH) | 20 | SENSOR - FAN SPEED (FSS) | 1F1T-14421-FA | ||||
| 6 | VED22 (WH-BN) | 20 | SENSOR - FAN SPEED (FSS) | 1F1T-14421-FA | ||||
| 7 | VED26 (VT-OG) | 12 | SENSOR - FAN SPEED (FSS) | FU5T-14421-CA | ||||
| 8 | VED27 (GY-BN) | 12 | SENSOR - FAN SPEED (FSS) | FU5T-14421-CA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1084
Service Part Number:
AU2Z-14S411-AEA
Gauge:
12
Pin material:
Tin (greased)
Cavities:
8
Vehicle Uses:
- Connector - Inline
