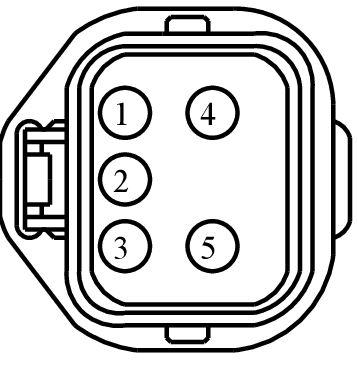

Connector End View C350 - TRANSFER CASE ASSEMBLY
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C350 | TRANSFER CASE ASSEMBLY | 14405 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| F77B-14474-AA | Not Available | |
| BU5T-14474-EA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LCF24 (YE) | 20 | CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE ENCODER POWER (VCC) | F77B-14474-AA | ||||
| 2 | CCF32 (WH-GN) | 20 | SWITCH - LOCKER MODE | F77B-14474-AA | ||||
| 3 | RCF09 (BN-WH) | 20 | CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR POSITION RETURN (4WDPRTN) | F77B-14474-AA | ||||
| 4 | CCF28 (VT-GY) | 12 | CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MODE LOW TO HIGH | BU5T-14474-EA | ||||
| 5 | CCF27 (GY) | 12 | CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MODE HIGH TO LOW | BU5T-14474-EA | ||||

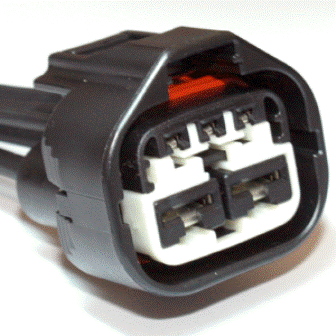

Available Pigtail Kits
Pigtail Kit Part Number WPT-153
Service Part Number:
1U2Z-14S411-BHA
Gauge:
10 14
Pin material:
Tin
Cavities:
5
Vehicle Uses:
- Module - Variable Speed Blower Controller
- Solenoid - Electronic Automatic Temperature Control (EATC)
