Parking Aid - Component Location

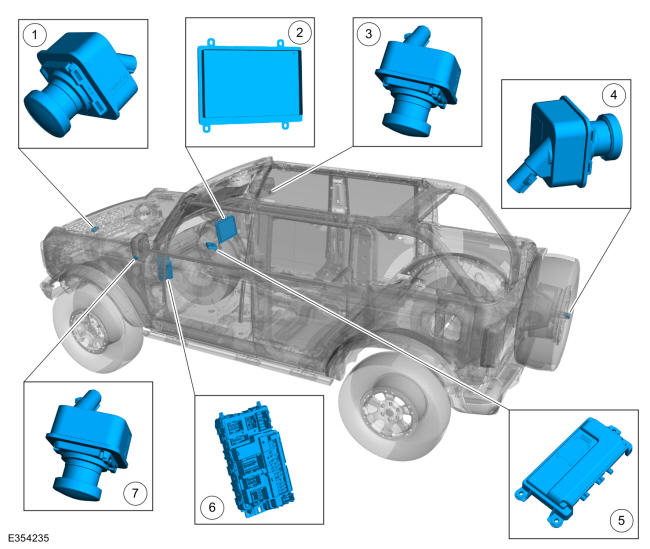

GFD627360Courtesy of FORD MOTOR COMPANY
Item Description
1 Front parking aid camera
2 Audio system display
3 RH side parking aid camera
4 Rear parking aid camera
5 IPMB (360 degree view camera system)
6 BCM (rear only parking aid camera system)
7 LH side parking aid camera
