Parking Aid

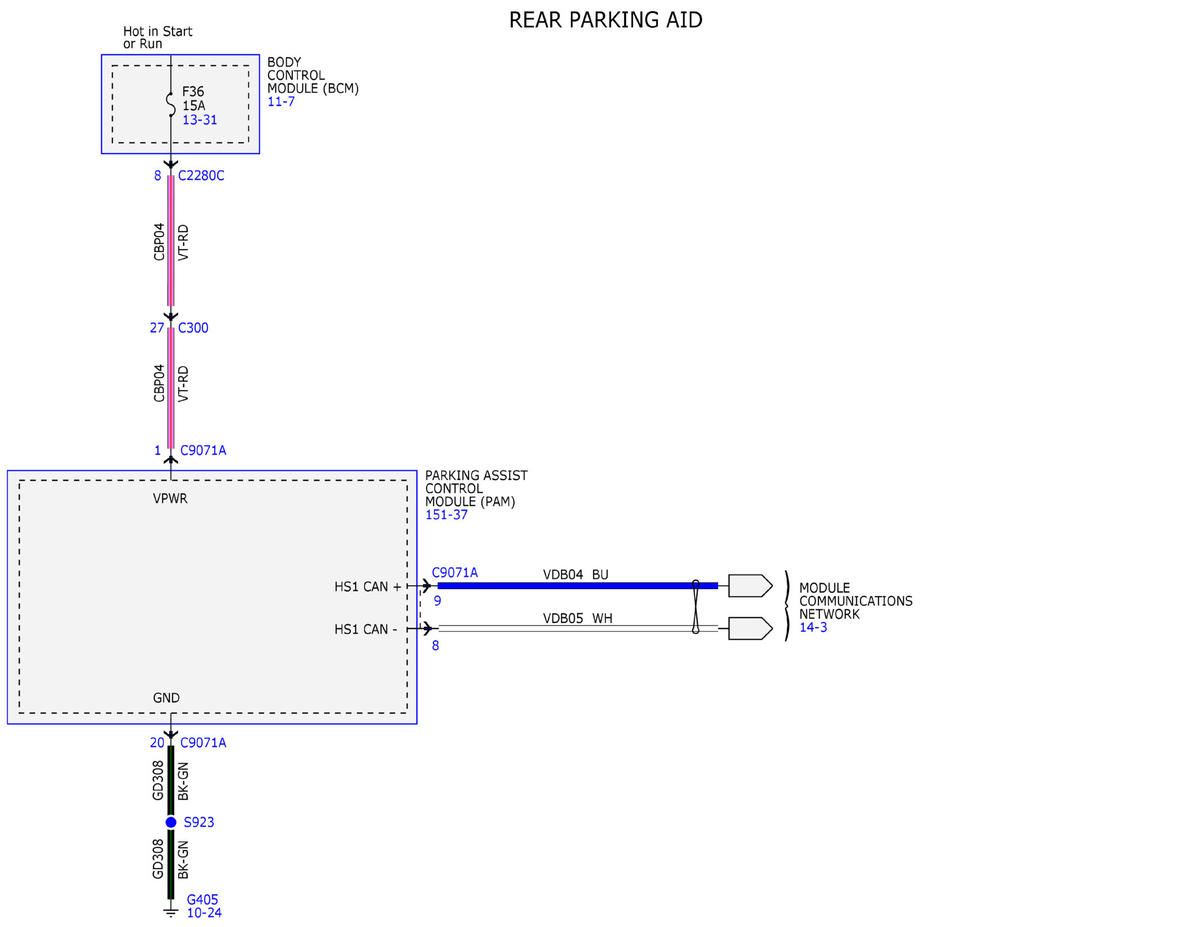

Fig 1: Parking Aid Wiring Diagrams (1 Of 25)

GFDWR127838

Courtesy of FORD MOTOR COMPANY

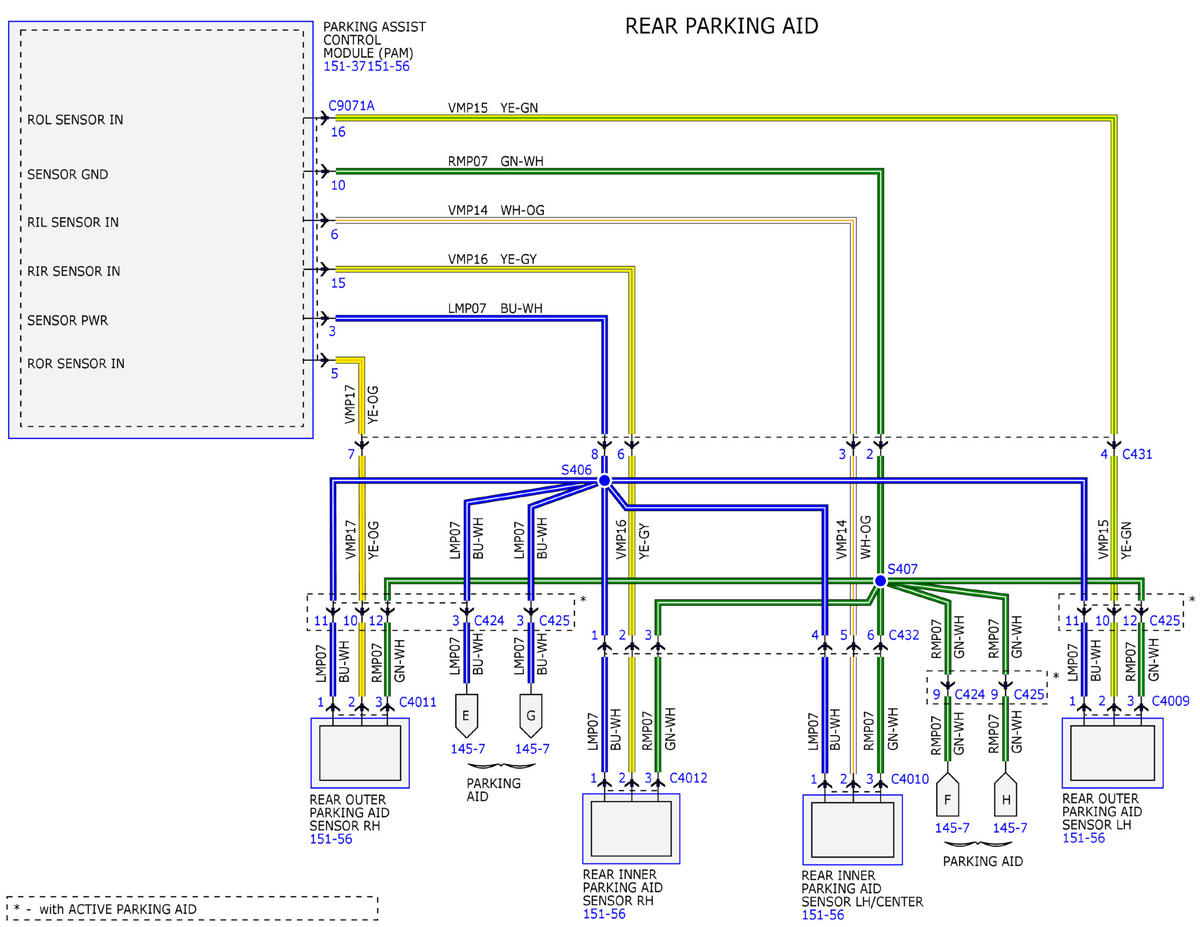

Fig 2: Parking Aid Wiring Diagrams (2 Of 25)

GFDWR127849

Courtesy of FORD MOTOR COMPANY

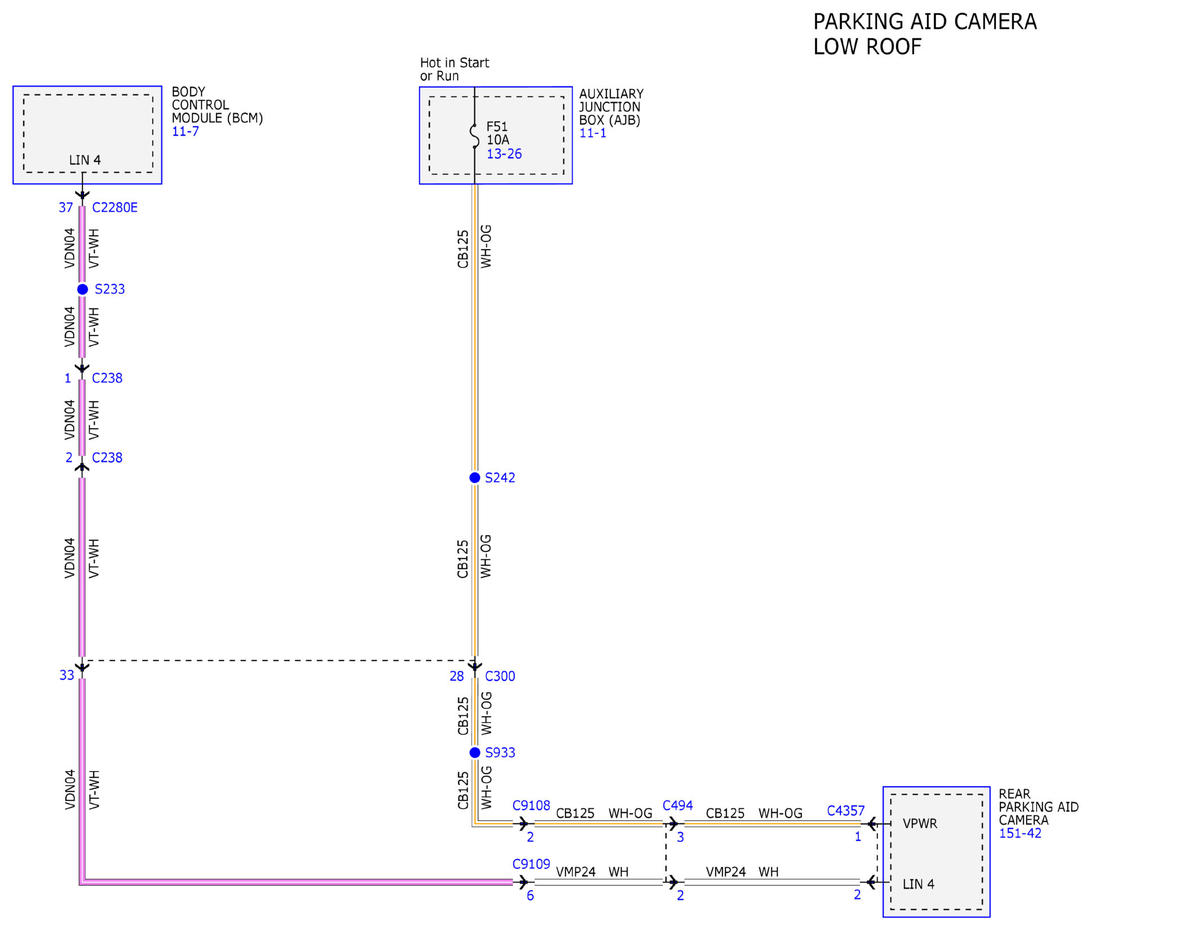

Fig 3: Parking Aid Wiring Diagrams (3 Of 25)

GFDWR127856

Courtesy of FORD MOTOR COMPANY

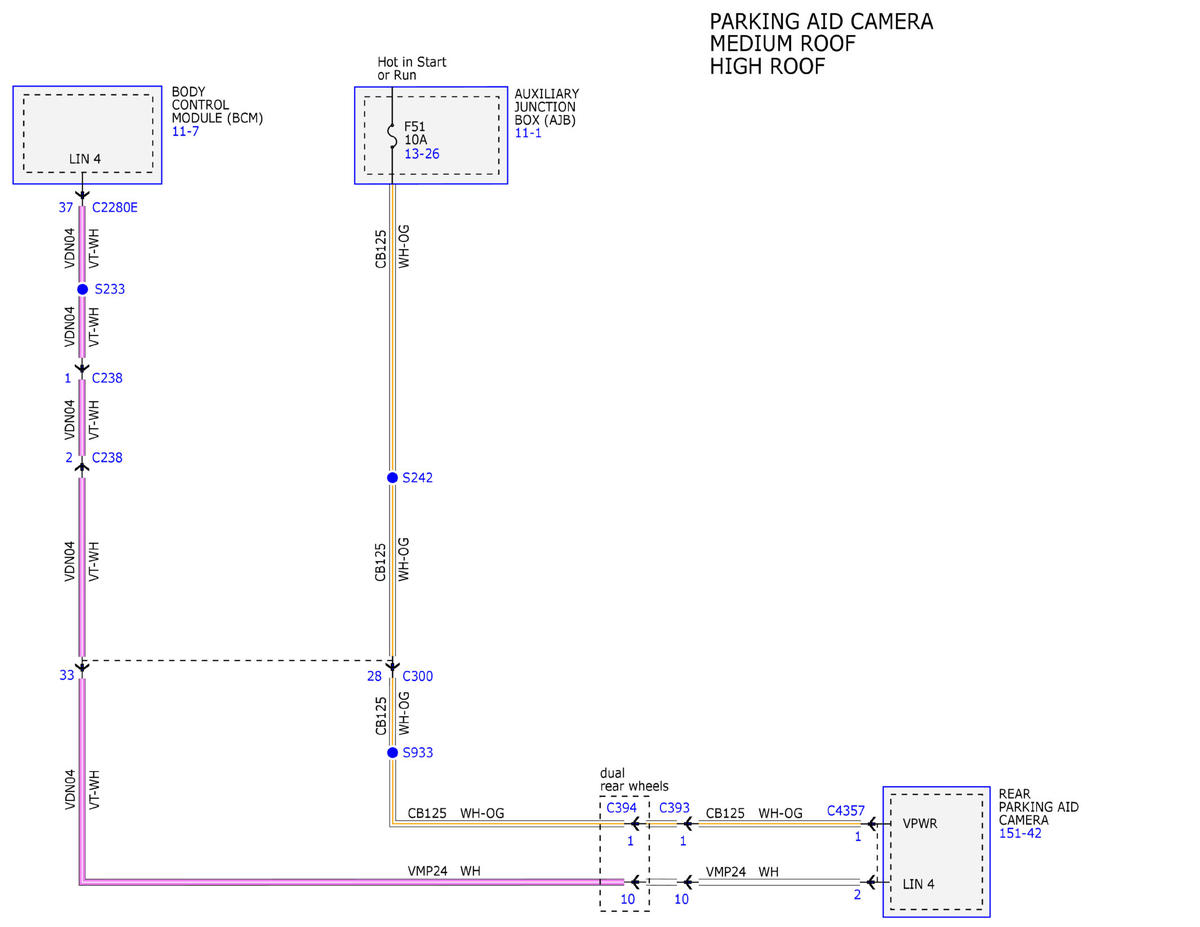

Fig 4: Parking Aid Wiring Diagrams (4 Of 25)

GFDWR127857

Courtesy of FORD MOTOR COMPANY

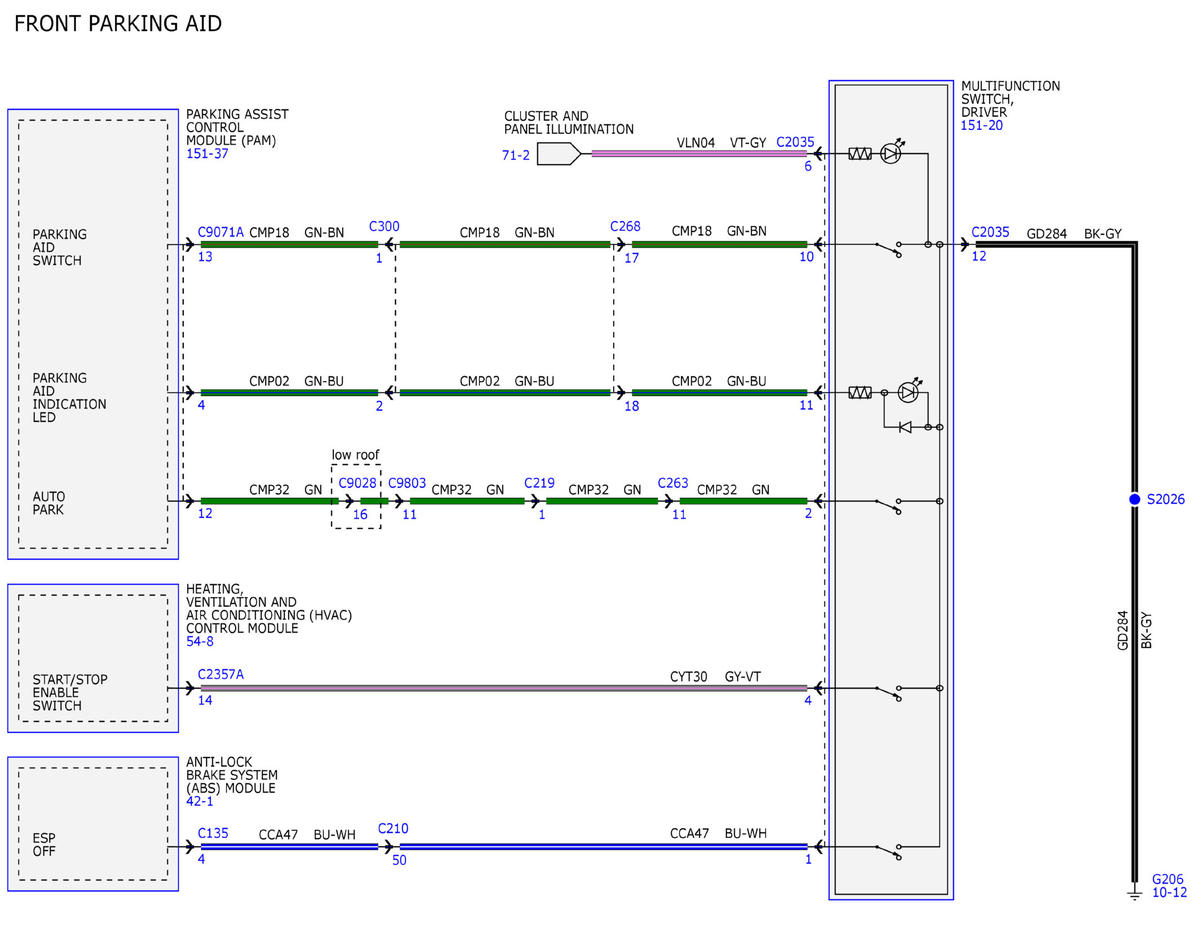

Fig 5: Parking Aid Wiring Diagrams (5 Of 25)

GFDWR127858

Courtesy of FORD MOTOR COMPANY

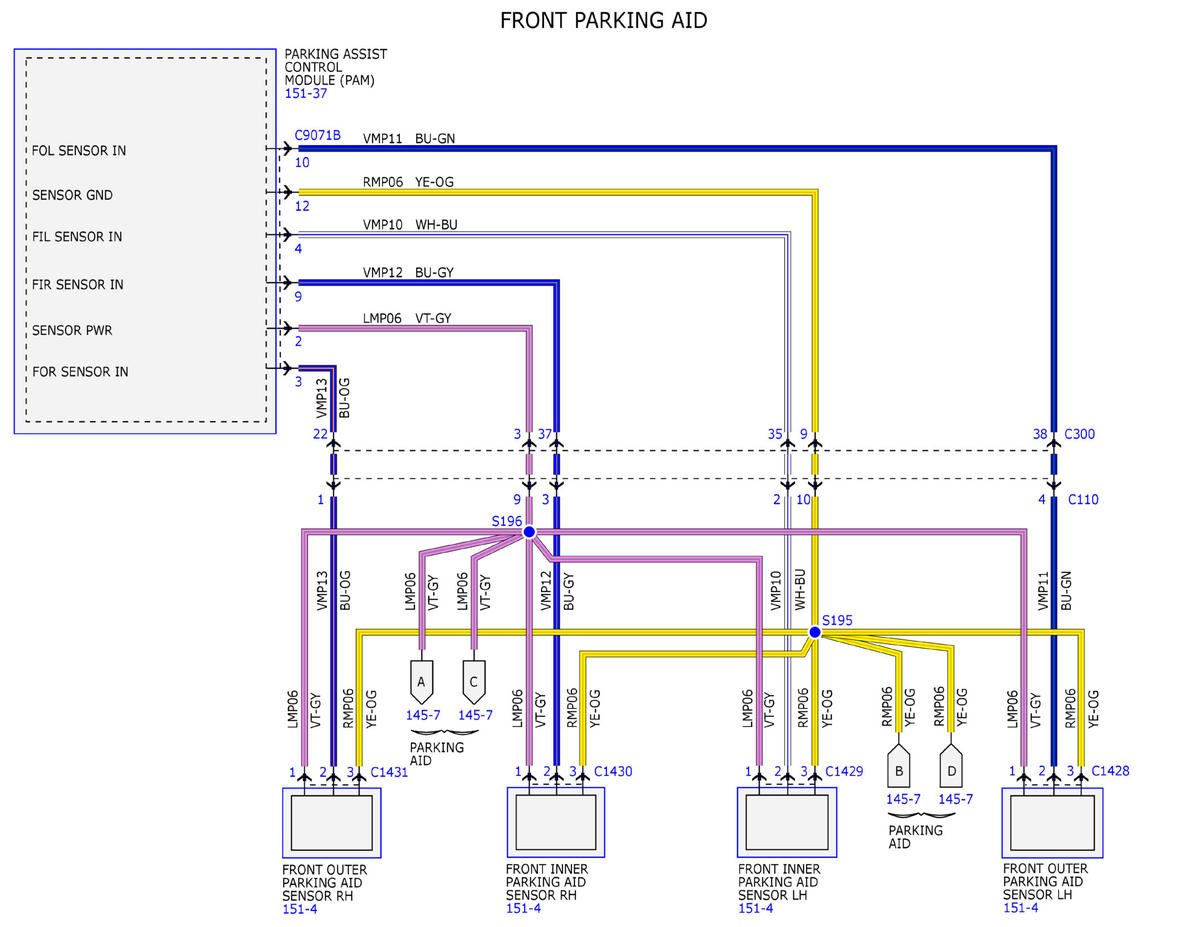

Fig 6: Parking Aid Wiring Diagrams (6 Of 25)

GFDWR127859

Courtesy of FORD MOTOR COMPANY

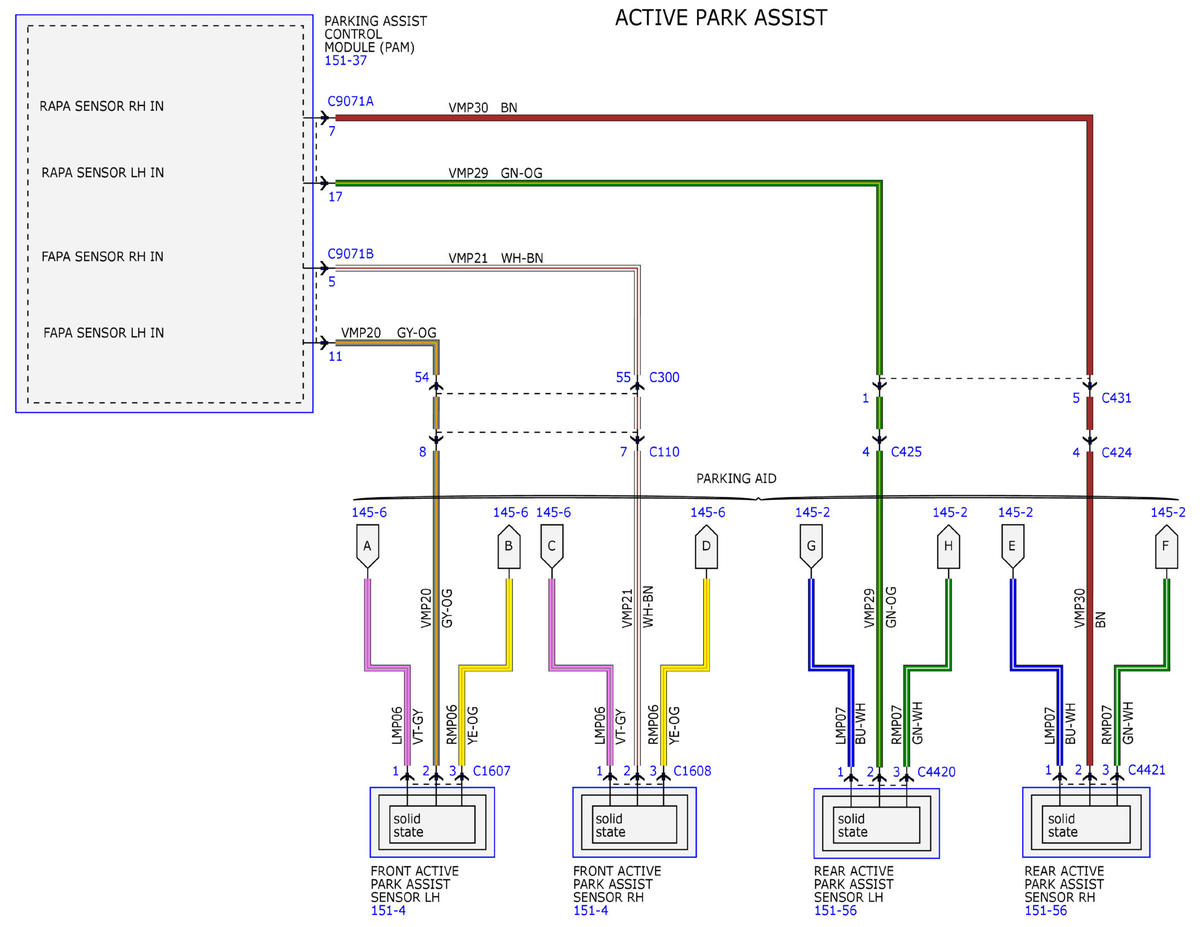

Fig 7: Parking Aid Wiring Diagrams (7 Of 25)

GFDWR127860

Courtesy of FORD MOTOR COMPANY

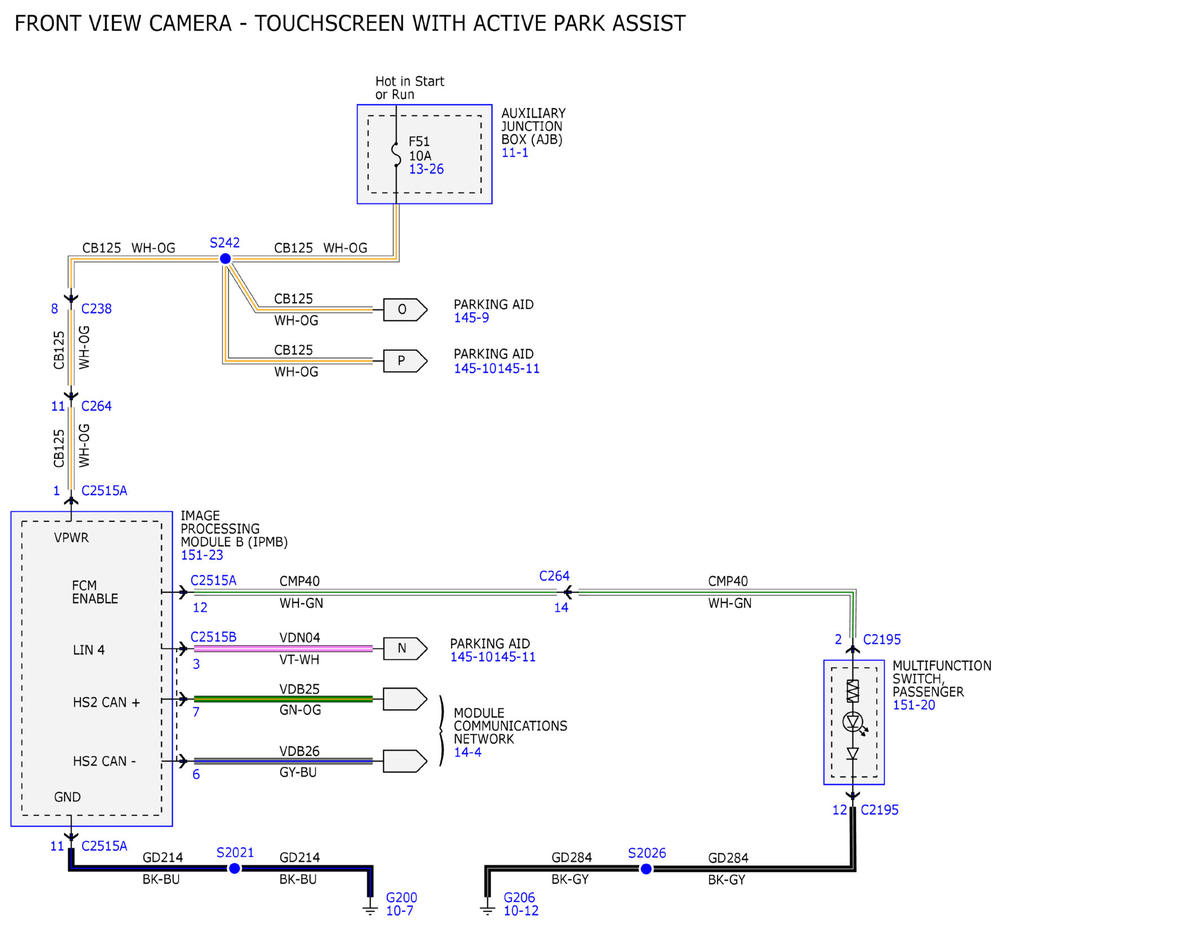

Fig 8: Parking Aid Wiring Diagrams (8 Of 25)

GFDWR127861

Courtesy of FORD MOTOR COMPANY

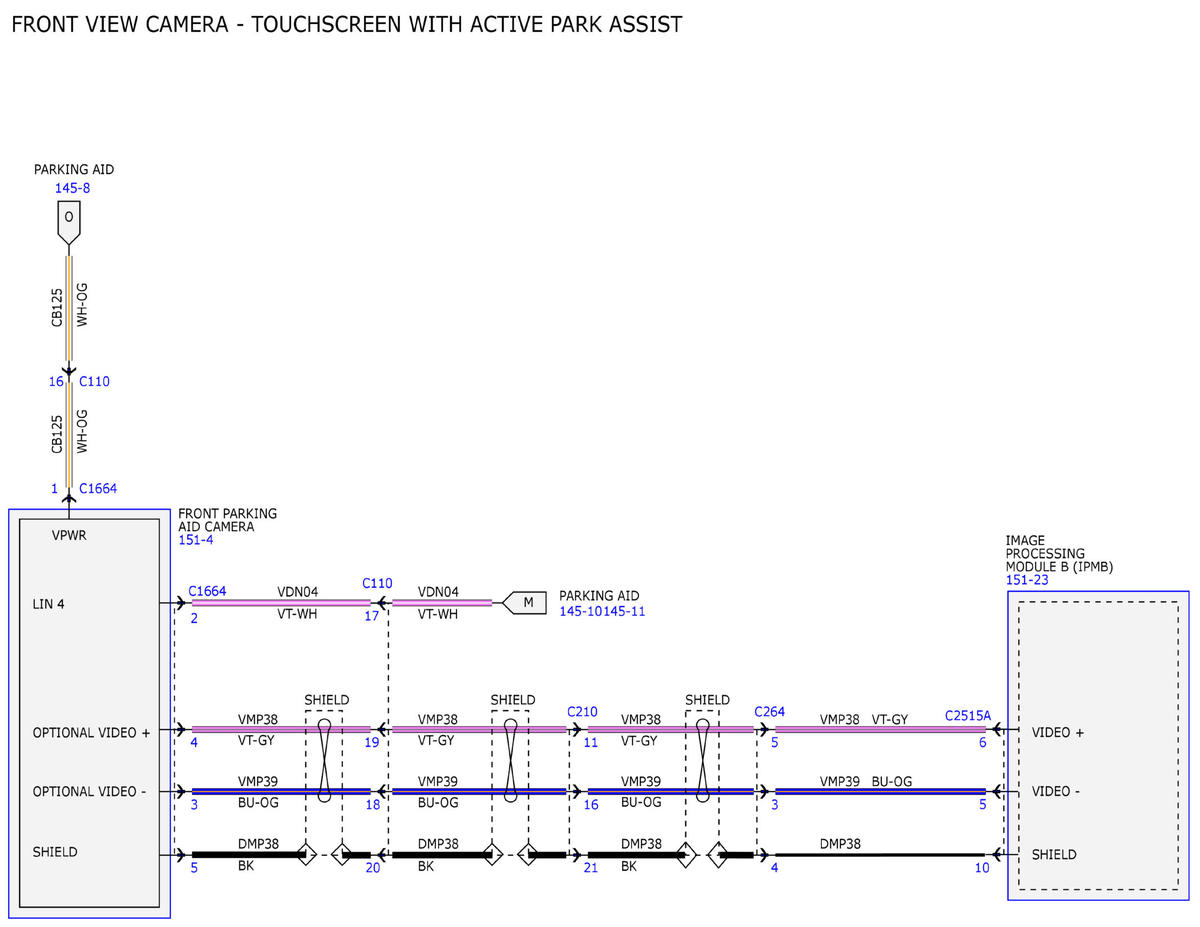

Fig 9: Parking Aid Wiring Diagrams (9 Of 25)

GFDWR127862

Courtesy of FORD MOTOR COMPANY

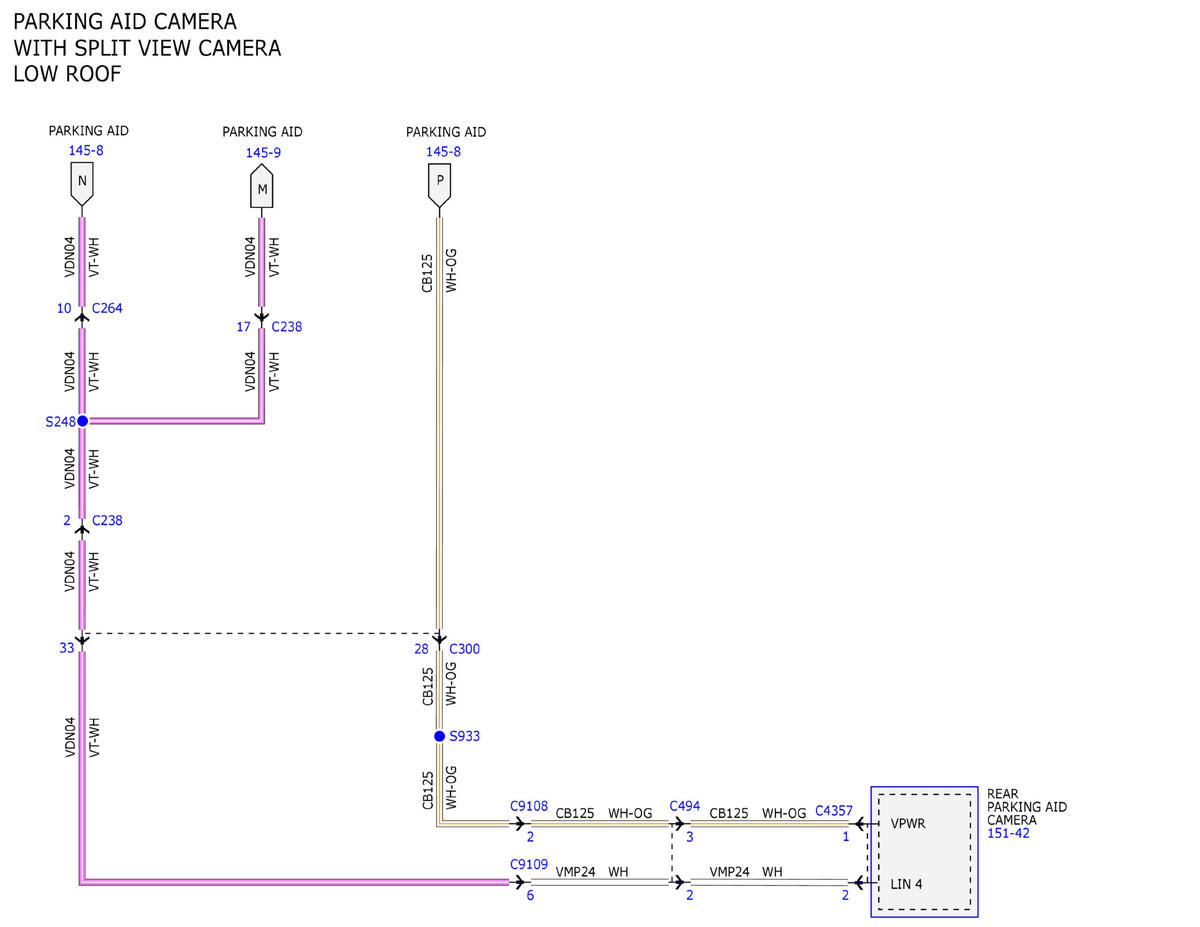

Fig 10: Parking Aid Wiring Diagrams (10 Of 25)

GFDWR127839

Courtesy of FORD MOTOR COMPANY

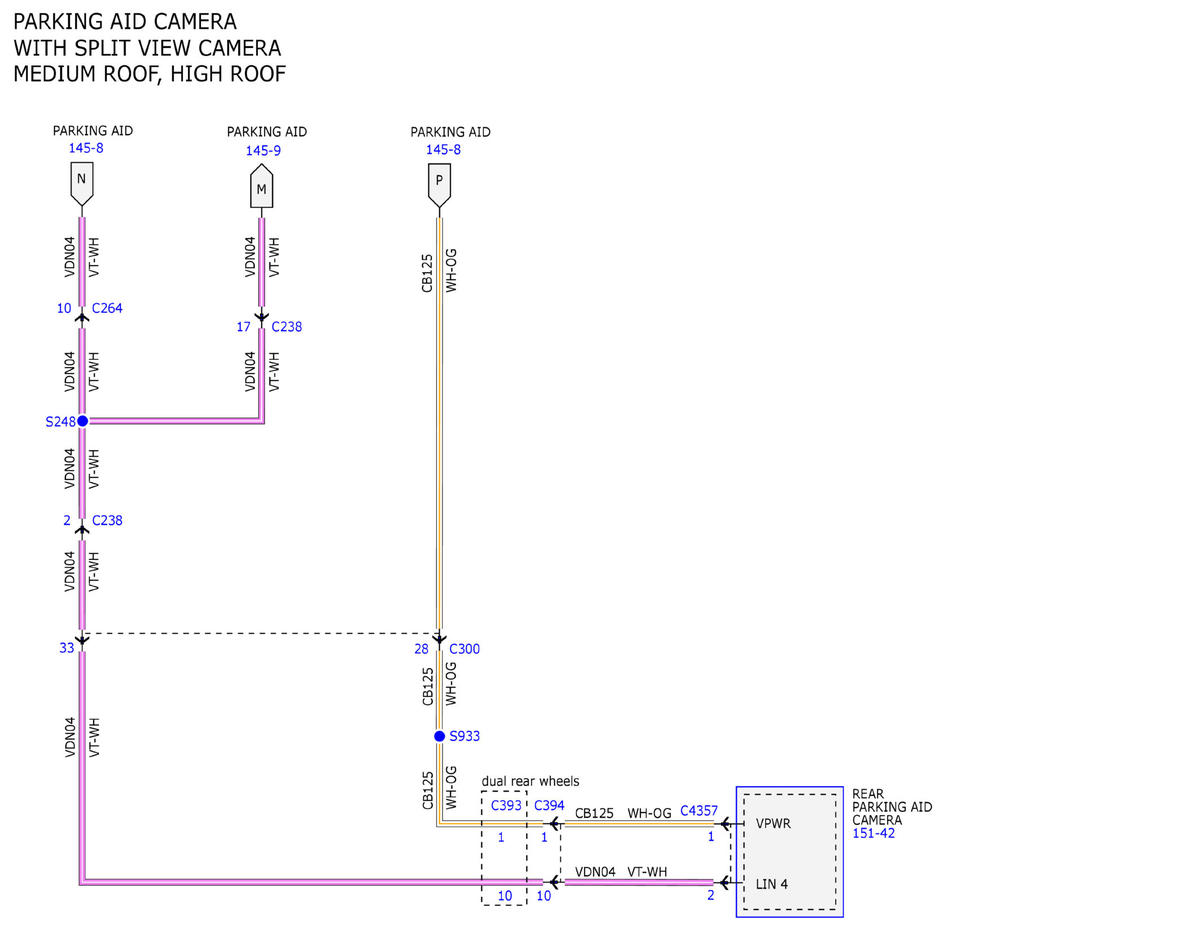

Fig 11: Parking Aid Wiring Diagrams (11 Of 25)

GFDWR127840

Courtesy of FORD MOTOR COMPANY

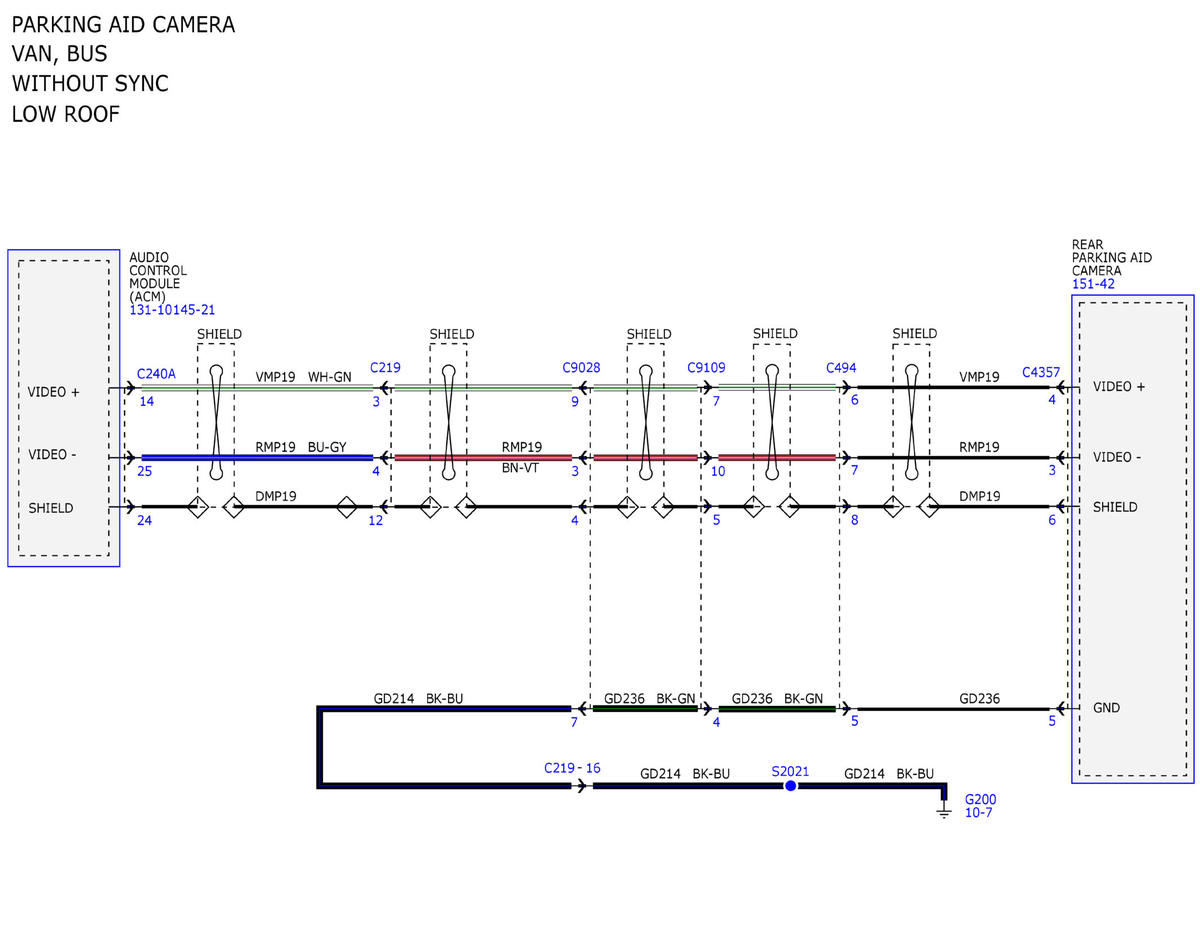

Fig 12: Parking Aid Wiring Diagrams (12 Of 25)

GFDWR127841

Courtesy of FORD MOTOR COMPANY

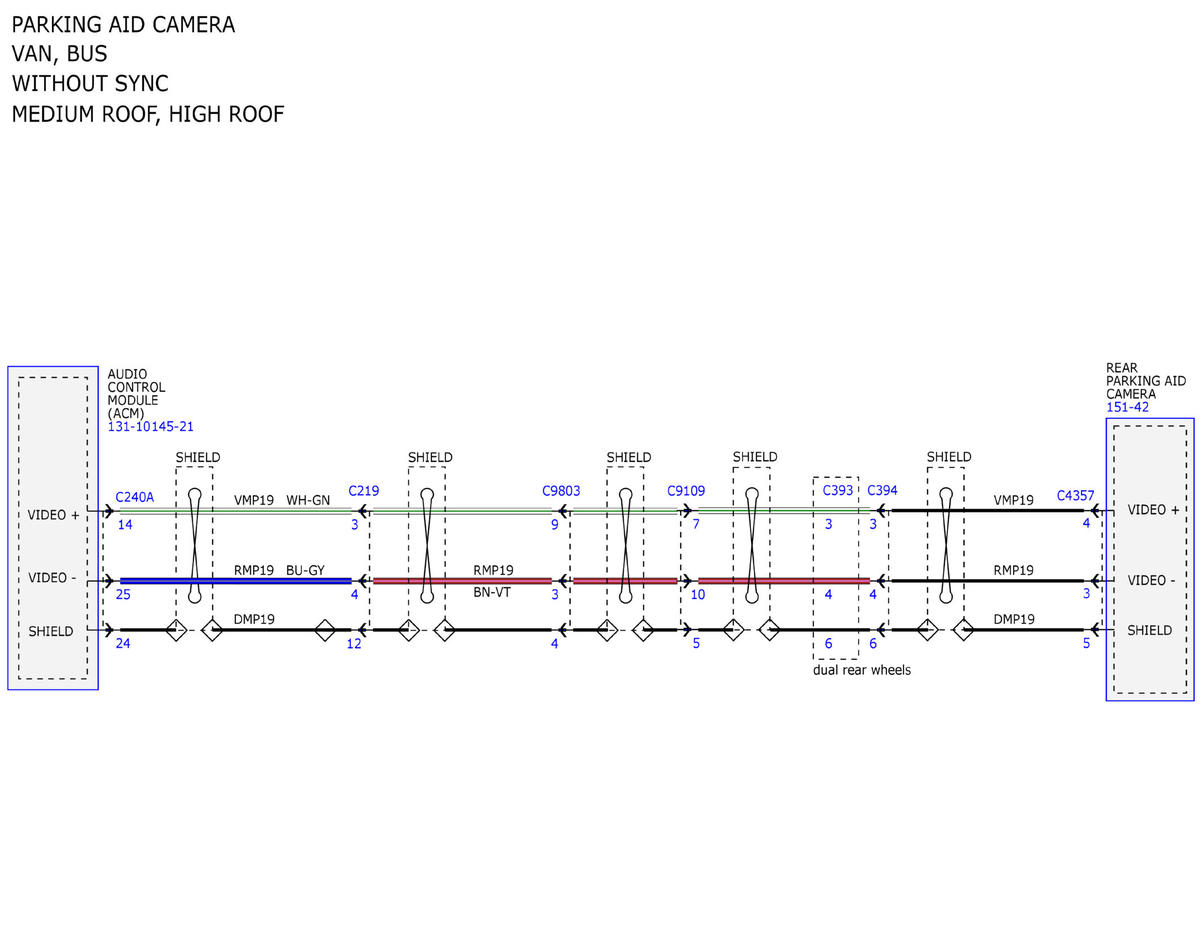

Fig 13: Parking Aid Wiring Diagrams (13 Of 25)

GFDWR127842

Courtesy of FORD MOTOR COMPANY

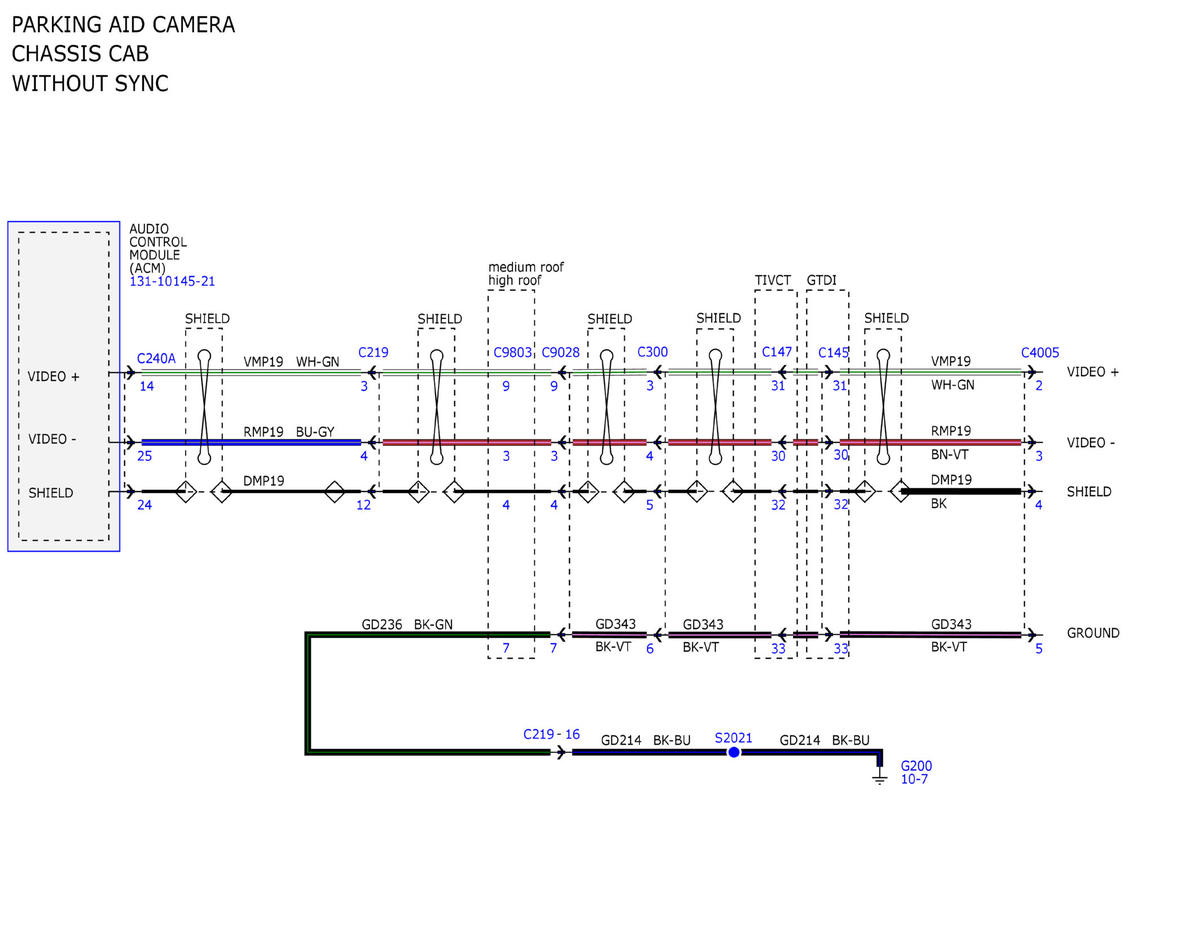

Fig 14: Parking Aid Wiring Diagrams (14 Of 25)

GFDWR127843

Courtesy of FORD MOTOR COMPANY

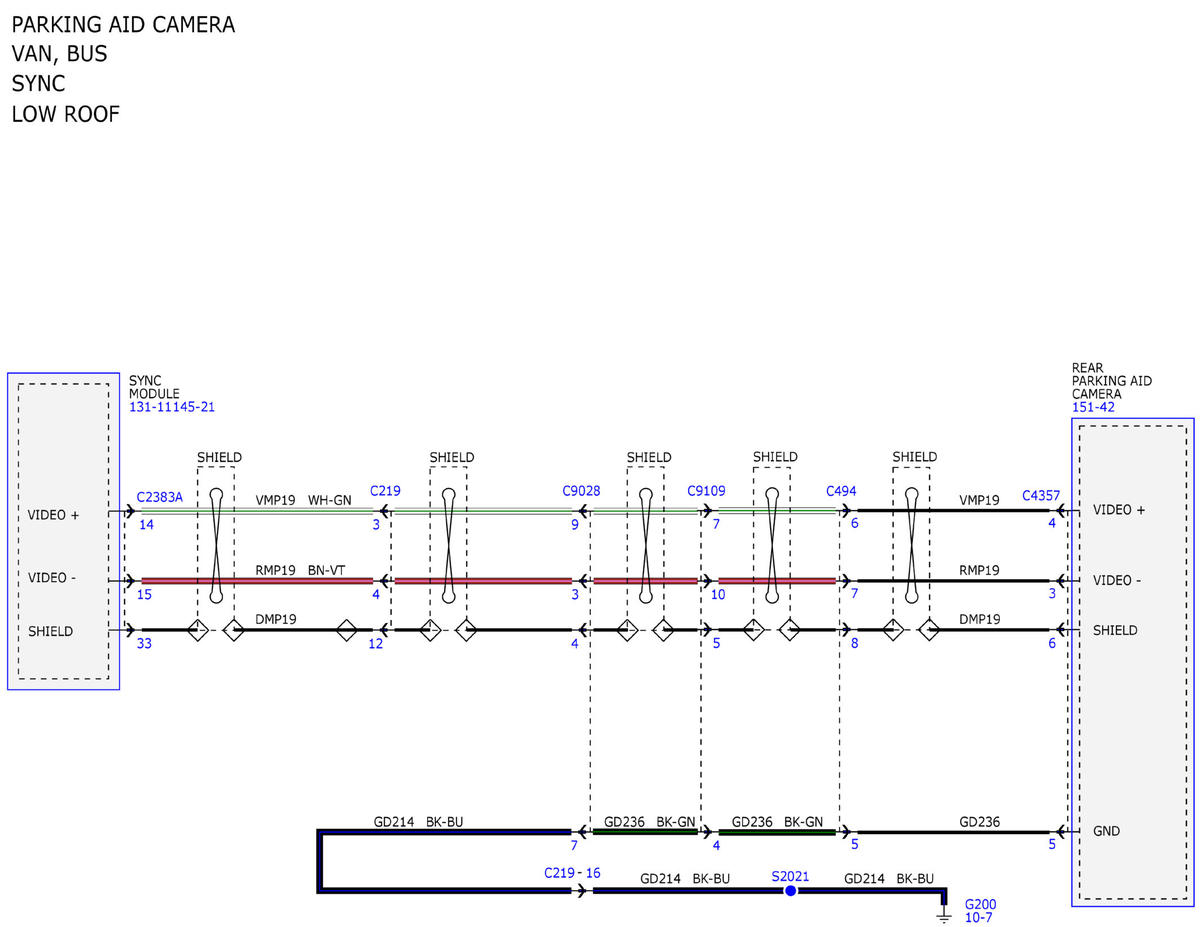

Fig 15: Parking Aid Wiring Diagrams (15 Of 25)

GFDWR127844

Courtesy of FORD MOTOR COMPANY

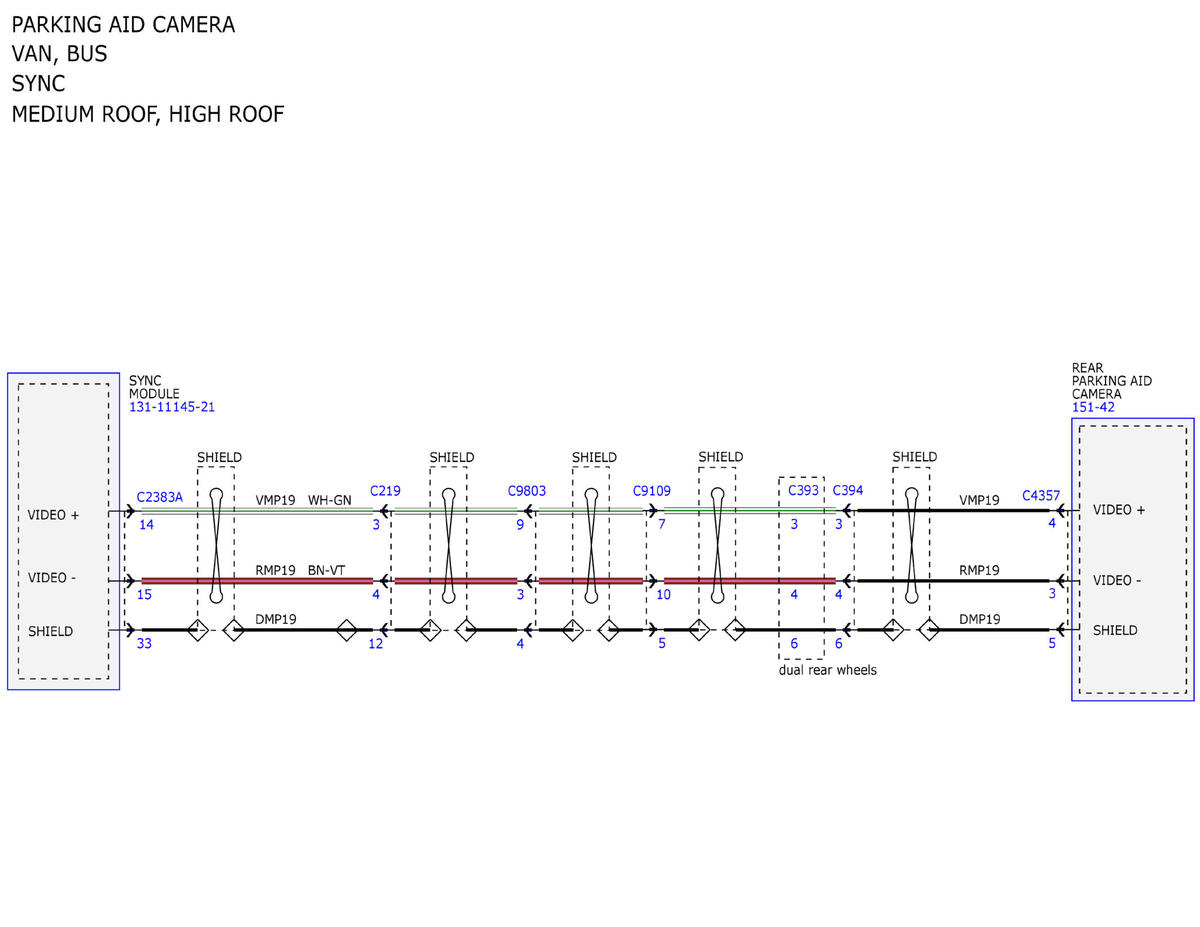

Fig 16: Parking Aid Wiring Diagrams (16 Of 25)

GFDWR127845

Courtesy of FORD MOTOR COMPANY

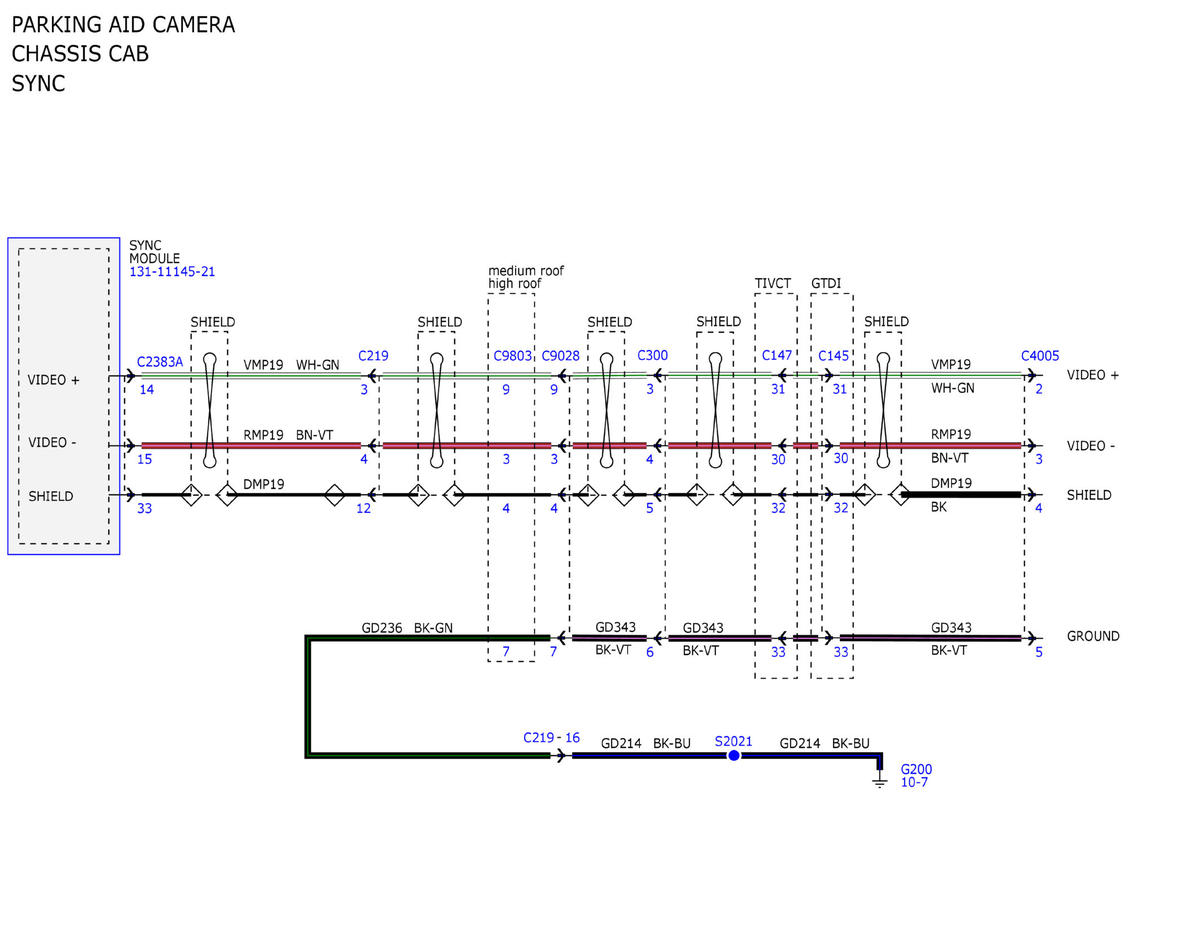

Fig 17: Parking Aid Wiring Diagrams (17 Of 25)

GFDWR127846

Courtesy of FORD MOTOR COMPANY

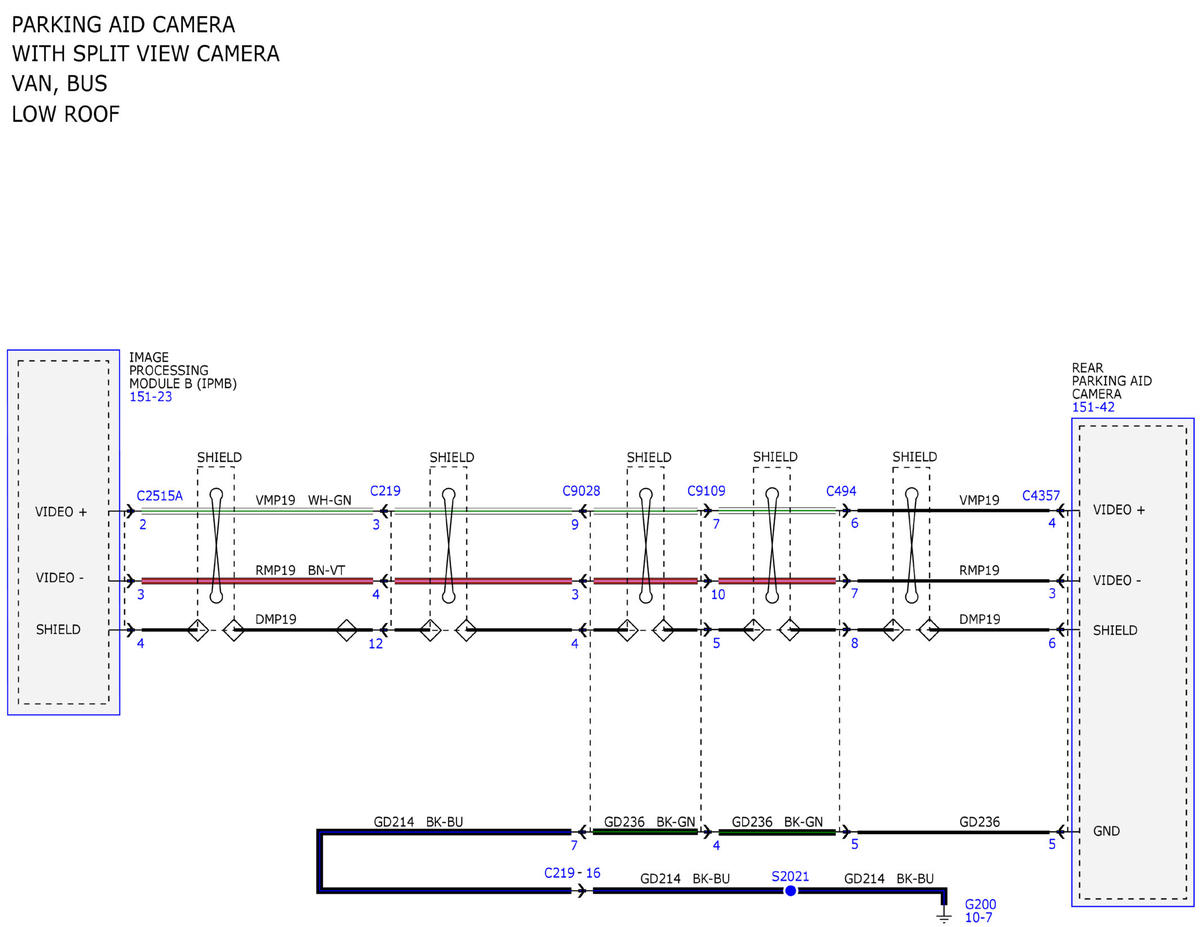

Fig 18: Parking Aid Wiring Diagrams (18 Of 25)

GFDWR127847

Courtesy of FORD MOTOR COMPANY

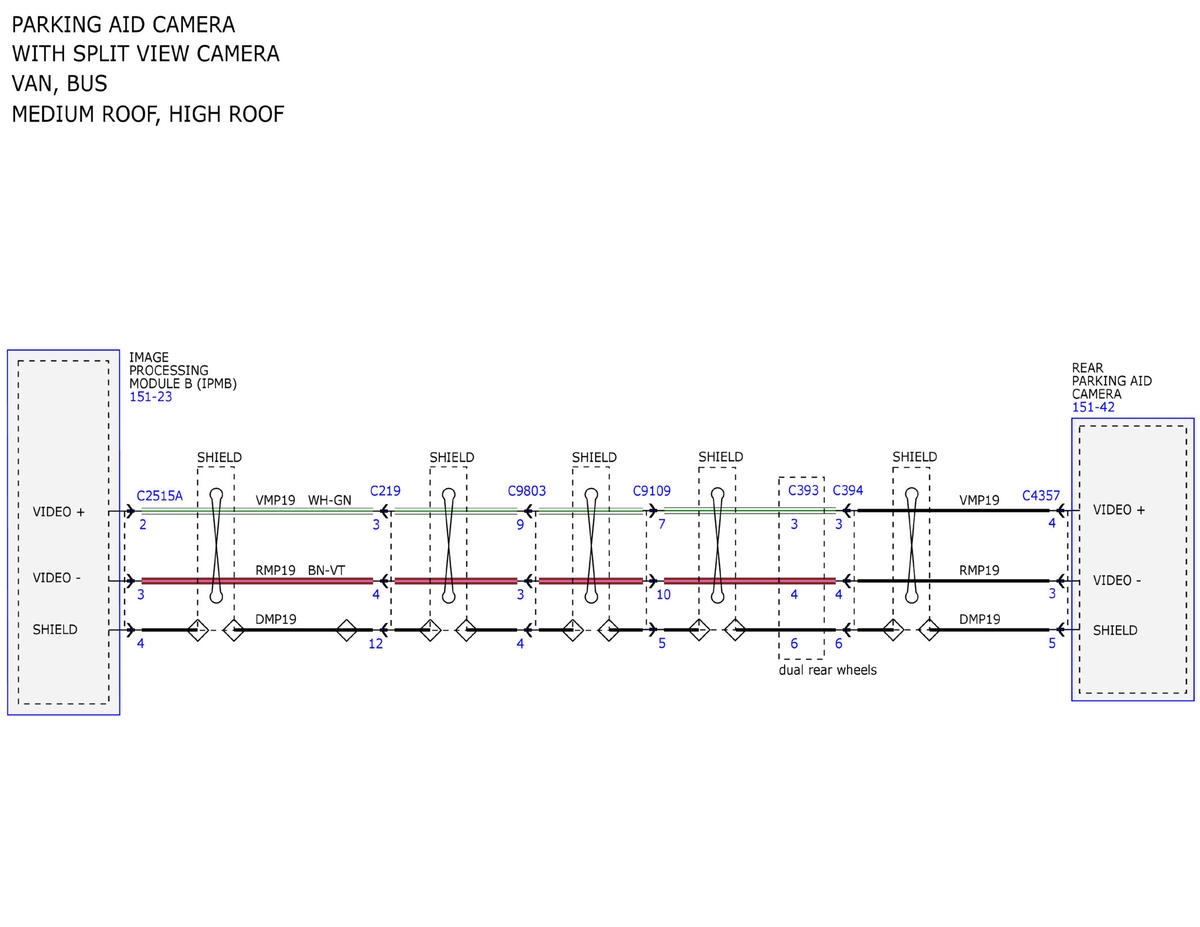

Fig 19: Parking Aid Wiring Diagrams (19 Of 25)

GFDWR127848

Courtesy of FORD MOTOR COMPANY

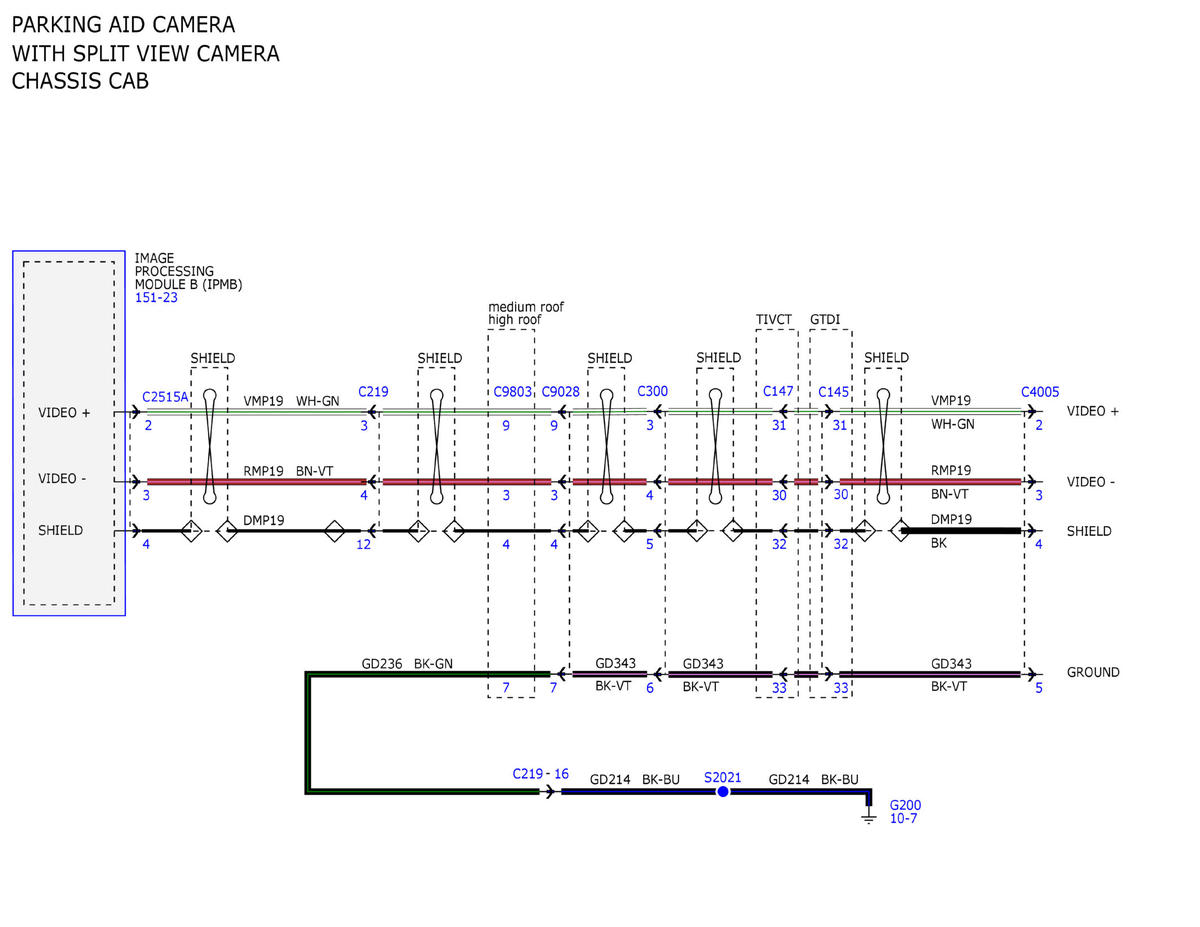

Fig 20: Parking Aid Wiring Diagrams (20 Of 25)

GFDWR127850

Courtesy of FORD MOTOR COMPANY

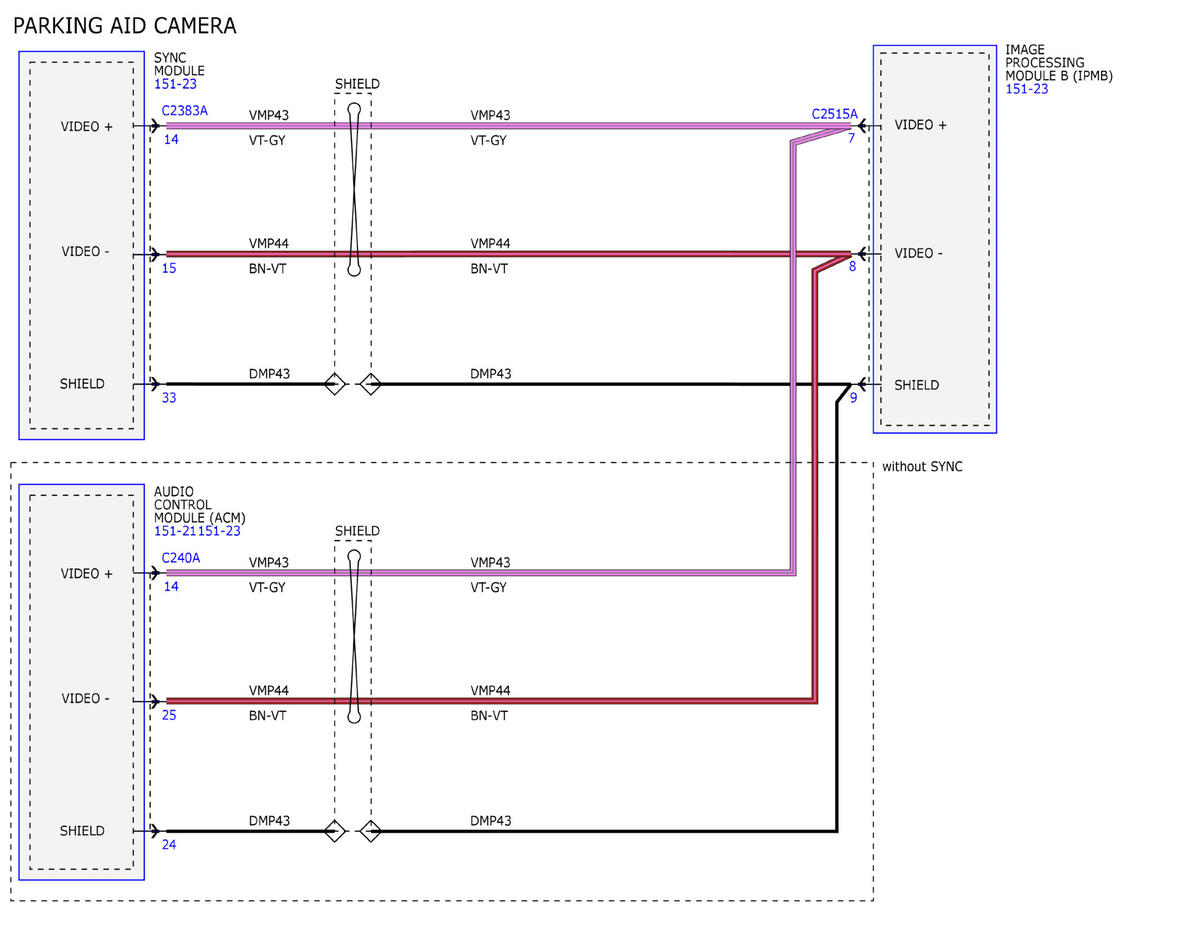

Fig 21: Parking Aid Wiring Diagrams (21 Of 25)

GFDWR127851

Courtesy of FORD MOTOR COMPANY

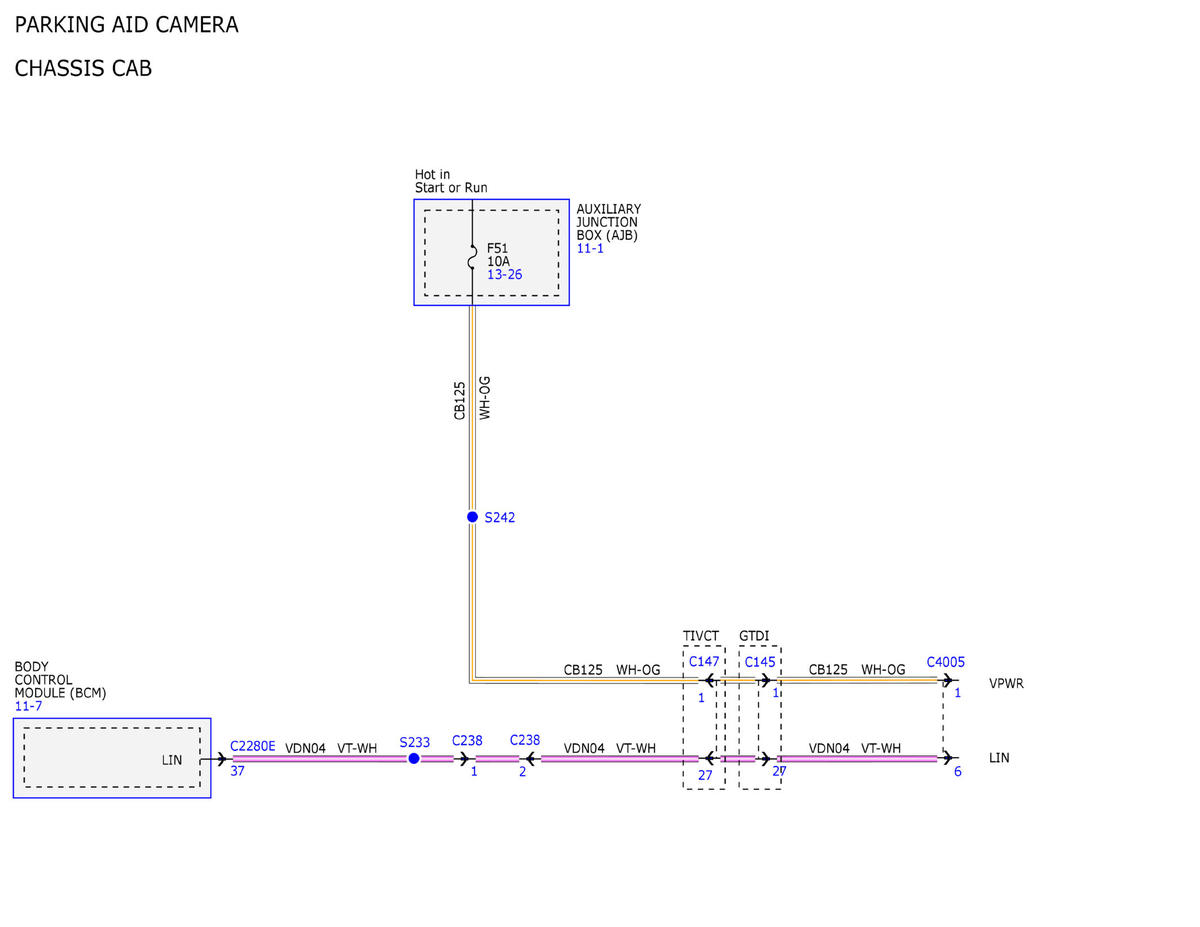

Fig 22: Parking Aid Wiring Diagrams (22 Of 25)

GFDWR127852

Courtesy of FORD MOTOR COMPANY

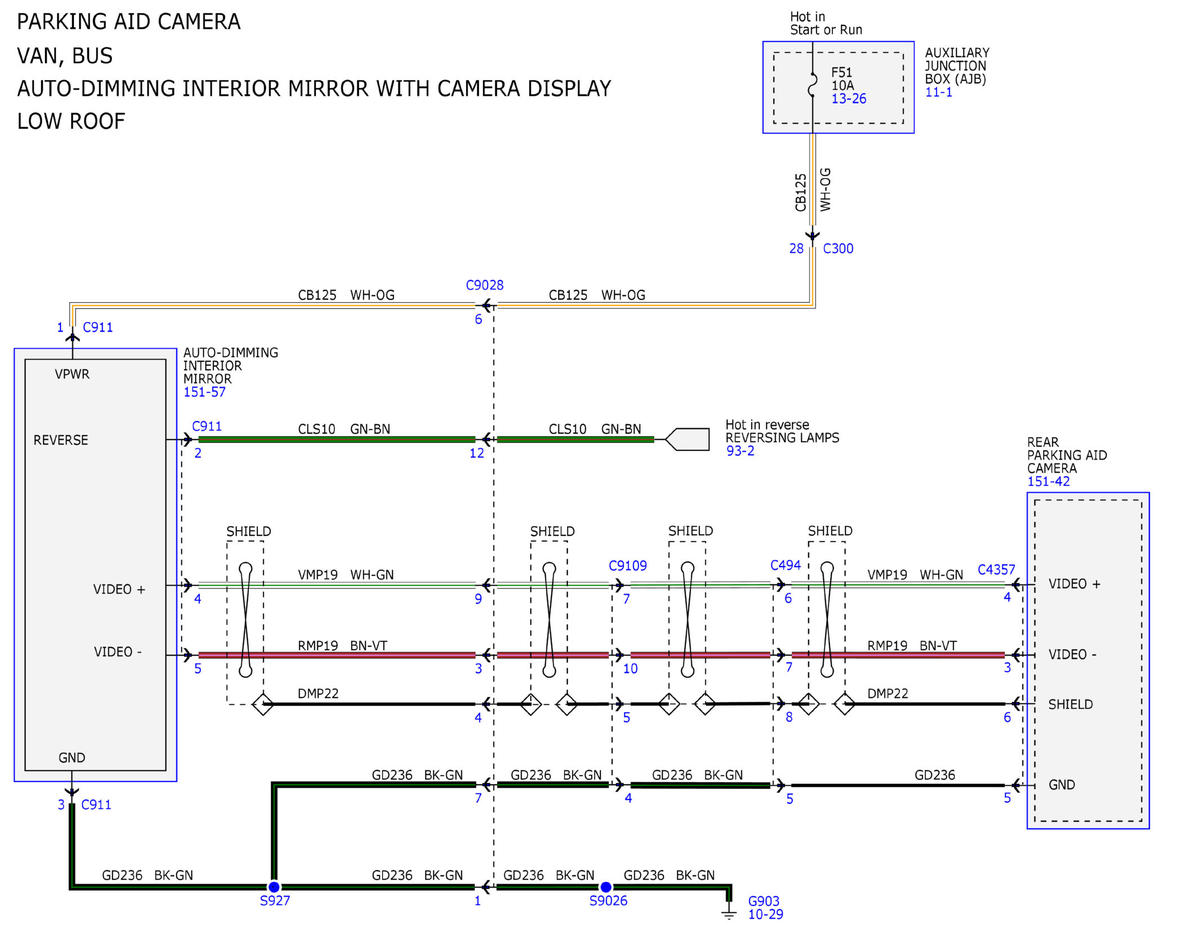

Fig 23: Parking Aid Wiring Diagrams (23 Of 25)

GFDWR127853

Courtesy of FORD MOTOR COMPANY

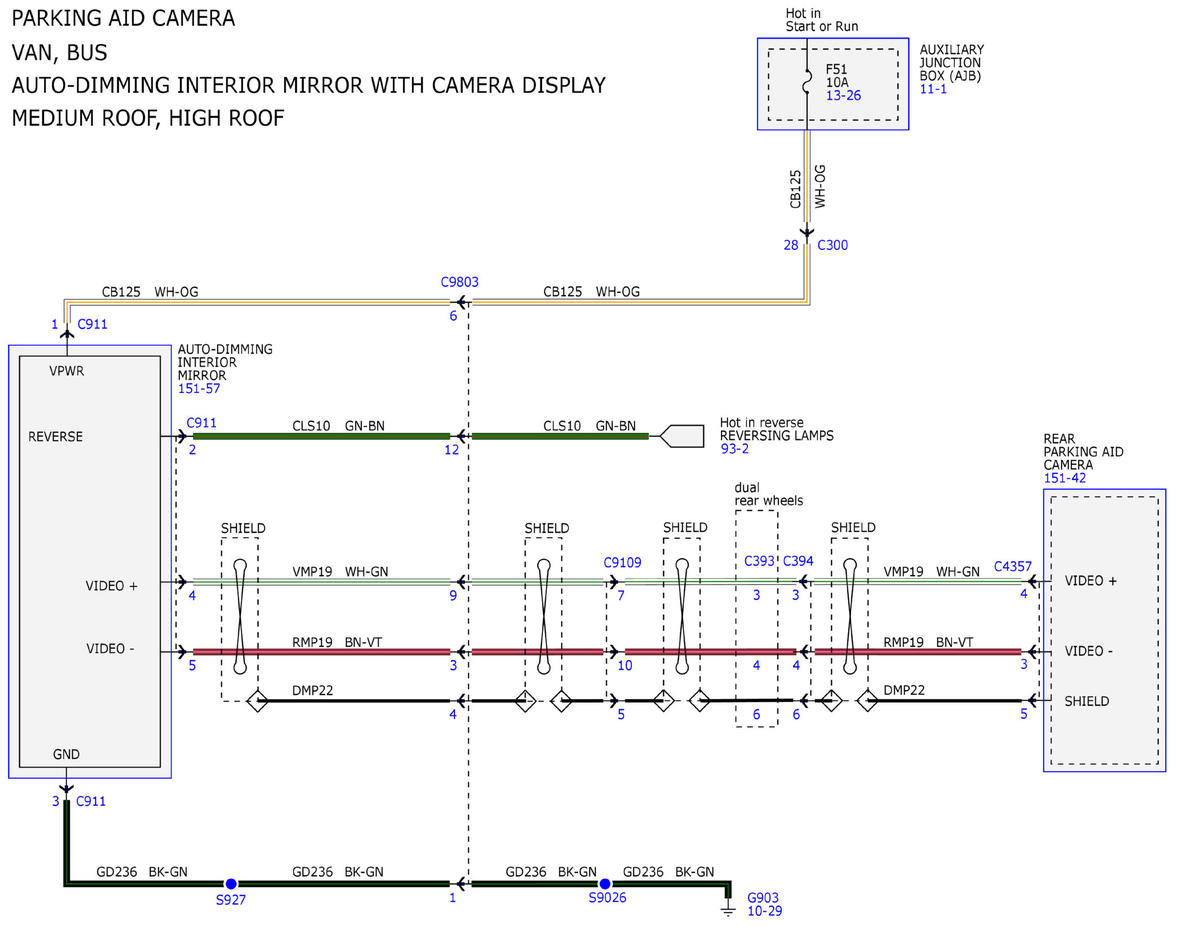

Fig 24: Parking Aid Wiring Diagrams (24 Of 25)

GFDWR127854

Courtesy of FORD MOTOR COMPANY

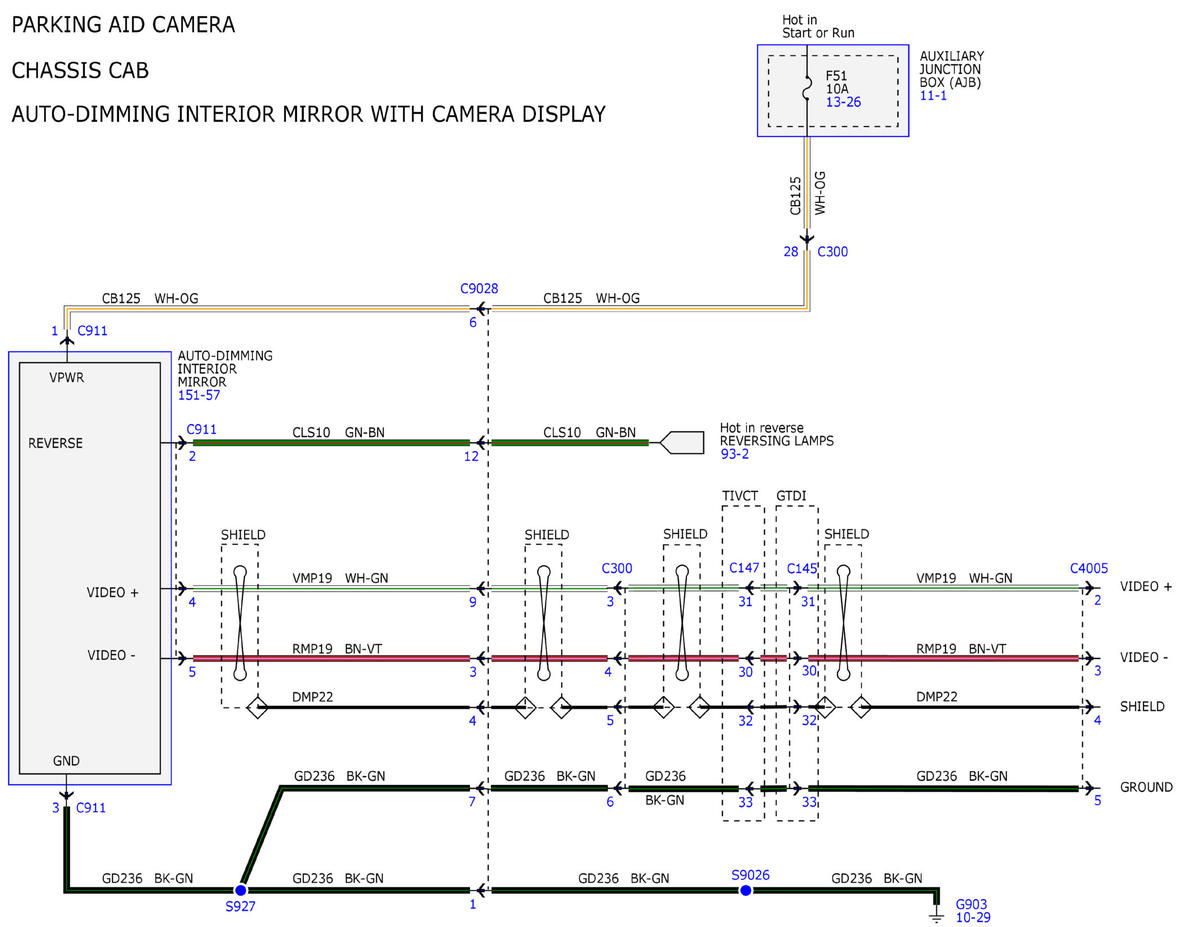

Fig 25: Parking Aid Wiring Diagrams (25 Of 25)

GFDWR127855

Courtesy of FORD MOTOR COMPANY
