Brake Pedal and Bracket - LHD: Removal

NOTE: Removal steps in this procedure may contain installation details.

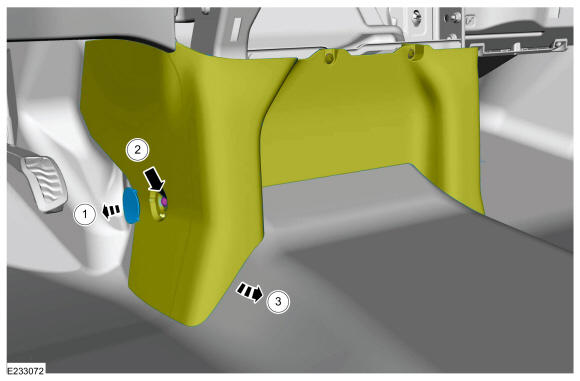

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Refer to: Steering Column .
NOTE: Make sure that the clutch pedal remains in the rest position.

NOTE: Make sure that the brake pedal remains in the rest position.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

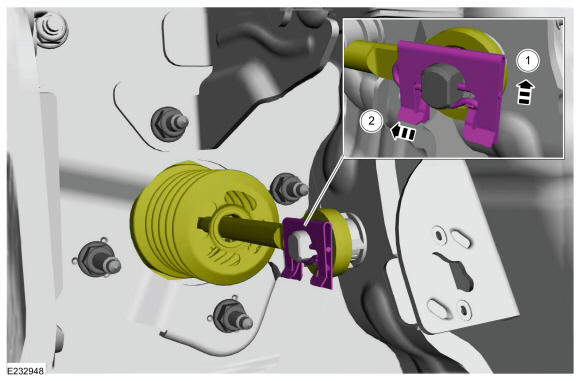

NOTE: Make sure that the brake booster vacuum is released.

Courtesy of FORD MOTOR COMPANY

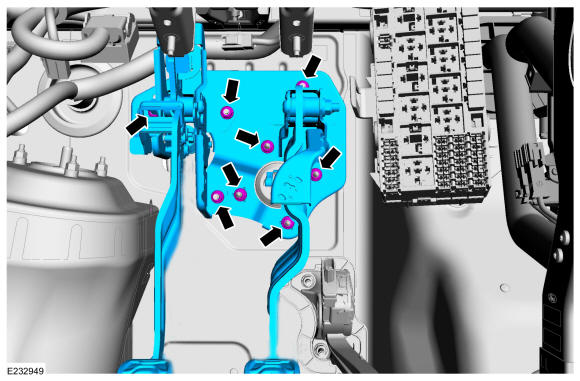

Support the brake booster.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
