Ignition Coil-On-Plug: Removal
WARNING: This page is about a different variant/trim than selected.
-
NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

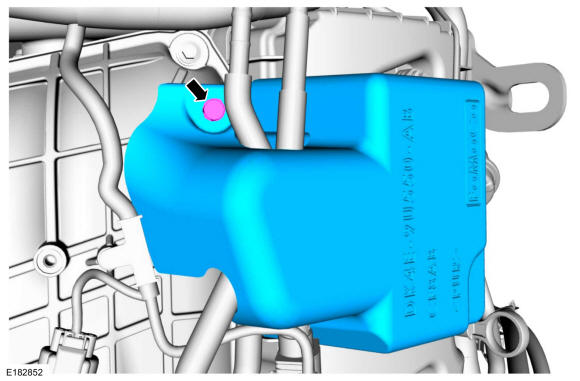

Remove the high-pressure fuel pump noise insulator retainer. Remove the high-pressure fuel pump noise insulator.

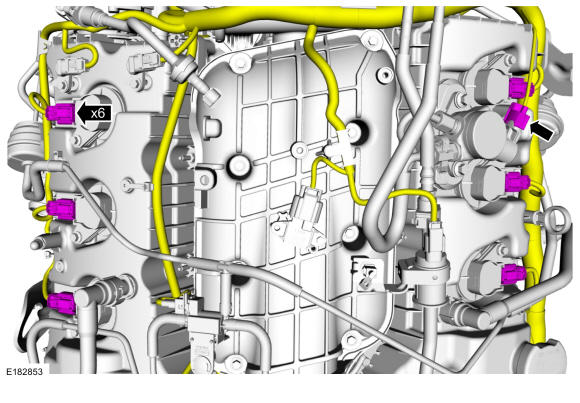

- Disconnect the ignition coil-on-plug electrical connectors and the high-pressure fuel pump electrical connector.
-
NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

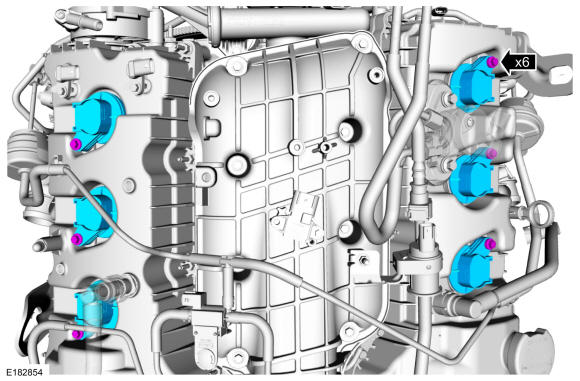

Remove the ignition coil-on-plug mounting bolts and remove the ignition coil-on-plugs.
