Removal And Installation: Radiator: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling module. Refer to: Cooling Module .
-
- Release the clamp and disconnect the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer

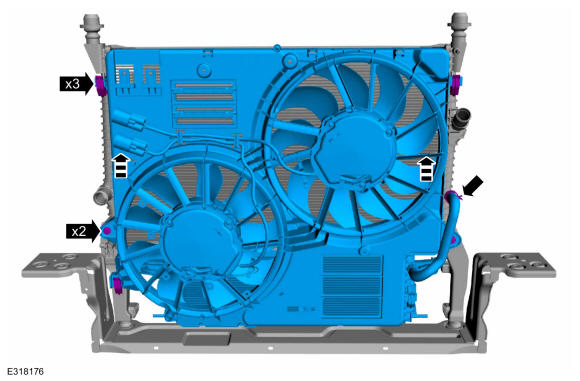

- Remove the bolts and release the clips.
Torque: 89 lb.in (10 Nm)
- Remove the cooling fan motor and shroud and auxiliary radiator as assembly.
- Release the clamp and disconnect the coolant hose.

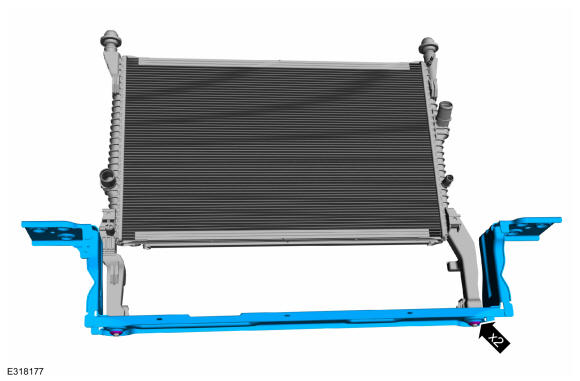

- Remove the lower radiator support.

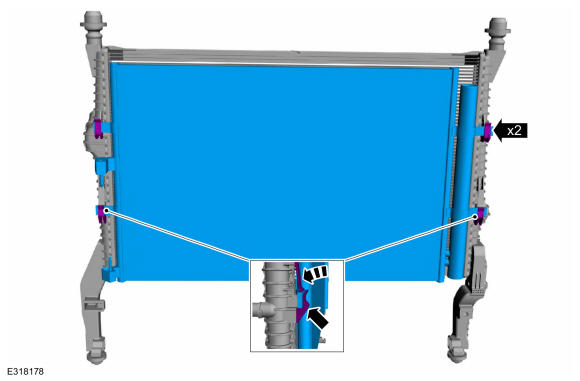

- Release the clips and remove the A/C condenser.

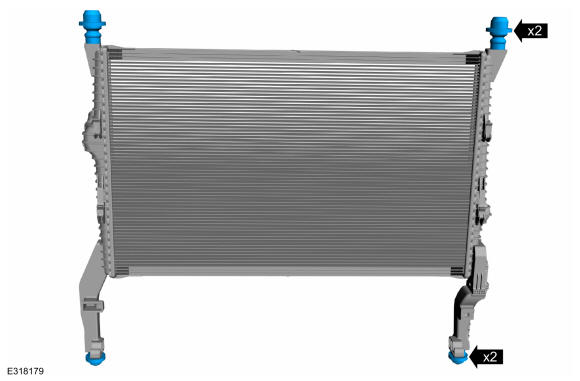

- Remove the upper and lower radiator insulators.
