Coolant Pump: Installation
WARNING: This page is about a different variant/trim than selected.
-
NOTE: This step is only necessary when installing a new component.

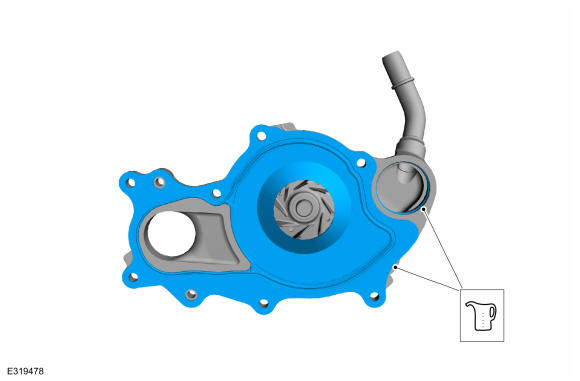

Install a new O-ring seal and gasket and lubricate it with clean engine coolant. Refer to: Specifications .
- Install the coolant pump and the bolts.
Torque:
Stage 1: 89 lb.in (10 Nm)
Stage 2: 45°
- Follow the directions to connect the quick release coupling type 25. Connect the coolant tube. Refer to: Quick Release Coupling
.
- Position the coolant pump pulley and install the bolts finger-tight.
- Install the thermostat housing. Refer to: Thermostat Housing .
- Remove the plastic from the A/C compressor belt.
- Install the accessory drive belt. Refer to: Accessory Drive Belt .
- Tighten the coolant pump pulley bolts.
Torque: 18 lb.ft (24 Nm)
- Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
