Coolant Crossover Manifold: Removal
WARNING: This page is about a different variant/trim than selected.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the intake manifold. Refer to: Intake Manifold .

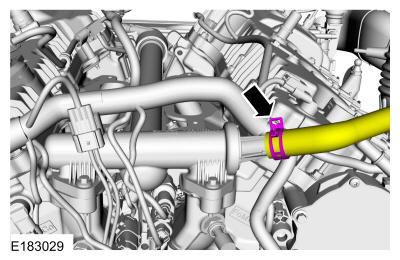

- Disconnect the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer
- Remove the bolts and the coolant outlet.
- Remove and discard the gaskets.
