Coolant Crossover Manifold: Installation
WARNING: This page is about a different variant/trim than selected.

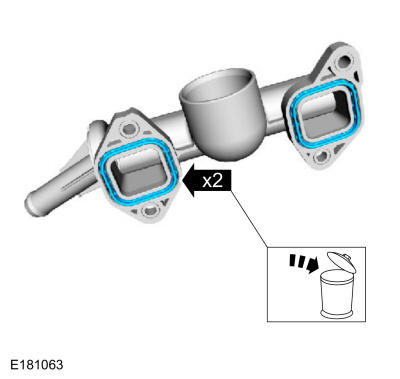

- Install new gaskets.

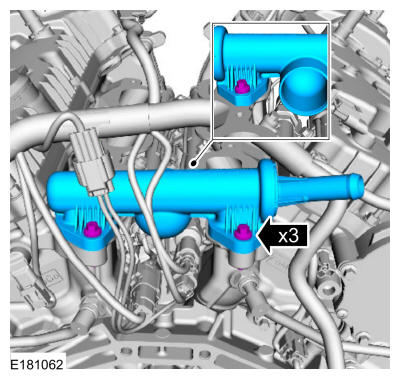

- Install the coolant crossover manifold and the bolts.
Torque:
Stage 1: 89 lb.in (10 Nm)
Stage 2: 45°
- Install the intake manifold. Refer to: Intake Manifold .
- Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
