Block Heater: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

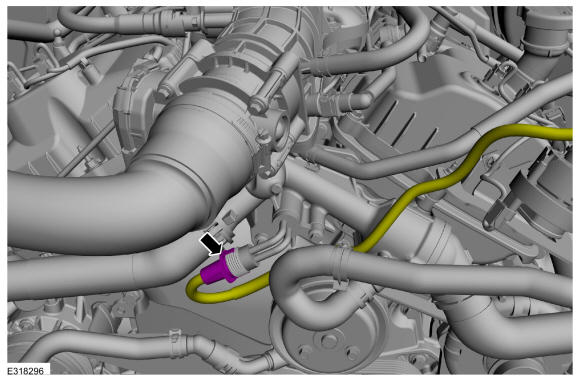

Disconnect the block heater electrical connector.

Courtesy of FORD MOTOR COMPANY

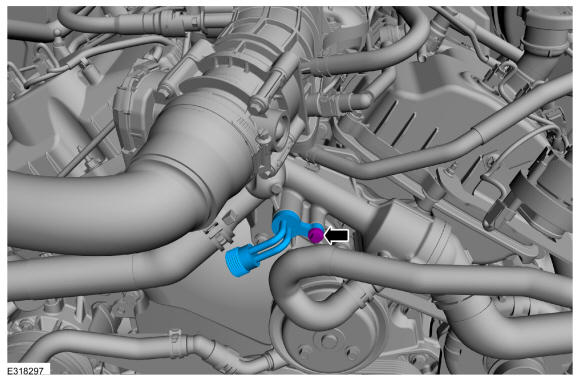

Remove the bolt and the block heater.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
