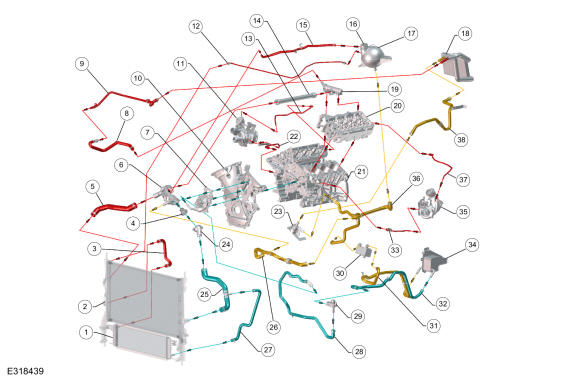

Without rear heat
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Auxiliary radiator |
| 2 | Radiator |
| 3 | Auxiliary radiator inlet hose |
| 4 | Thermostat |
| 5 | Upper radiator hose |
| 6 | Thermostat housing |
| 7 | Coolant pump |
| 8 | Heater inlet hose |
| 9 | Heater hose assembly |
| 10 | Engine front cover |
| 11 | Turbocharger |
| 12 | Radiator overflow hose |
| 13 | Turbocharger outlet hose RH |
| 14 | Coolant inlet tube |
| 15 | Air aspirator hose |
| 16 | Pressure relief cap |
| 17 | Degas bottle |
| 18 | Heater core |
| 19 | Engine coolant crossover |
| 20 | Cylinder head LH |
| 21 | Cylinder block |
| 22 | Turbocharger inlet hose RH |
| 23 | Heater pump |
| 24 | Coolant outlet connector |
| 25 | Lower radiator hose |
| 26 | Auxiliary heater outlet hose |
| 27 | Auxiliary radiator outlet hose |
| 28 | Transmission oil cooler inlet hose |
| 29 | Transmission fluid heater coolant control valve |
| 30 | Engine oil cooler |
| 31 | Engine oil cooler inlet hose |
| 32 | Transmission oil cooler inlet hose |
| 33 | Turbocharger inlet hose LH |
| 34 | Transmission oil cooler |
| 35 | Turbocharger |
| 36 | Degas bottle hose assembly |
| 37 | Turbocharger outlet hose LH |
| 38 | Heater core outlet hose |
