Turbocharger RH: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that the mating faces are clean and free of foreign material.

Lubricate the O-ring with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

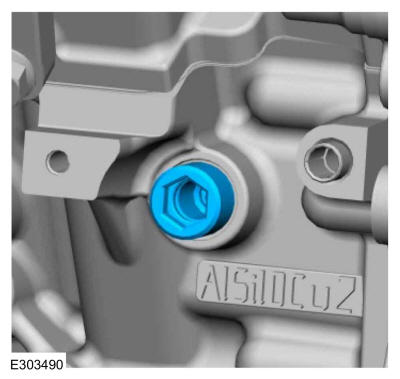

Install and tighten the turbocharger fitting and oil filter assembly.
Torque: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new O-ring seal, then lubricate with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
- Lubricate the cylinder block bore with clean engine oil.

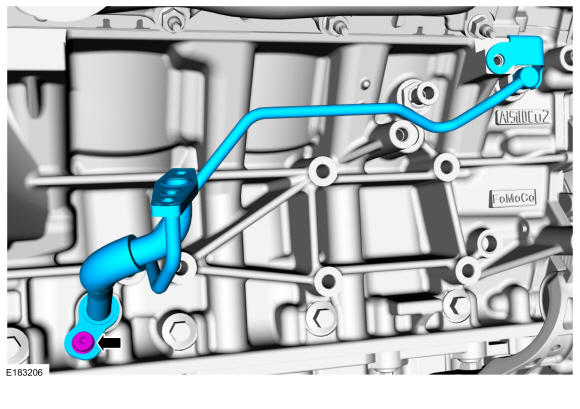

1. Install the turbocharger oil tube assembly, then install and tighten the lower bolt in the following 2 stages. Refer to: Specifications .
  Torque:

  Stage 1: 71 lb.in (8 Nm)

  Stage 2: 30°
Courtesy of FORD MOTOR COMPANY
Install the new the turbocharger exhaust flange gasket.

Courtesy of FORD MOTOR COMPANY

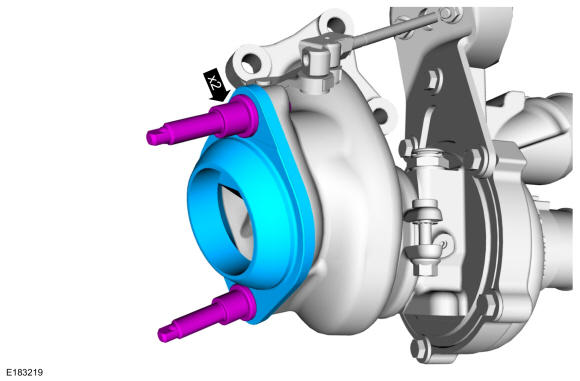

- Apply high temperature nickel anti-seize lubricant to the turbocharger exhaust flange studbolt threads prior to installation.
1. Install the turbocharger exhaust flange, then install and tighten the new studbolts.
  Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY

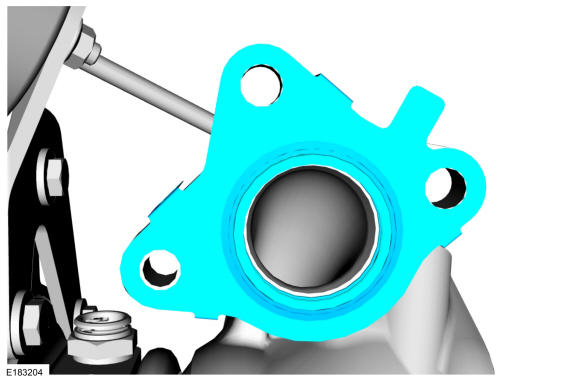

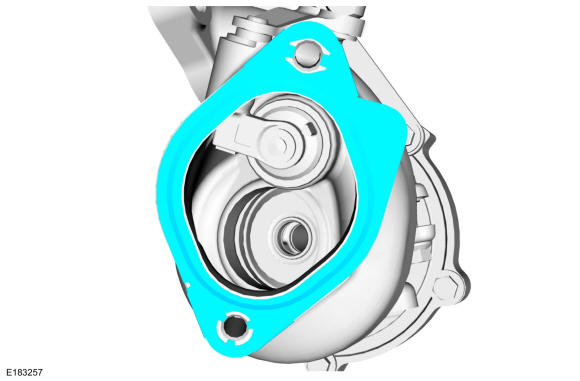

Install the new turbocharger gasket.

Courtesy of FORD MOTOR COMPANY

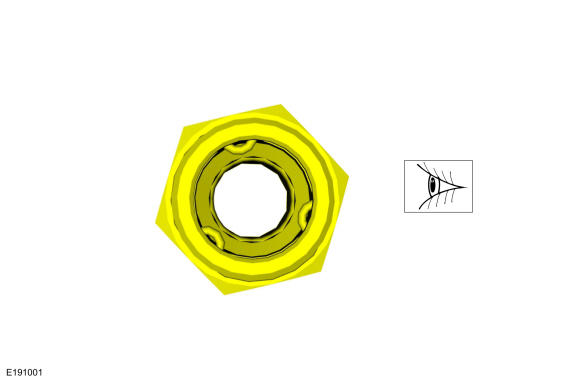

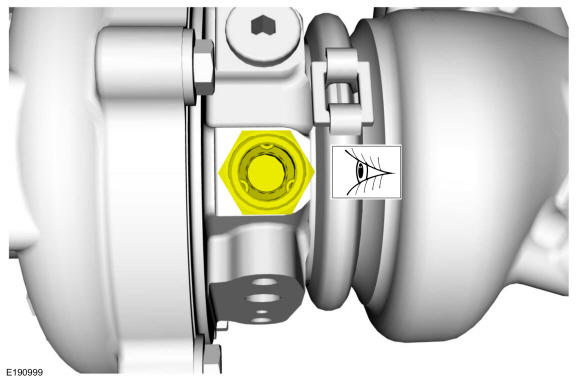

Inspect the fitting and replace as needed.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the turbocharger coolant tube.

Courtesy of FORD MOTOR COMPANY
Inspect the fitting and replace as needed.
Torque: 37 lb.ft (50 Nm)

Courtesy of FORD MOTOR COMPANY

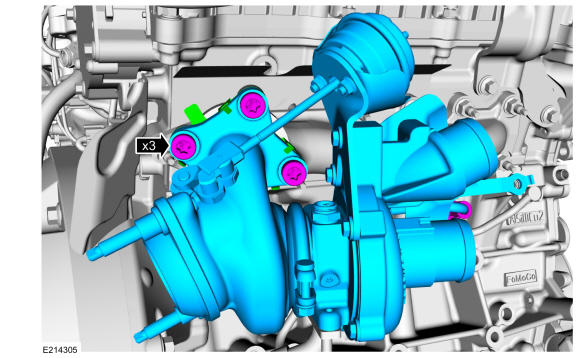

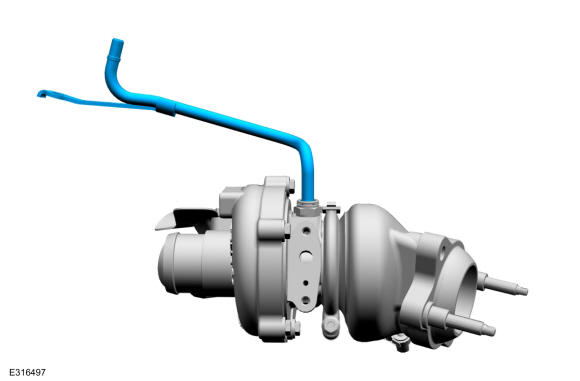

Install the new turbocharger mounting bolts, install the turbocharger coolant supply tube to the block fitting while installing the turbocharger.
Torque: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY

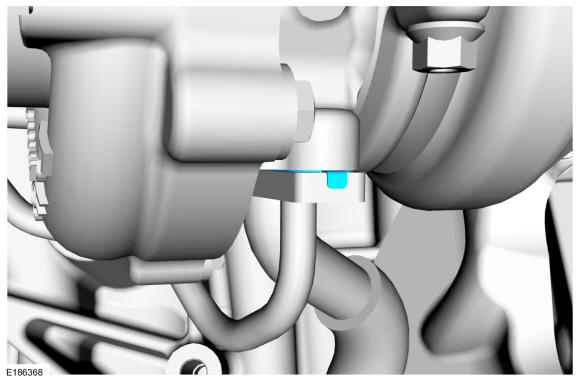

Install the new upper turbocharger oil tube assembly gasket.

Courtesy of FORD MOTOR COMPANY

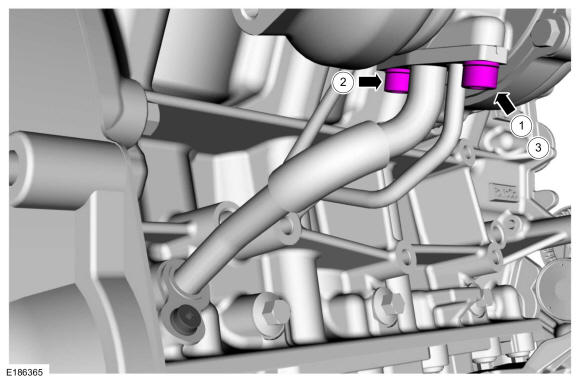

- Install the turbocharger oil tube assembly upper bolts finger tight.
1. Tighten the outer bolt.
  Torque: 44 lb.in (5 Nm)
2. Tighten the inner bolt in the following 2 stages.
  Torque:

  Stage 1: 89 lb.in (10 Nm)

  Stage 2: 30°
3. Tighten the outer bolt in the following 2 stages.
  Torque:

  Stage 1: 89 lb.in (10 Nm)

  Stage 2: 30°
Courtesy of FORD MOTOR COMPANY

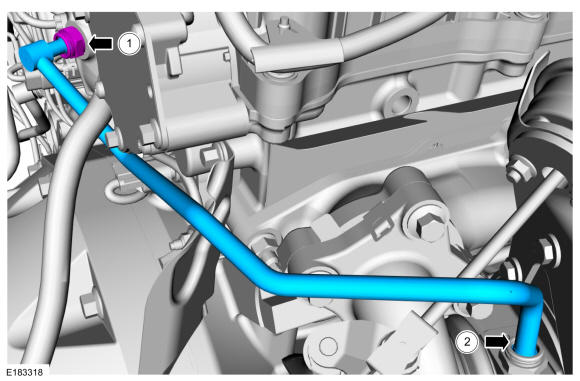

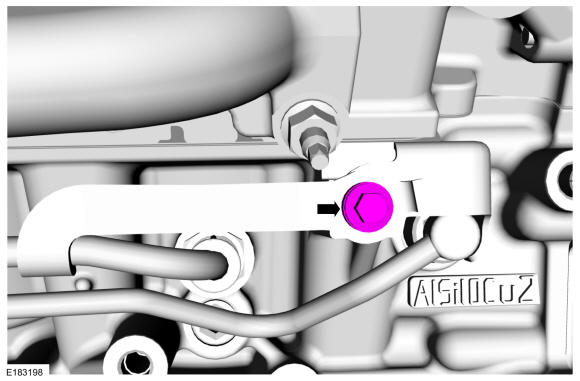

Install and tighten the bolt for the turbocharger tubes.
Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 30°

Courtesy of FORD MOTOR COMPANY

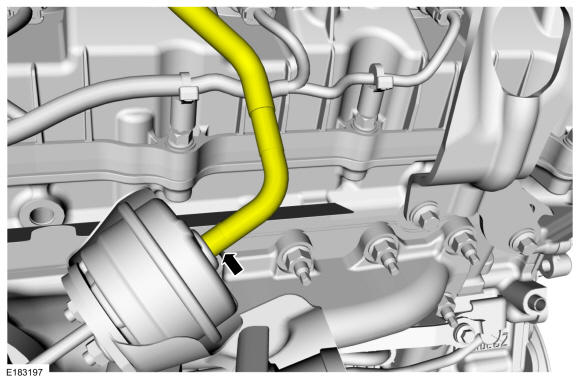

Connect the turbocharger control hose.

Courtesy of FORD MOTOR COMPANY

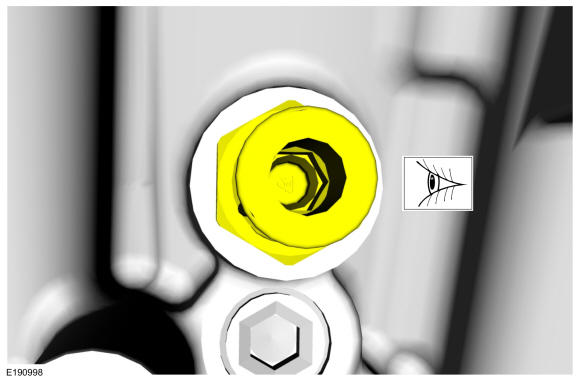

Inspect the turbocharger coolant return tube fitting and replace as needed.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Install and connect the turbocharger coolant return tube.

Courtesy of FORD MOTOR COMPANY
- Install the dual catalytic converter Y-Pipe with a new left gasket. Install the right and the left fasteners hand tight.
- Evenly tighten the new left catalytic converter flange nuts.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY
Evenly tighten the new right catalytic converter flange nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

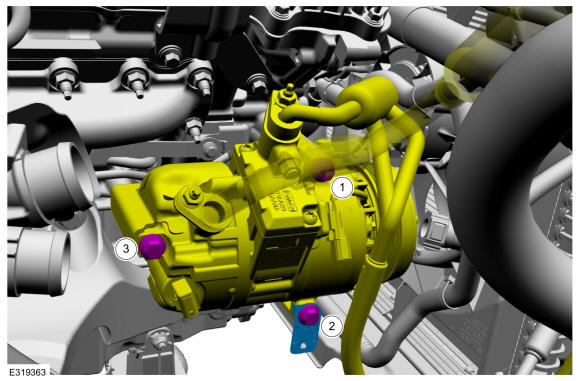

Install the air conditioning compressor, then install the bolts and wiring harness bracket the finger tight. Tighten the bolts in the sequence shown in illustration.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

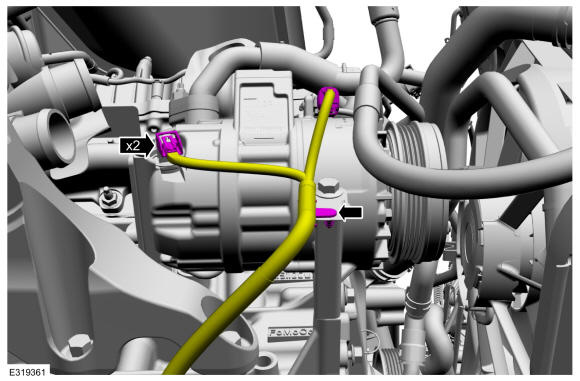

Connect the electrical connectors, then attach the harness retainer.

Courtesy of FORD MOTOR COMPANY
Install the air conditioning (A/C) compressor belt.
Install the starter motor. Refer to: Starter Motor .
Install the engine crossmember. Refer to: Engine Crossmember .
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Start and check the exhaust system for leaks.
